LPG injector MED for injection of LPG or natural gas in LPG conversion & CNG kits.
This is an old 4-holeversion!When replacing the old 4-hole version, all injectors in the vehicle must be replaced.
| Old (4-hole) | New (12-hole) |
| Yellow | grey |
| green | orange |
| black | blue |
| white | violet |

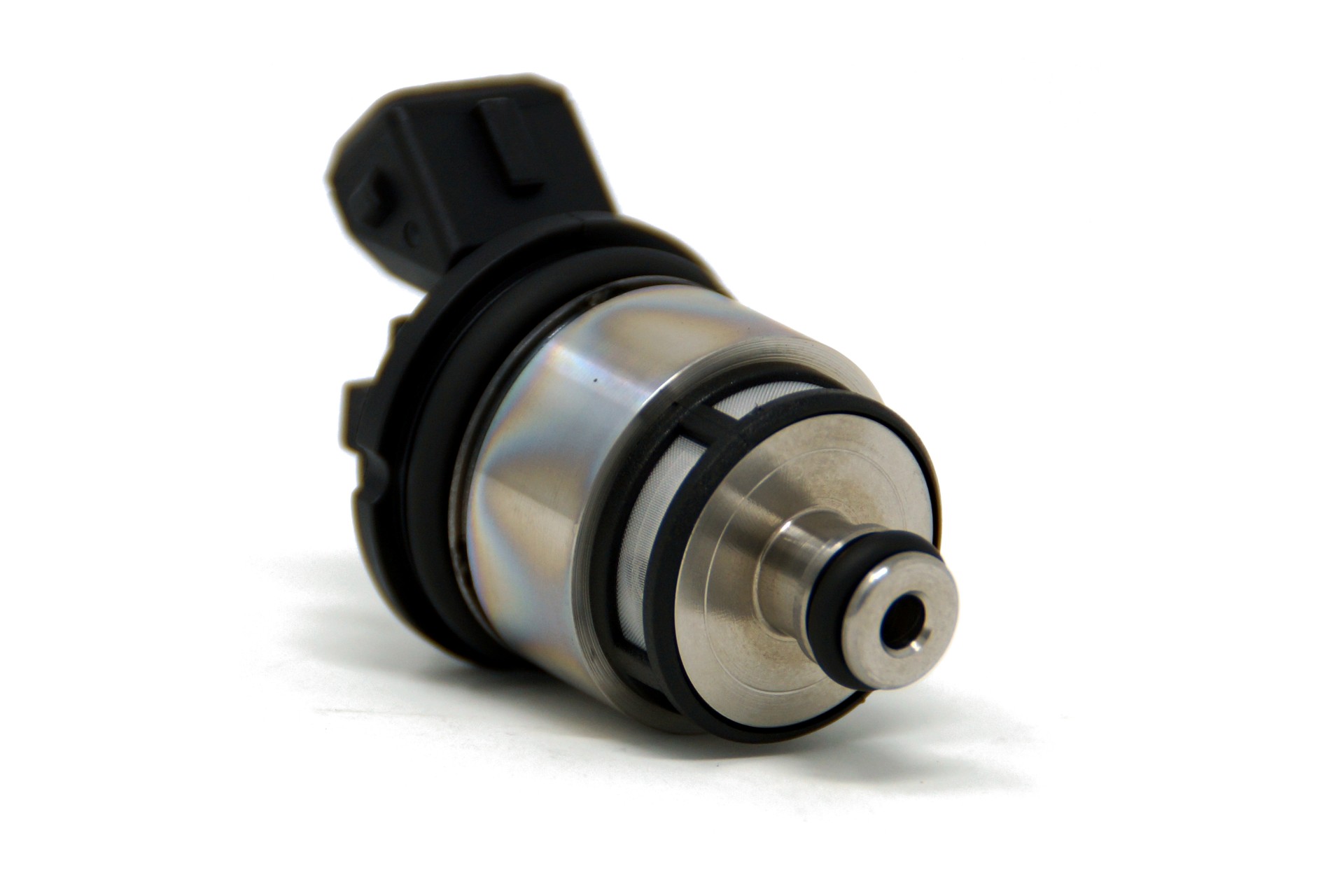

Note: The colour of the injectors can be determined by the cap at the top of the injector (black cap in the photo).
Technical data
Size: GI25-20/22/65/80 (yellow/green/black/white)
Homologation number:
Injectors: E13 67R - 010234
Rail mount: E13 67R - 010233
Safety instructions and warnings
Safety instructions for Landi Renzo MED LPG injector CNG - AMP/Bosch plug (old 4-hole version)
1) Before starting the installation, all electrical connections of the vehicle must be disconnected.
2. the installation must be carried out by trained specialists.
3. the MED injector may only be installed in well-ventilated areas.
4. the injector must be kept away from heat sources and provided with sufficient cooling.
5. the use of unauthorised spare parts can lead to serious damage to the injector and is therefore not permitted.
6. the permissible operating conditions (pressure, temperature, etc.) must be observed when operating the injector.
7. the injector must be disconnected from the power supply and completely discharged before maintenance work.
Manufacturer Contact information
Landi Renzo S.p.A.
Via Nobel, 2
42025 Corte Tegge, Cavriago (RE)
Italy
info@landi.it
