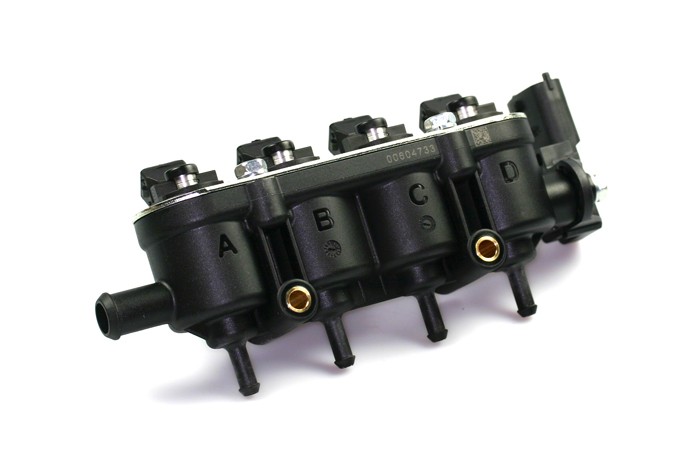

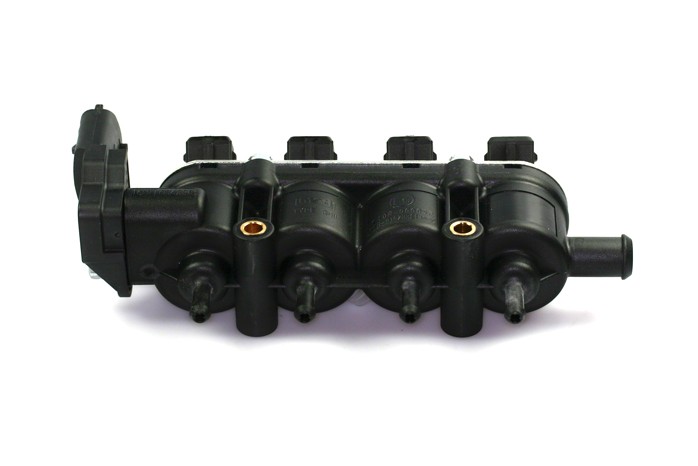

LPG injector MED with pressure sensor for injection of LPG or natural gas in LPG conversion & CNG kits.
This is an old 4-hole version!When replacing the old 4-hole version, all injectors in the vehicle must be replaced.
Old (4-hole) | New (12-hole) |
Yellow | grey |
green | orange |
black | blue |
white | violet |
Note: The colour of the injectors can be determined by the cap at the top of the injector (black cap in the photo).
Scope of delivery
The rail is supplied in individual parts. Delivery consists of:
- Landi Renzo MED injector (4x)
- Landi Renzo / MED injection rail 4 cylinders with sensor socket
- Pressure sensor 3.5 bar for Lovato / GFI / Landi Renzo systemsMED
- cover with screws for injection rail 4 cylinders
Technical data
Size: GI25-20/22/65/80 (yellow/green/black/white)
Homologation number:
Injectors: E13 67R - 010234
Rail mount: E13 67R - 010233
Safety instructions and warnings
Safety instructions for Landi Renzo injector MED LPG CNG 4 cylinder with pressure sensor (old 4-hole version)
- The injector may only be installed and commissioned by qualified specialists.
- Before installation, all national and regional safety regulations and regulations for handling liquid and/or natural gas must be observed.
- The injector must be installed in a well-ventilated area and must not be installed near heat sources or flammable materials.
- It is important to ensure that all electrical components are correctly connected and that there are no damaged cables or plug connections.
- Before installation, the injector must be checked for damage or contamination.
- The injector must be serviced regularly to ensure that it is working properly.
- If there are any signs of malfunctions or problems, the injector must be replaced immediately or checked by qualified specialists.
- It is important to ensure that the injector is only operated with LPG or CNG as recommended by the manufacturer.
Manufacturer contact information
Landi Renzo S.p.A.
Via Nobel, 2
42025 Corte Tegge, Cavriago (RE)
Italy
info@landi.it
