- Product description

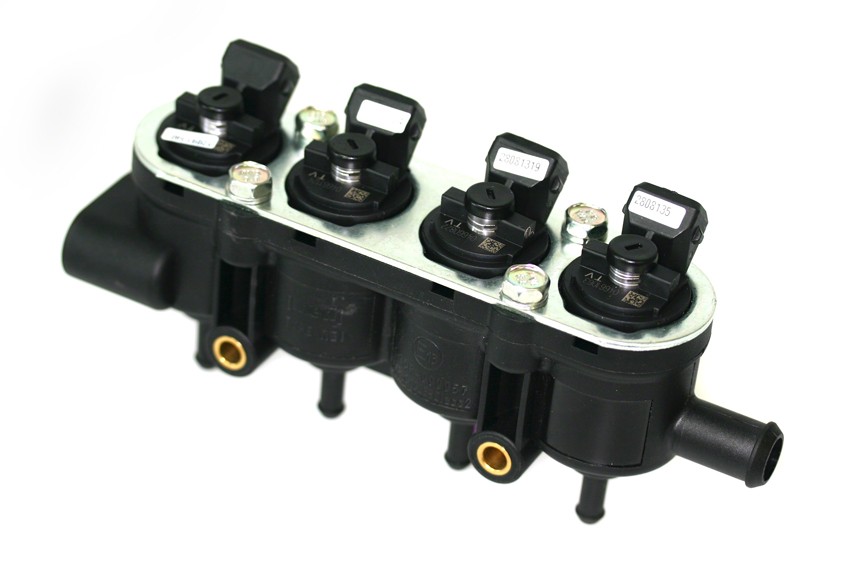

LPG injector MED without pressure sensor for injection of LPG or natural gas in LPG conversion & CNG kits.
This is an old 4-holeversion!When replacing the old 4-hole version, all injectors in the vehicle must be replaced.
Old (4-hole) | New (12-hole) |
Yellow | grey |
green | orange |
black | blue |
white | violet |
Note: The colour of the injectors can be determined by the cap at the top of the injector (black cap in the photo).
Scope of delivery
The rail is supplied in individual parts. Delivery consists of:
- Landi Renzo MED injector (4x)
- Landi Renzo / MED injection rail 4 cylindersMED
- cover with screws for injection rail 4 cylinders
Technical Data
Size: GI25-80 (white cap) = from 27.50 KW/cylinder
Homologation number:
Injectors: E13 67R - 010234
Rail mount: E13 67R - 010233
Safety instructions and warnings
Safety instructions for Landi Renzo injector MED LPG CNG 4 cylinder GI25-80 WHITE without pressure sensor (old 4-hole version)
- The injector may only be installed by qualified personnel in accordance with the manufacturer's instructions.
- The injector must not be forcibly opened or dismantled.
- All national and local regulations and the manufacturer's instructions must be carefully followed during installation.
- Only original spare parts and accessories from the manufacturer may be used.
- The injector must be serviced regularly to ensure proper function and safety.
- The injector must be completely drained before maintenance or repair.
- All relevant safety regulations and provisions that apply to the operation of LPG and CNG systems must be observed.
- The manufacturer's instructions for the proper operation of the injector must be followed exactly.
- If problems or malfunctions occur, the injector must be checked and serviced by qualified personnel.
- The injector must not be operated if it is damaged or leaking.
Manufacturer contact information
Contact manufacturer
Landi Renzo S.p.A.
Via Nobel, 2
42025 Corte Tegge, Cavriago (RE)
Italy
info@landi.it
