- Product description

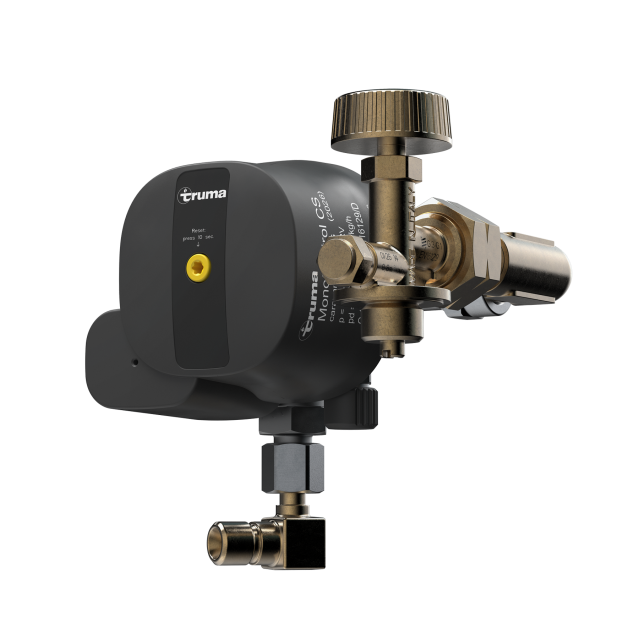

The Truma MonoControl CS R is a safety gas regulator with an integrated crash sensor for CAMPINGAZ R 907 and R 904 gas cylinders. It reliably reduces the cylinder pressure to the operating pressure of the gas appliances. In the event of an accident, the crash sensor immediately cuts off the gas supply and prevents uncontrolled gas leakage. This means the gas cylinder can remain open even whilst the vehicle is in motion. If the sensor has been triggered by severe vibrations, this is indicated by the yellow reset button; it can be easily reset by pressing it in fully. The pre-assembled regulator, which has been tested for leaks, also allows for tool-free cylinder replacement and quick installation, even in compact gas lockers.
- Gas type: butane
- Inlet pressure: 0.3–7.5 bar
- Output pressure: 30 mbar
- Regulator capacity: max. 1.5 kg/h
- Cylinder thread: G.3 (M16 x 1.5)
- Regulator outlet on angle connection: H.4 (G 1/4 LH)
- Crash sensor trigger value: 4.0 g ± 1.0 g
- Operating temperature: -20 °C to +50 °C
- Weight: 770 g
Contents: MonoControl CS R, operating and installation instructions, and a yellow sticker.
