CAMPKO refillable gas bottle 30 litres with 80% multivalve (M12x1)

Product description
Media & Downloads
Accessories

The CAMPKO refillable gas bottle made of solid steel was developed for permanent installation in motorhomes, camper vans or caravans. It has a high safety standard and is certified in accordance with ECE 67R-01. The CAMPKO refillable gas cylinder is installed in the gas locker and thus serves as a refillable camper propane tank. Thanks to its ECE 67R-01 homologation, it is not subject to a 10-year TÜV test period.

It can be installed individually or as a multi-bottle system.

The cylinder collar is removable, but in most cases the open design of the cylinder collar offers enough space to fit a gas regulator or a gas filter directly to the refillable gas cylinder.

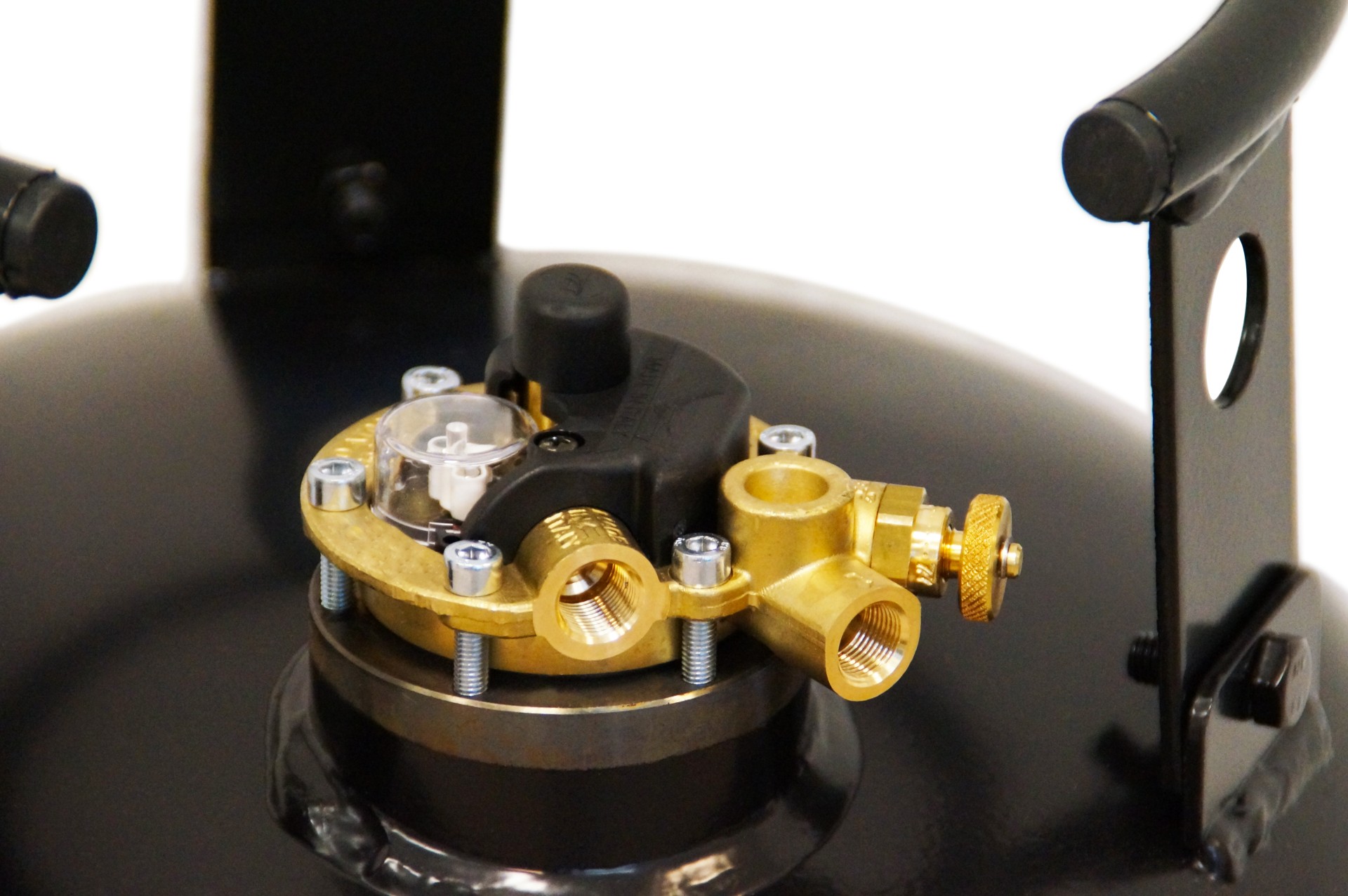

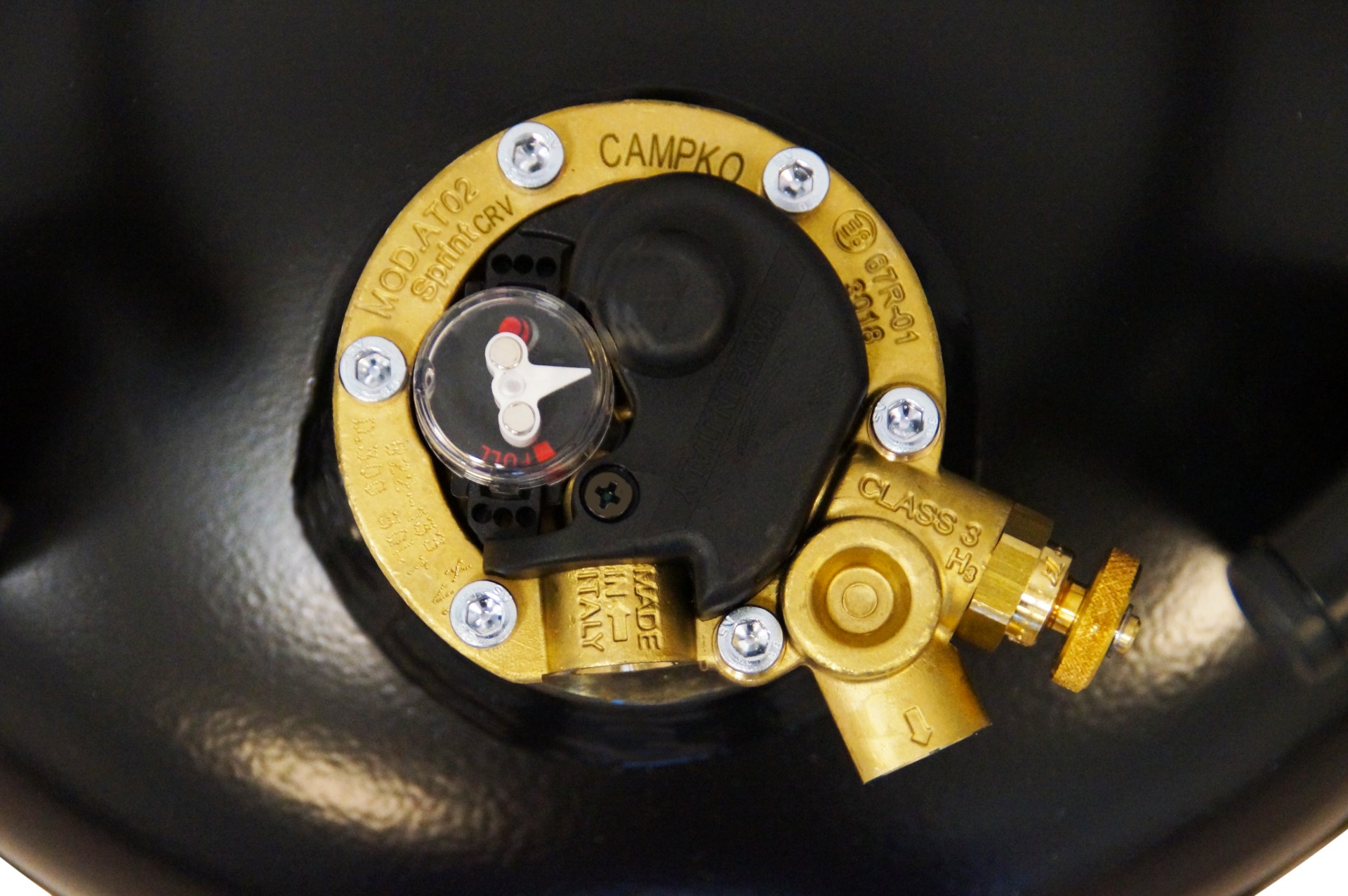

The CAMPKO refillable gas bottle is equipped with a multivalve with 80% filling stop and overpressure safety valve. It is available in sizes 15L - 36L.

Available connections

Inlet side or filling connection

3/4" UNF thread for the connection of an LPG filling hose
M12 internal thread for compression fitting on copper or steel pipework

Outlet side or withdrawal connection

W21.8x1/14" LH - connection to G.12 (also known as small cylinder connection in Germany)
W21.8x1/14" LH without seal - connection to G.2 for France and Switzerland
M12 female thread for compression fitting on copper or steel pipework

Technical specifications

material	steel
Service life	Unlimited
80% filling stop	included
Safety valve	27 bar pressure relief valve
Empty weight	16.00 kg
Filling & removal	separate
Full level indicator	available
Remote display	possible
Input	M12x1
output	M12x1
Volume (gross)	30.00 litres
Volume (net)	24.00 litres
Total height	585 mm
Height without collar	570 mm
diameter	300 mm diameter
Homologation	ECE 67R-01
