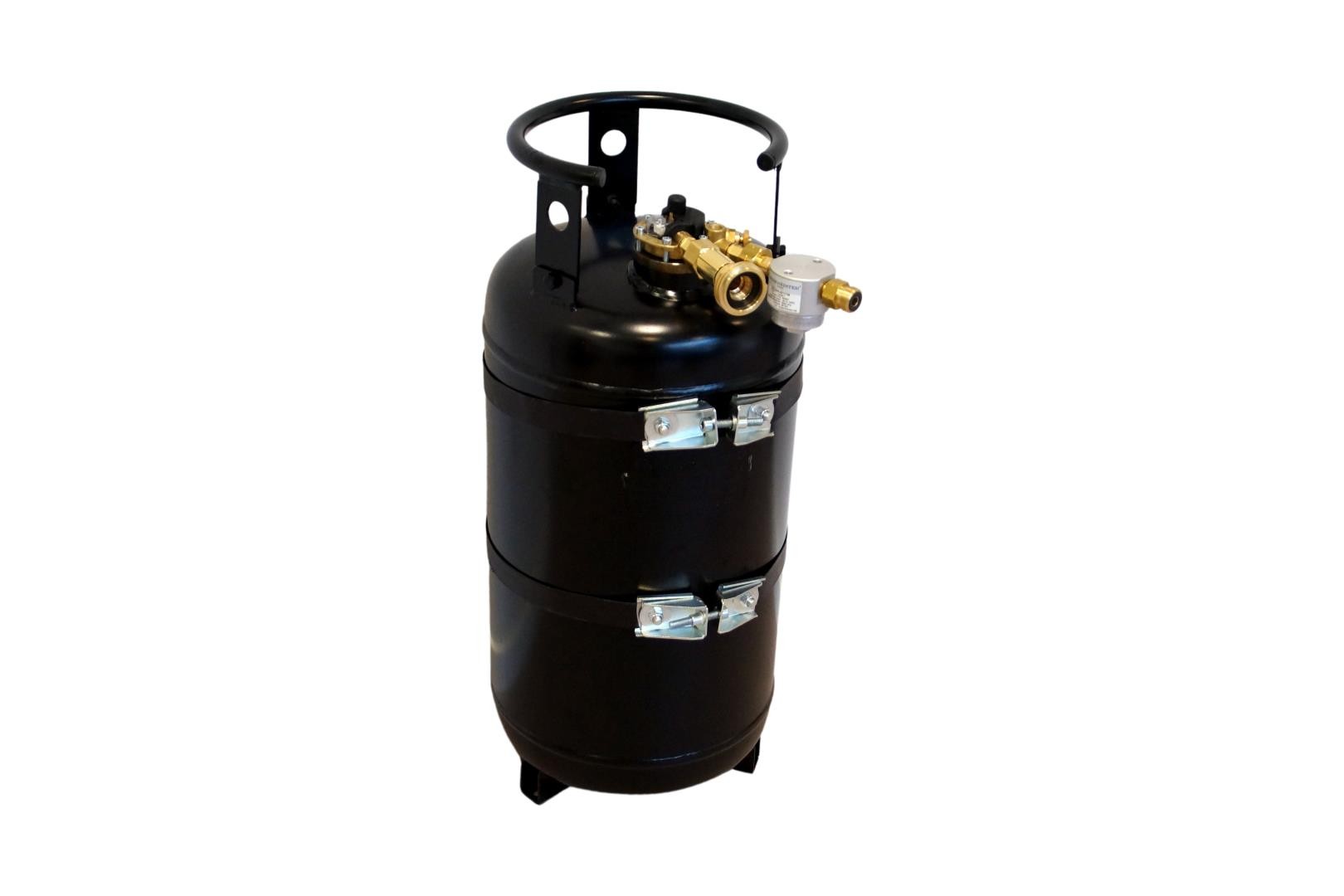

The CAMPKO refillable gas bottle made of solid steel was developed for permanent installation in motorhomes, camper vans or caravans. It has a high safety standard and is certified in accordance with ECE 67R-01. The CAMPKO refillable gas cylinder is installed in the gas locker and thus serves as a refillable camper propane tank. Thanks to its ECE 67R-01 homologation, it is not subject to a 10-year TÜV test period.

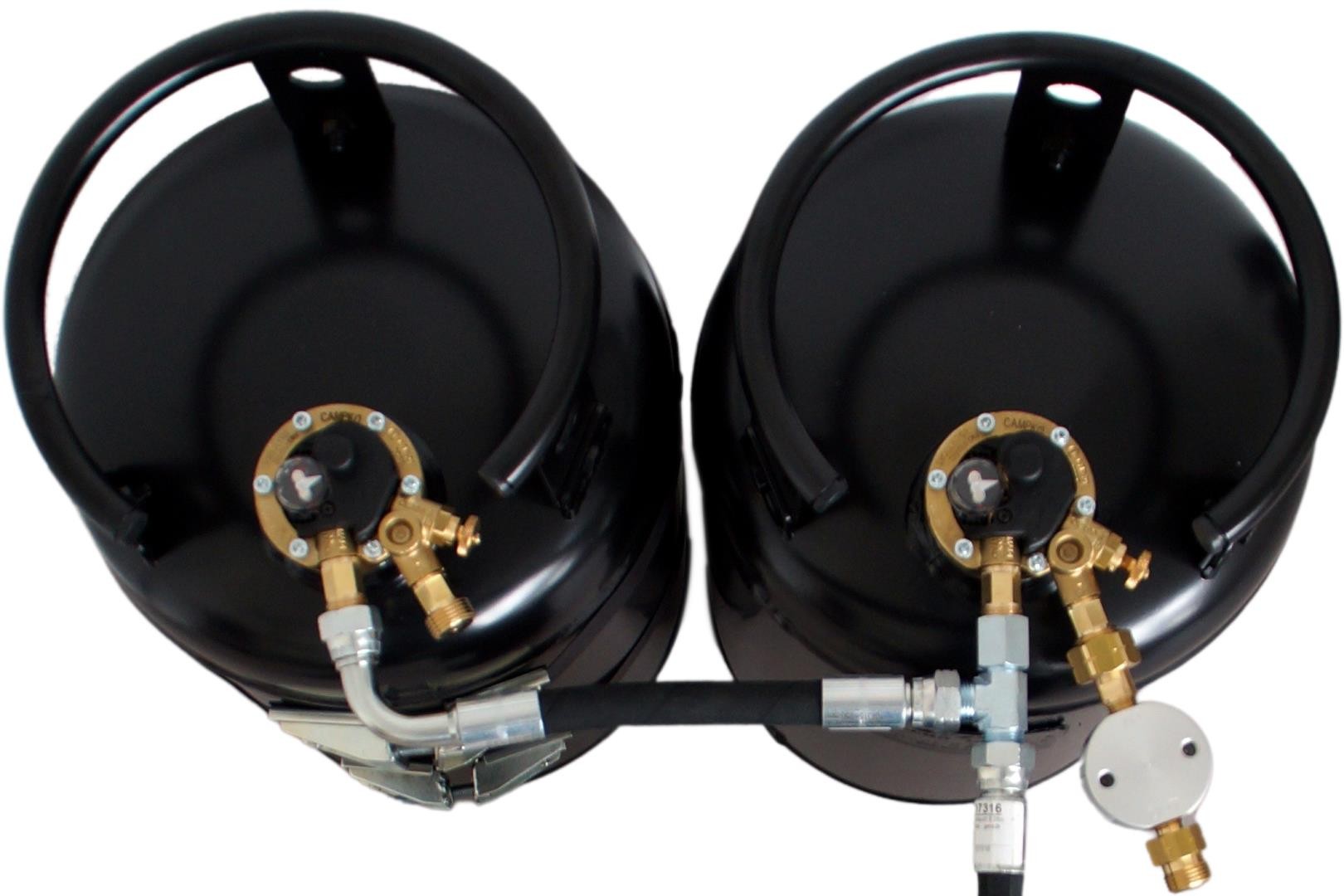

It can be installed individually or as a multi-bottle system.

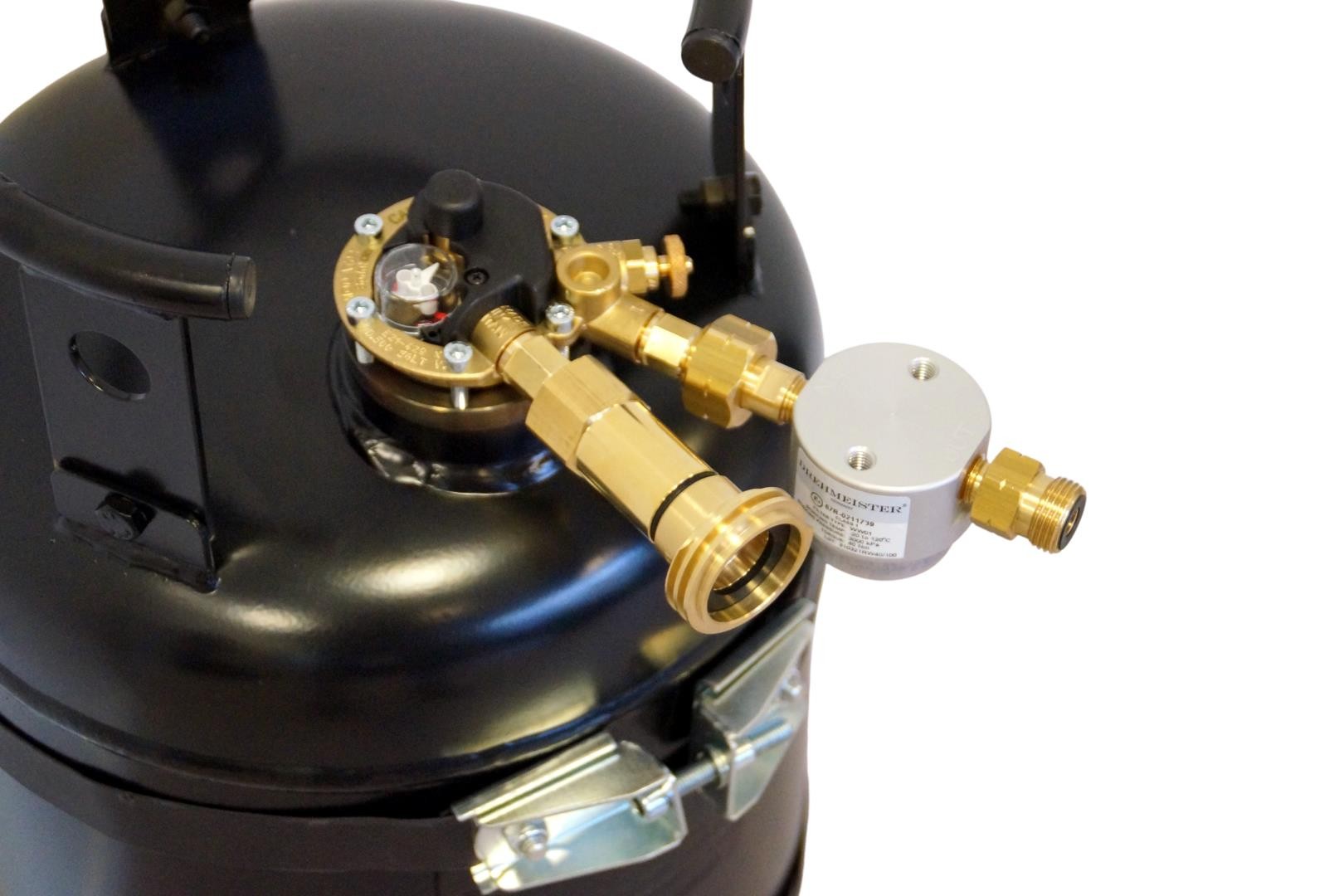

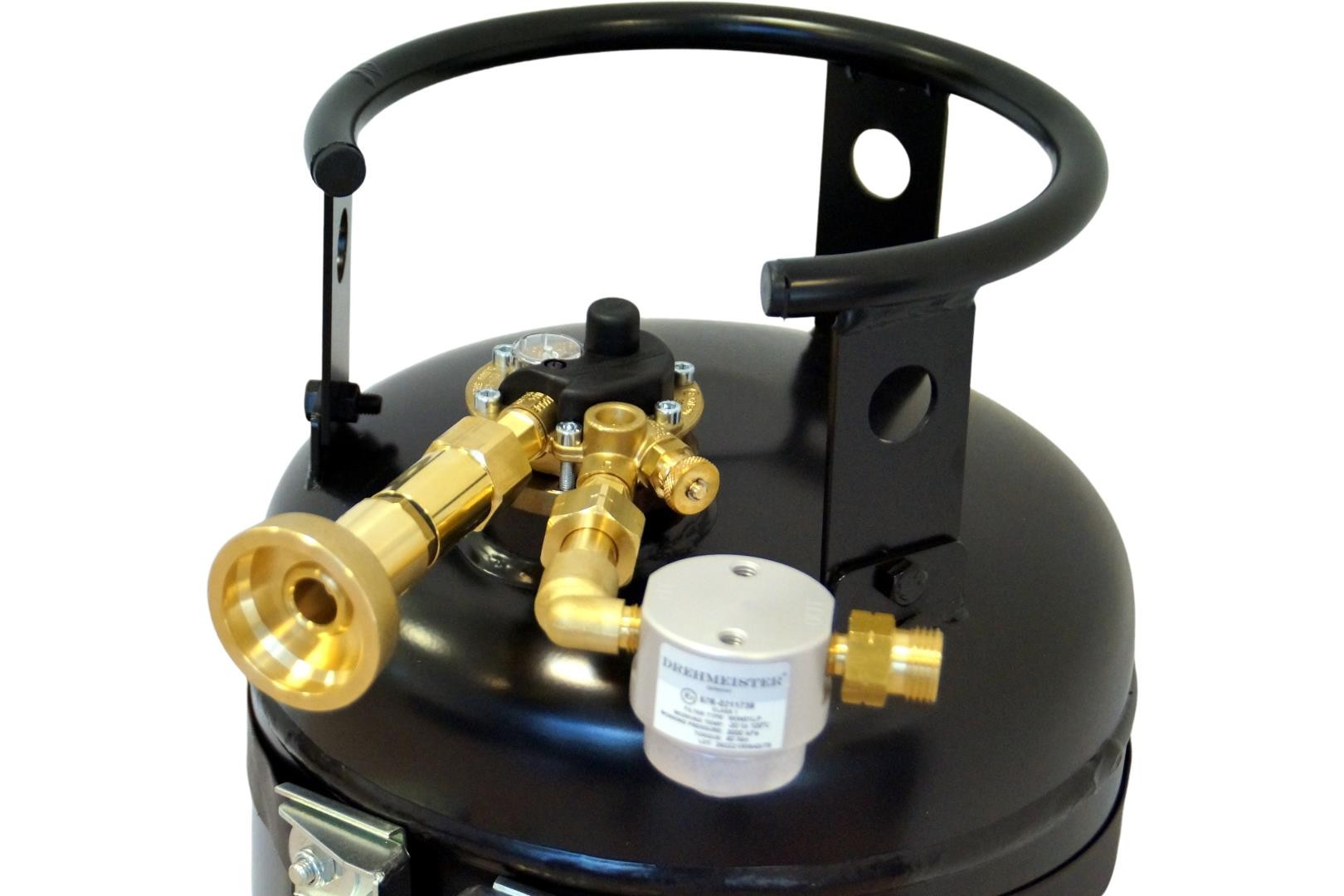

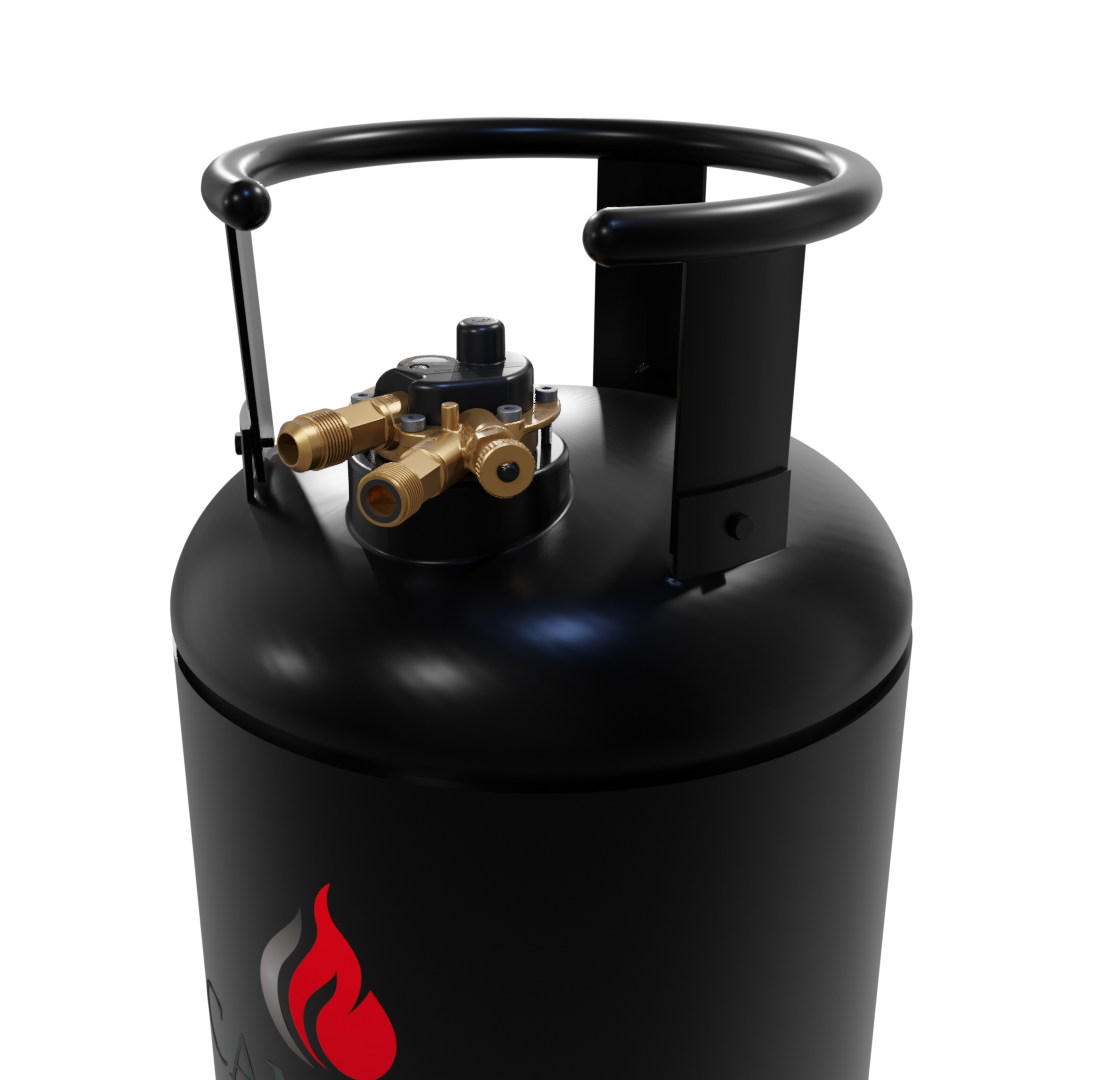

The cylinder collar is removable, but in most cases the open design of the cylinder collar offers enough space to fit a gas regulator or a gas filter directly to the refillable gas cylinder.

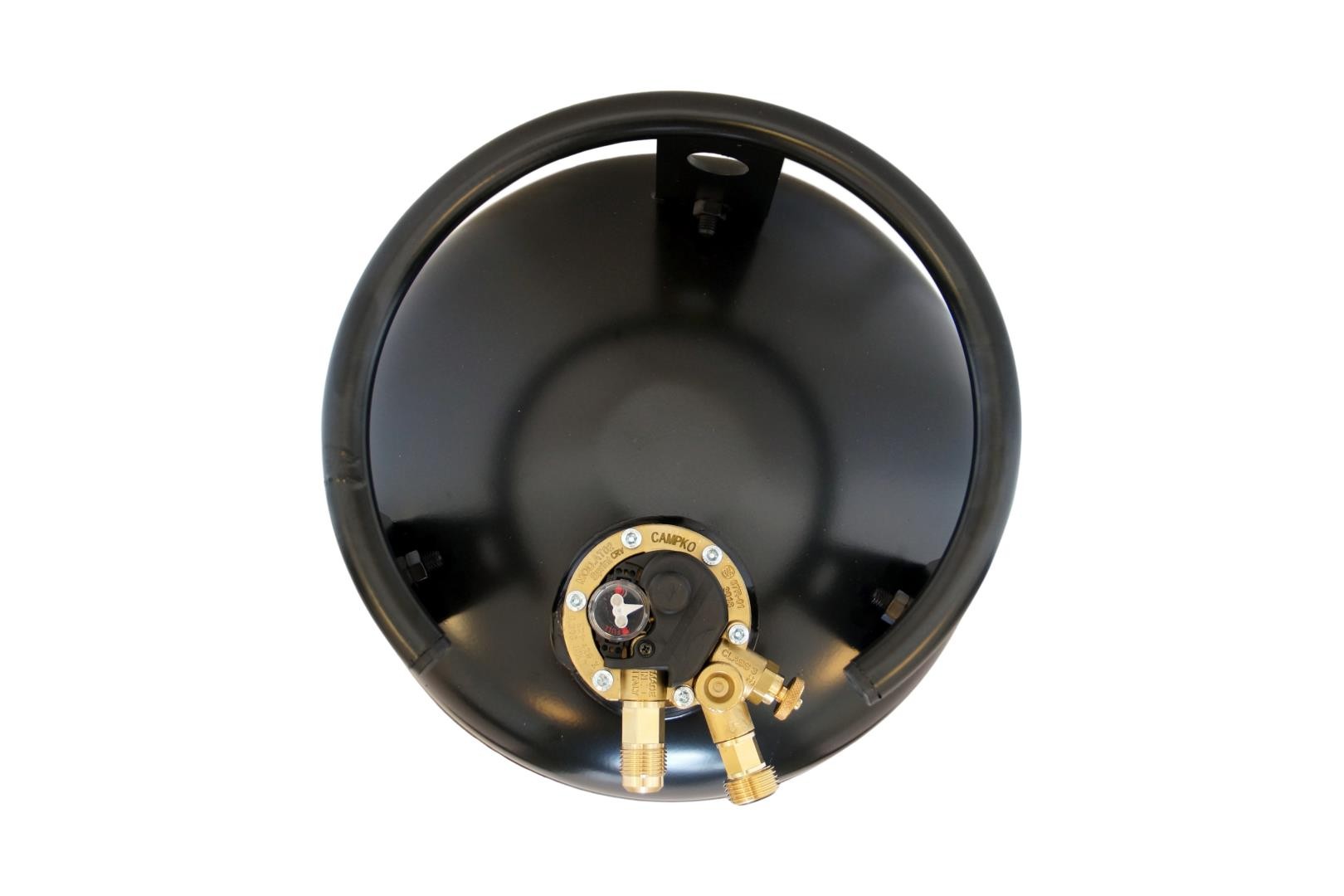

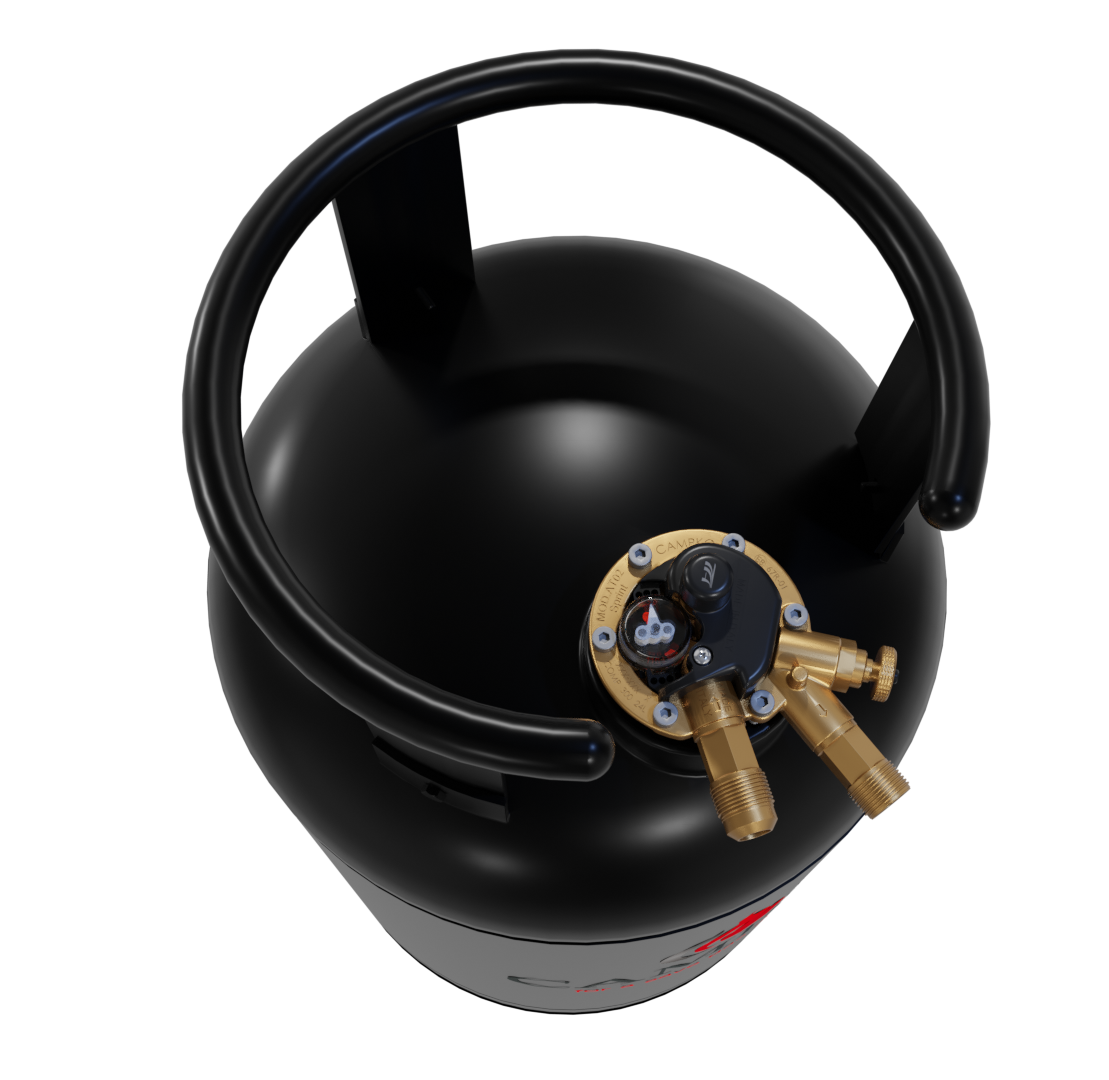

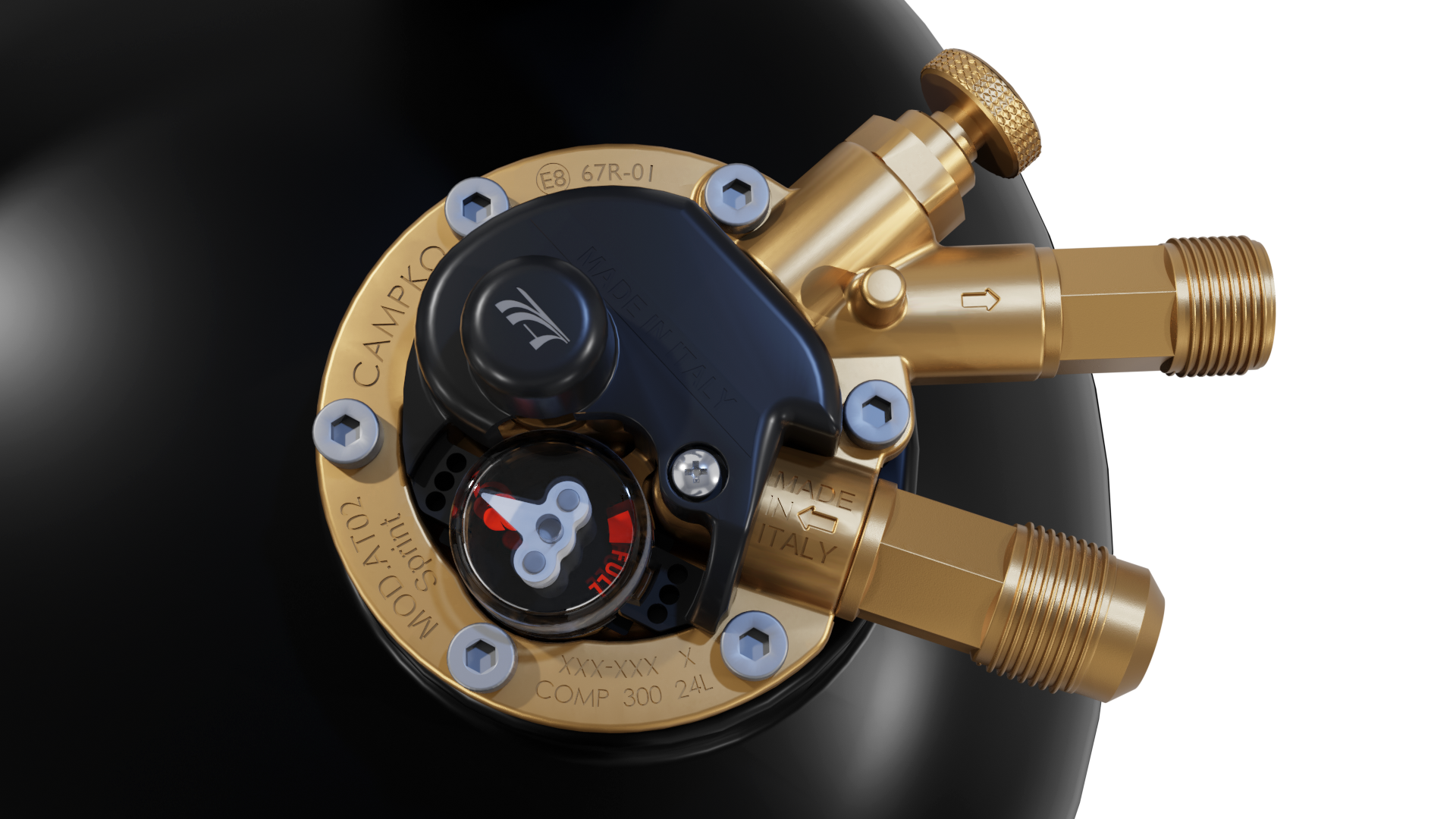

The CAMPKO refillable gas bottle is equipped with a multivalve with 80% filling stop and overpressure safety valve. It is available in sizes 15L - 36L.
Available connections
Inlet side or filling connection
- 3/4" UNF thread for the connection of an LPG filling hose
- M12 internal thread for compression fitting on copper or steel pipework
Outlet side or withdrawal connection
- W21.8x1/14" LH - connection to G.12 (also known as small cylinder connection in Germany)
- W21.8x1/14" LH without seal - connection to G.2 for France and Switzerland
- M12 internal thread for compression fitting on copper or steel pipework
Material | Steel |
Inspection interval | unrestricted |
80% filling stop valve | included |
Safety valve | 27 bar pressure relief valve |
Tare weight | 13,00-16,00 Kg |
Filling & extraction | separate |
Full level indicator | included |

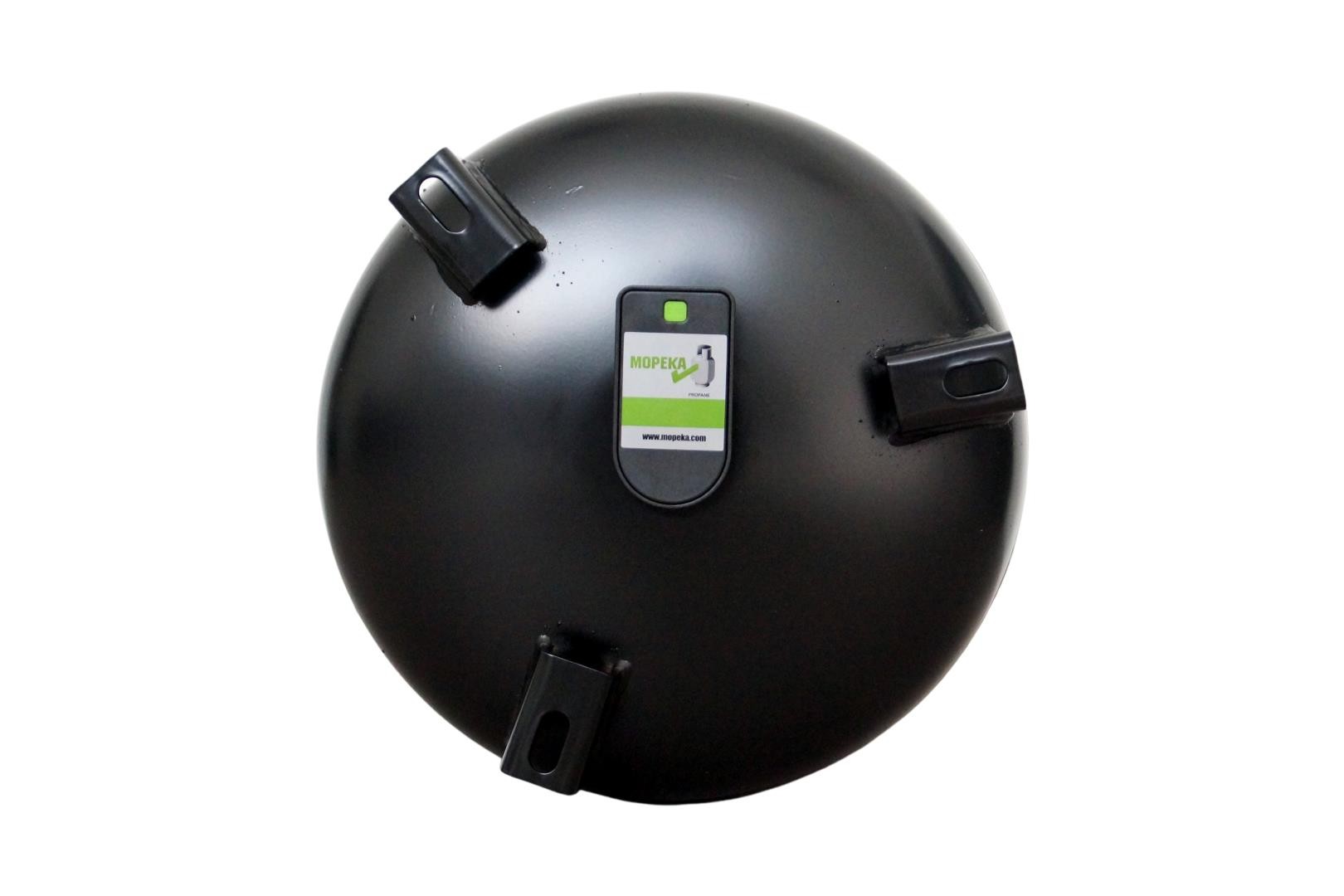

Remote level indicator | retrofitting possible |
Inlet | 1/2" external thread |
Outlet | EN15252: G.12 = W21,8 x 1/14 LH |
Gross filling weight | 15,00-36,00 liters |
Net filling weight (80%) | 12,00-28,80 liters |

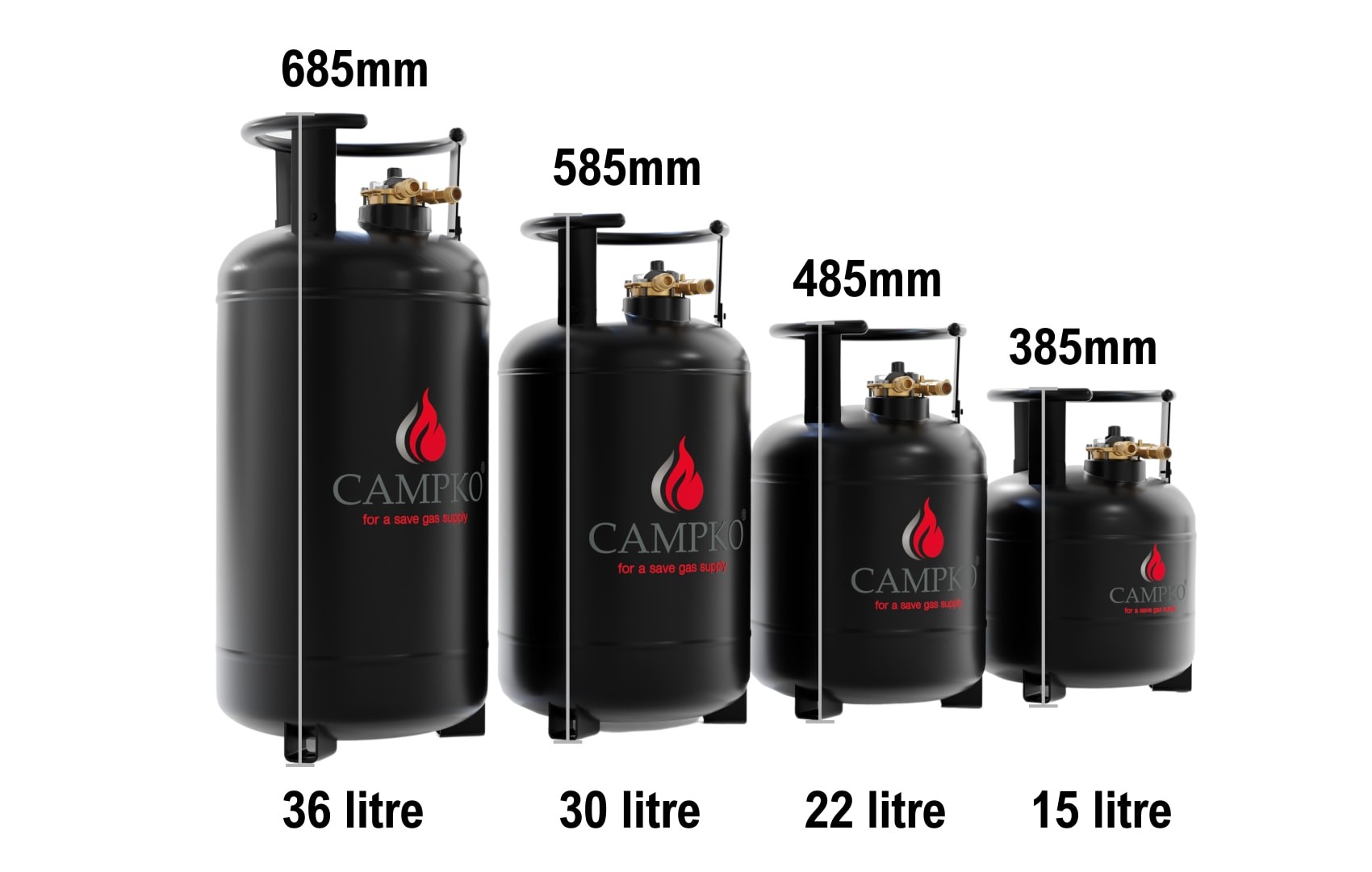

Height | 385-685 mm |
Height (without collar) | 370-670 mm |
Diameter | 300 mm |
Homologation | ECE 67 R |
