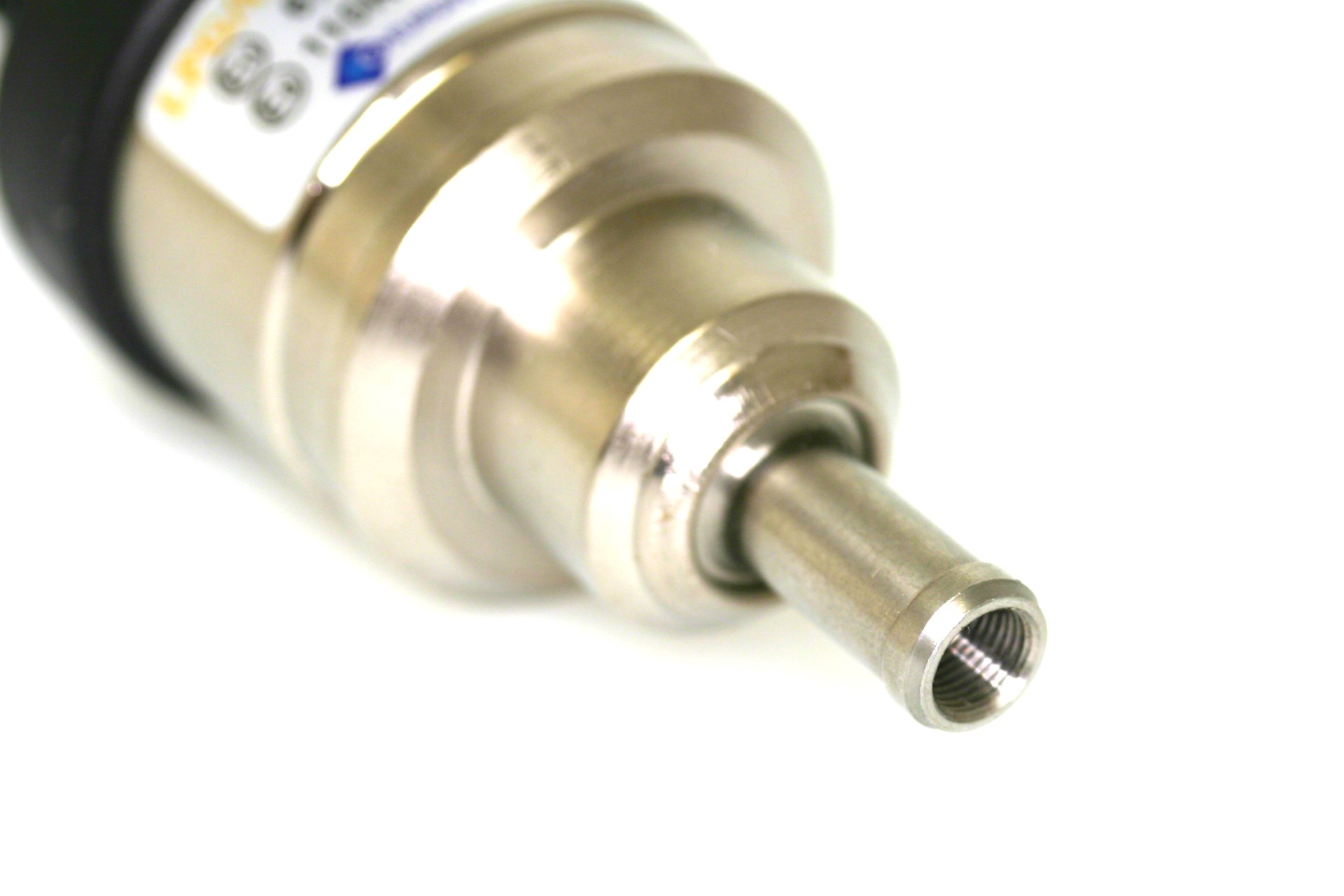

LPG injector H2001 from HANA for KME, STAG and other LPG conversion & CNG kits for the injection of LPG or natural gas fuel.
A distinction is made between the golden UNI type A injectors, where the flow rate can be reduced to type B/C/D by means of screw-in nozzles, and the blue type A+ injectors, which are mainly used in more powerful engines. Please refer to the technical details for precise information on the performance ranges.
| Working pressure | 1.2 bar |
| Maximum pressure | 4.0 bar |
| Operating voltage | 12V DC |
| Gas inlet | ø12 mm |
| Gas outlet | ø6 mm |
| Temperature range | - |
| Resistance | 1.9 Ohm |
| Minimum injection time | - |
| Open | 2.36 ms |
| Close | 1.2 ms |
| Homologation number | E4 67R-01 0213 |
Power range |
| Type of nozzle / colour (old) | Cylinder power in KW at 1.0 bar pressure |
| Type D (violet) = 1.9 mm nozzle | 11-16 |
| Type C (black) = 2.1mm nozzle | 15-22 |
| Type B (red) = 2.4 mm nozzle | 21-32 |
| Type A (green) = golden injector (no nozzle) | 25-35 |
| Type A+ (blue) = blue injector (no nozzle) | from 29 |
