LPG-FIT Fitting Set, angled, 3/4 -> XD-5 = 10 mm (FNF-K)
LPG-FIT Fitting Set, angled, 3/4 -> XD-5 = 10 mm (FNF-K)
LPG-FIT Fitting Set, angled, 3/4 -> XD-5 = 10 mm (FNF-K)
LPG-FIT Fitting Set, angled, 3/4 -> XD-5 = 10 mm (FNF-K)
LPG-FIT Fitting Set, angled, 3/4 -> XD-5 = 10 mm (FNF-K)
LPG-FIT Fitting Set, angled, 3/4 -> XD-5 = 10 mm (FNF-K)

LPG-FIT Fitting Set, angled, 3/4" -> XD-5 = 10 mm (FNF-K)

Article no.: 108947
Manufacturer: LPG-FIT

Offer is exclusively for commercial customers. Prices are only visible after login.

  • Product description
  • Accessories

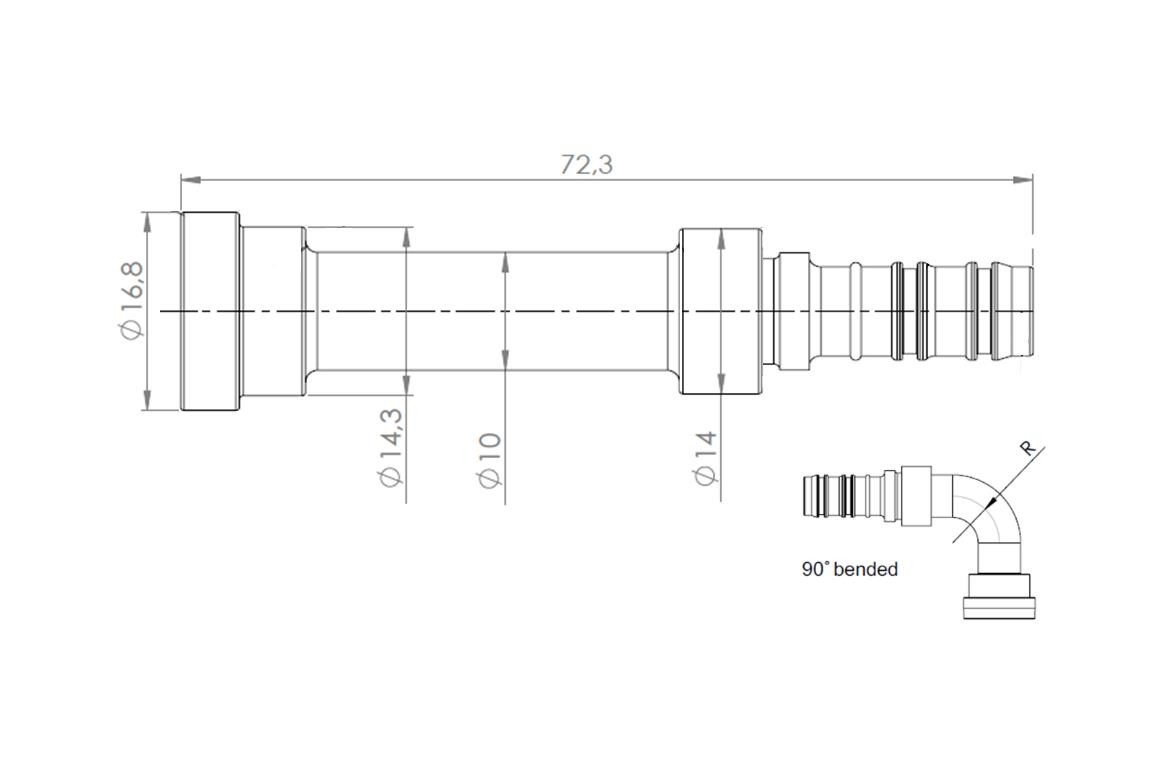

LPG-FIT 90° refuelling fitting for XD-5 hose, 3/4 UNF (FNF-K)

This fitting connects an LPG-FIT XD-5 hose to the filling connection of an LPG tank or a refillable gas cylinder with a 3/4 UNF inlet connection. The 90° angled design allows the hose to be routed to the side of the container and is particularly suitable where space is limited.

Contents

  • 1 x LPG-FIT fitting set FNF-K for XD-5 hose, 90° angled

Technical Specifications

  • Manufacturer: LPG-FIT / Solution-Fit B.V.
  • Type: FNF-K
  • Design: 90° angled
  • Hose connection: for LPG-FIT XD-5 hose

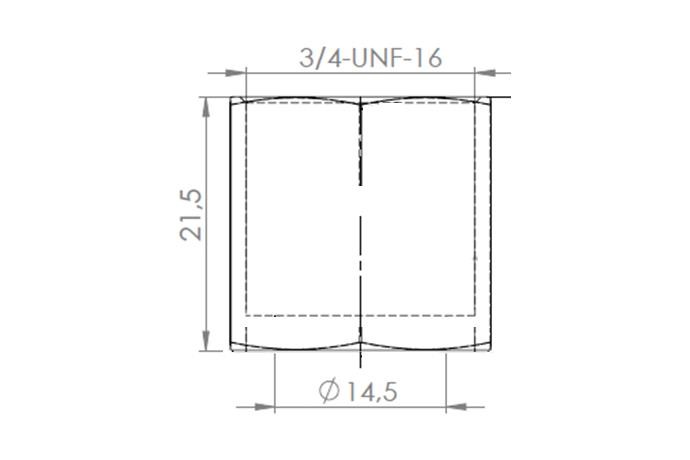

  • Tank-side connection: for 3/4 UNF inlet connection
  • Intended use: Connecting the filling hose to LPG tanks and refillable gas cylinders



Safety and warning notices
  • Installation must only be carried out by qualified personnel with experience in handling liquefied petroleum gas systems. The manufacturer’s installation instructions must be followed.
  • Before installation, check all components to ensure they are in perfect condition and use suitable tools.
  • Use the fitting exclusively for its intended purpose and within the operating limits specified by the manufacturer.
  • After installation and as part of regular inspections, check the connections to ensure they are secure and leak-free.
  • Do not continue to use damaged components; replace them immediately. Carry out maintenance work in accordance with the manufacturer’s instructions.
  • Store in a dry and well-ventilated place. Protect from direct sunlight, extreme temperatures and corrosive substances.
  • Keep out of the reach of children and dispose of in accordance with local regulations.
Manufacturer’s information

Solution-Fit B.V.
Werfstraat 11
7553 GZ Hengelo OV
Netherlands
