Article no.: 108410
Manufacturer: LPG-FIT

Offer is exclusively for commercial customers. Prices are only visible after login.

  • Product description
  • Accessories

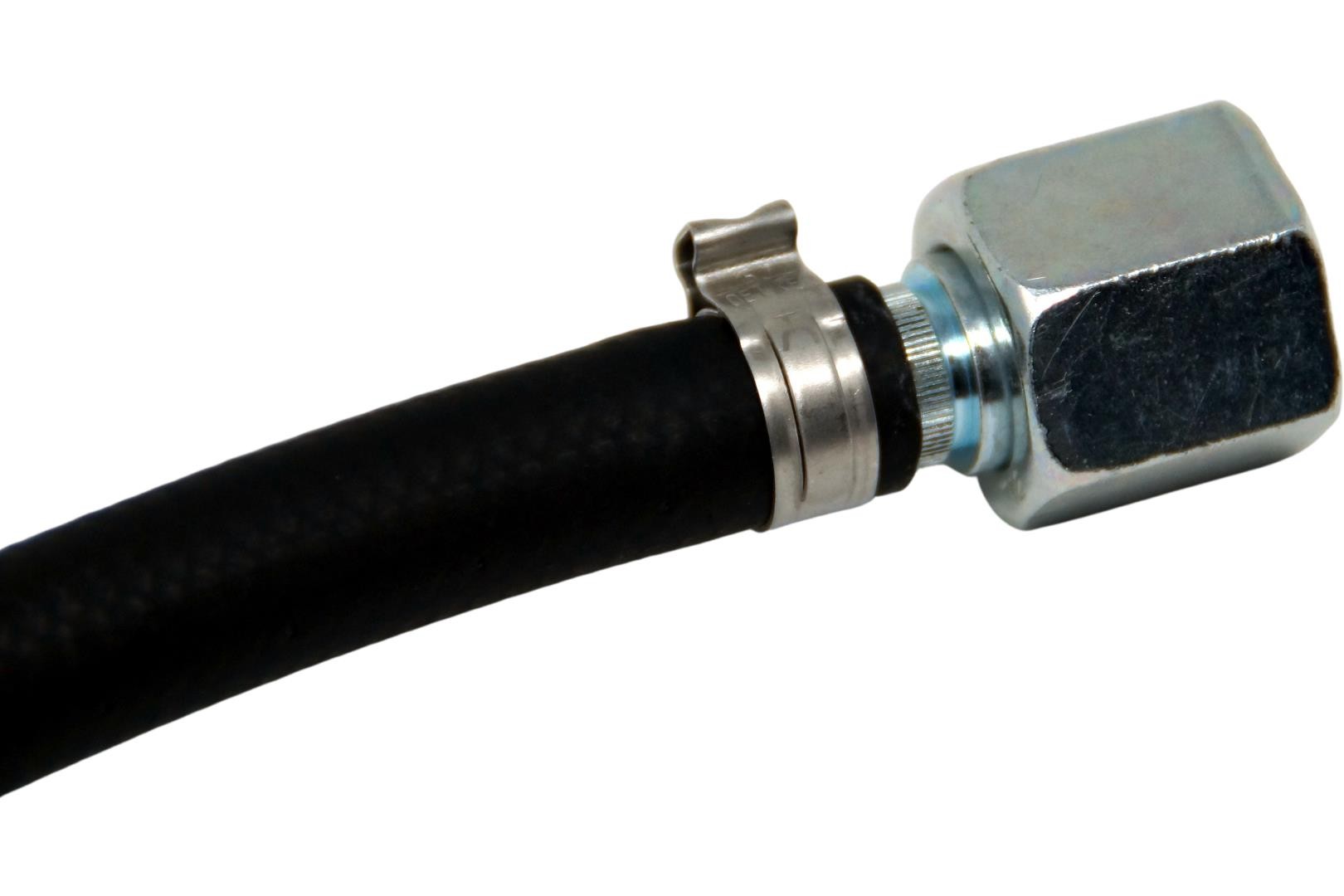

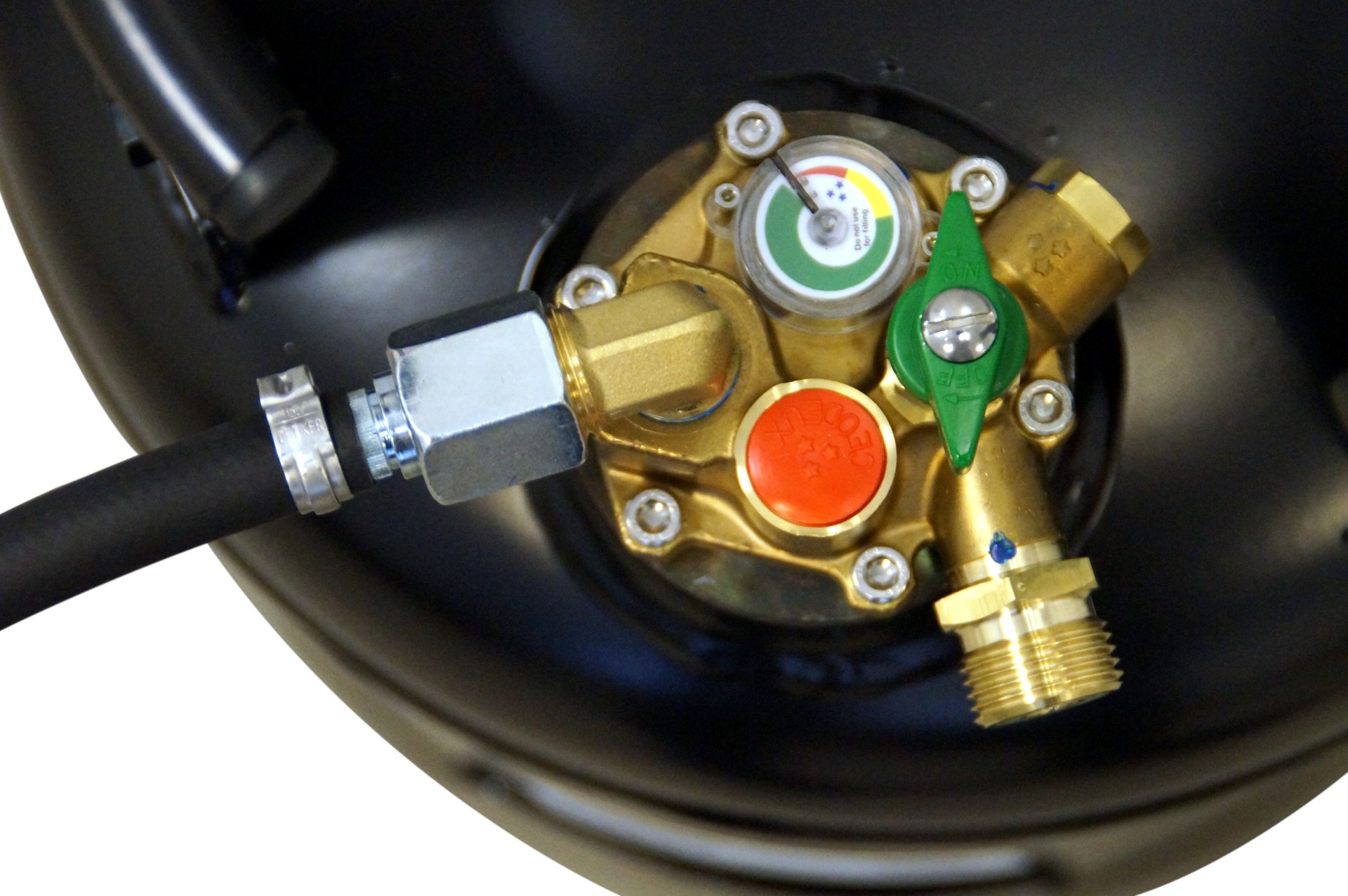

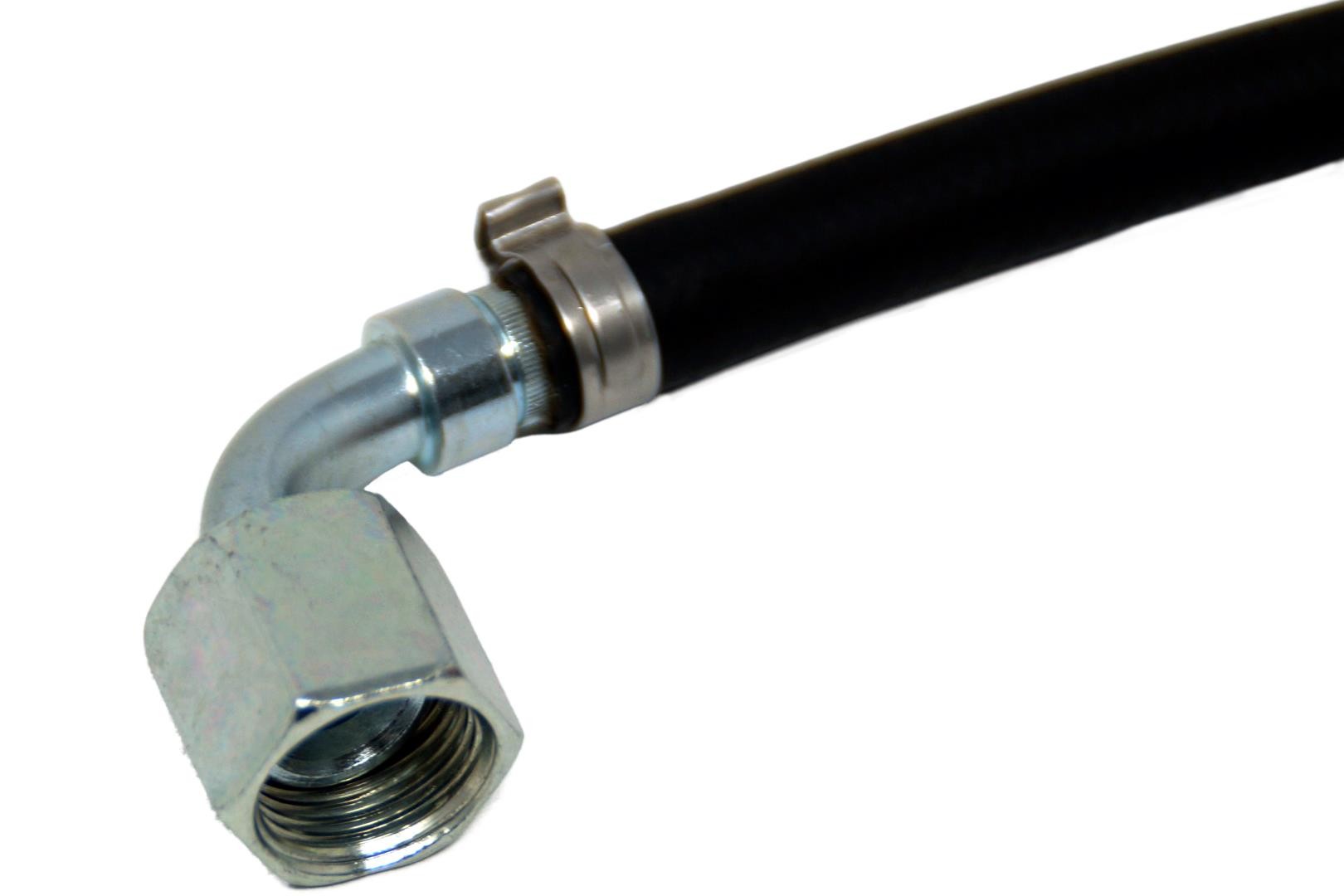

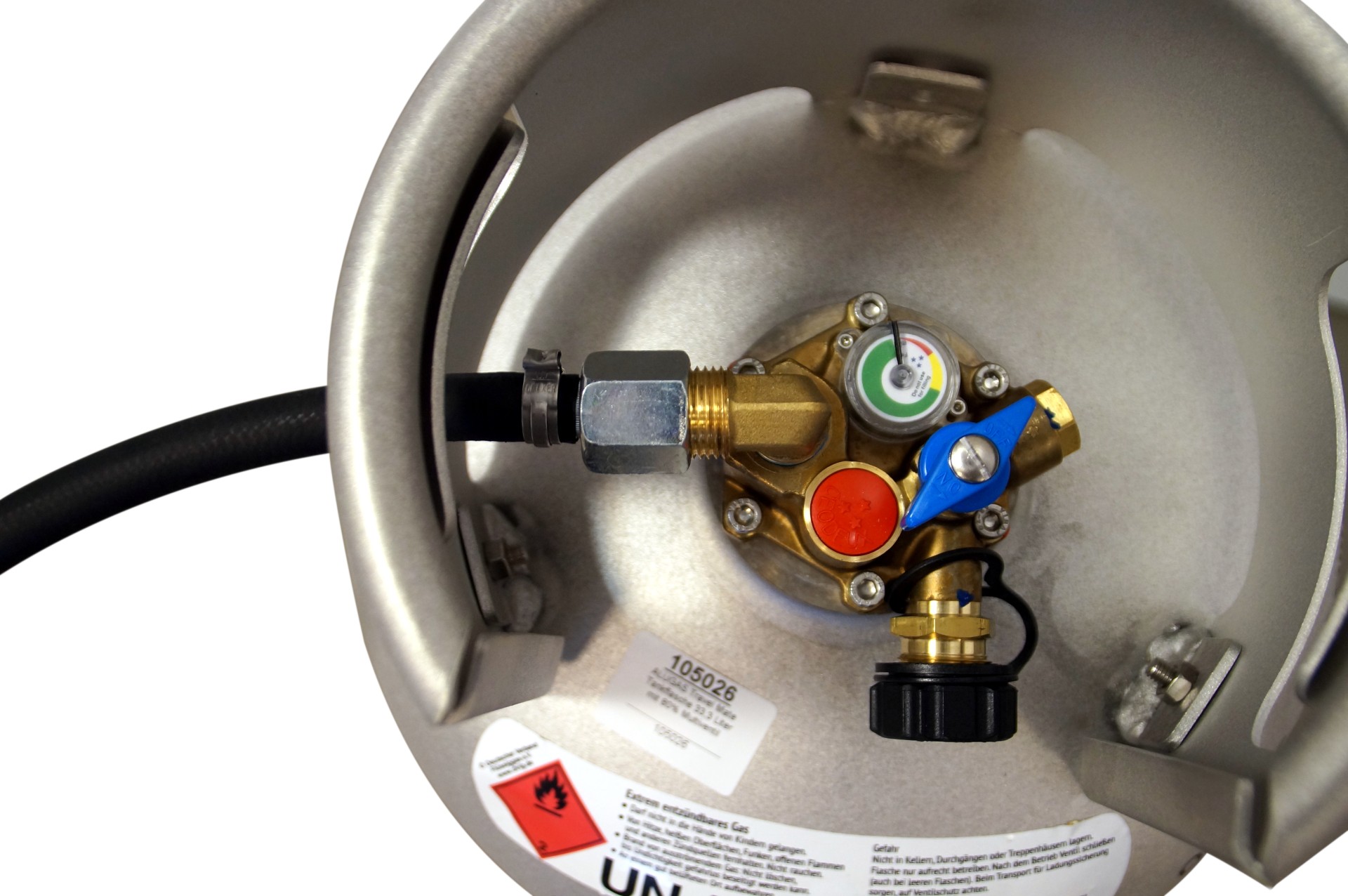

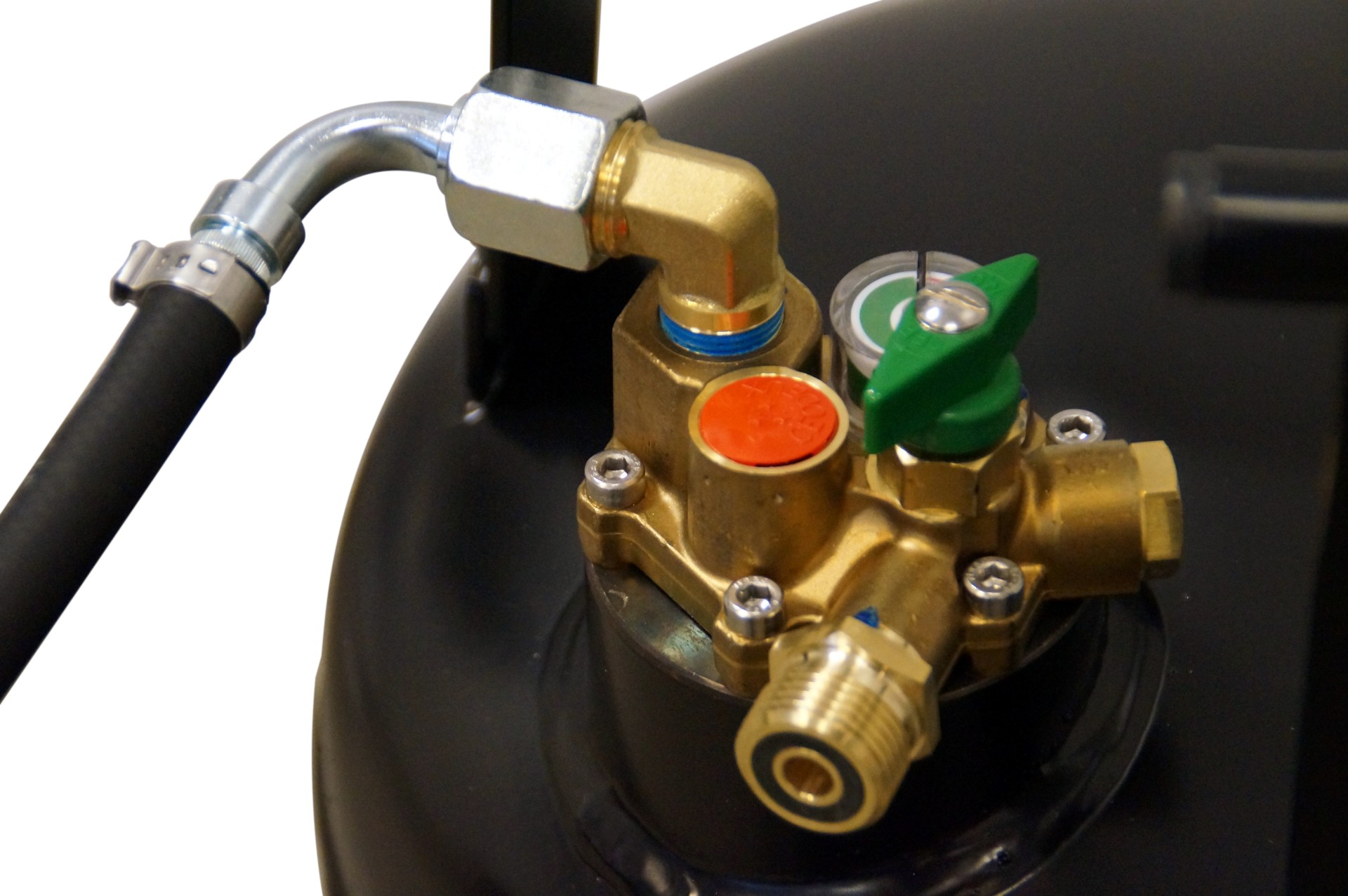

LPG thermoplastic hose - 10mm. Approved according to ECE-R67.

A practical alternative for prefabricated filling hoses.

The fittings must be ordered separately (via "Spare parts & accessories").

Technical data

Material:

Inner core: Nylon (polyamide 6)
Binding: Chemically bonded inner core and reinforcement
Outer cover: Nylon (polyamide 6), black

Dimensions:

Inner diameter: 9.7mm
Outer diameter: 13.7mm
Bending radius: 100mm
Weight: 75gr/m

Properties:

Burst pressure test: 370 bar
Working pressure: 90 bar
Working temperature: -40°C to +125C

Homologationsnummer: E4-67R-010247


Safety instructions and warnings

Safety instructions for LPG-FIT thermoplastic hose XD-6 (10mm - corresponds to the filling hose) - sold by the metre

  • Only use the thermoplastic hose for its intended purpose and in accordance with the manufacturer's instructions.
  • Make sure that the thermoplastic hose does not show any signs of damage such as cracks, cuts or wear before using it.
  • Check the condition of the thermoplastic hose regularly and replace it if there are any signs of damage.
  • Install the thermoplastic hose according to the manufacturer's instructions and ensure that all connections are secure and tight.
  • Do not use damaged or leaking thermoplastic hose.
  • Ensure that the thermoplastic hose is not kinked, crushed or otherwise subjected to mechanical stress.
  • Keep the thermoplastic hose away from sharp edges, hot surfaces and other potential sources of danger.
  • Avoid contact of the thermoplastic hose with aggressive chemicals or oils that could compromise its integrity.
  • Observe the applicable safety regulations and ordinances for handling liquid gas.
  • If you have any questions or uncertainties regarding the safety or operation of the thermoplastic hose, please consult the manufacturer or a qualified specialist.
