- Product description

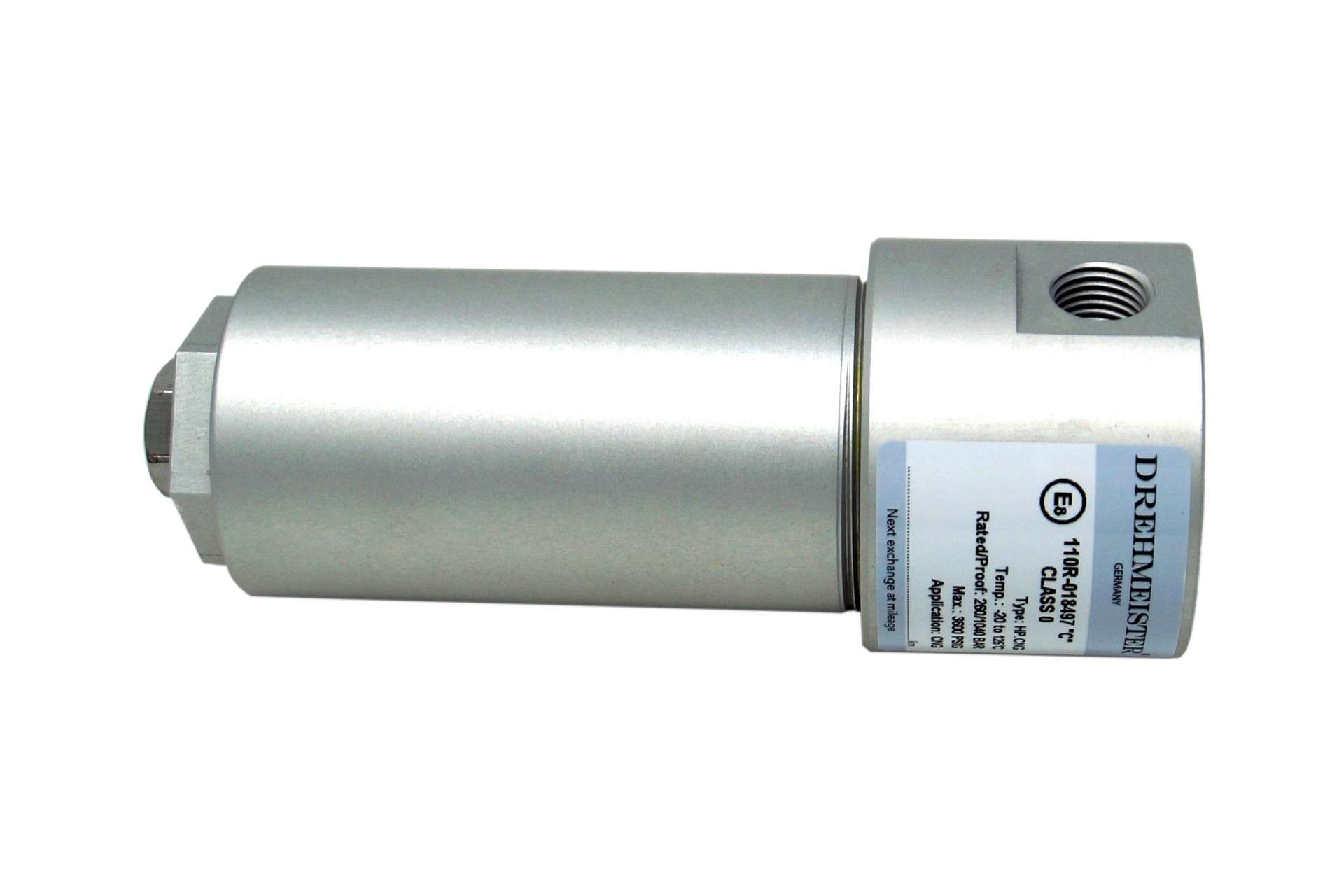

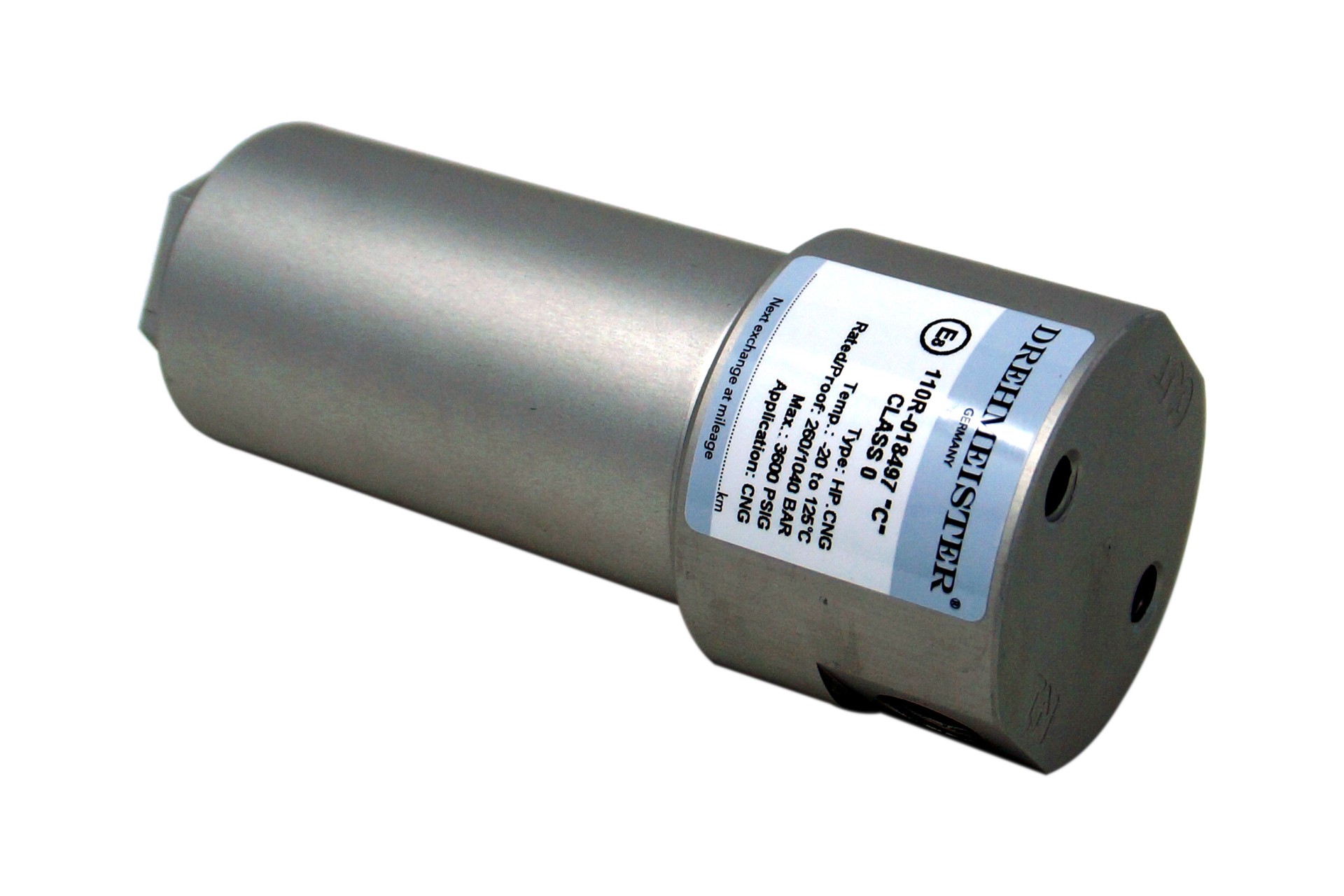

The DREHMEISTER CNG filter is a high-pressure filter specially developed for CNG (natural gas) fuelled vehicles.
The separator is designed to retain dirt and impurities from the gas and prevent them from entering the mechanical components (pressure regulator & injectors).
A robust aluminium housing and a powerful filter cartridge make the DREHMEISTER CNG filter the ideal choice for the most demanding applications.
Technical specifications Filter:
Maximum nominal operating pressure: 260 bar
Operating temperature: -40 to 125°C
Inlet & outlet: 1/4" NPT female (fittings not included in the scope of delivery)
Housing equipped with a drain plug
Filter cartridge: included (coalescence)
Application: CNG
Approval: ECE 110R
Technical specification filter cartridge:
Maximum operating temperature: From -40°C (-40°F) to +120°C (250°F)
Filter material: Nylon (PA6)
Thickness: ~6 mm
Pore diameter: 3-5-6 pm
Filtration efficiency: ISO 12103-1 "Arizona dust test" 99.97%.
Coalescing efficiency: (0.3 to 0.6 micron particles): 99%.
Decomposition temperature: 180°C / 356°F
