- Product description

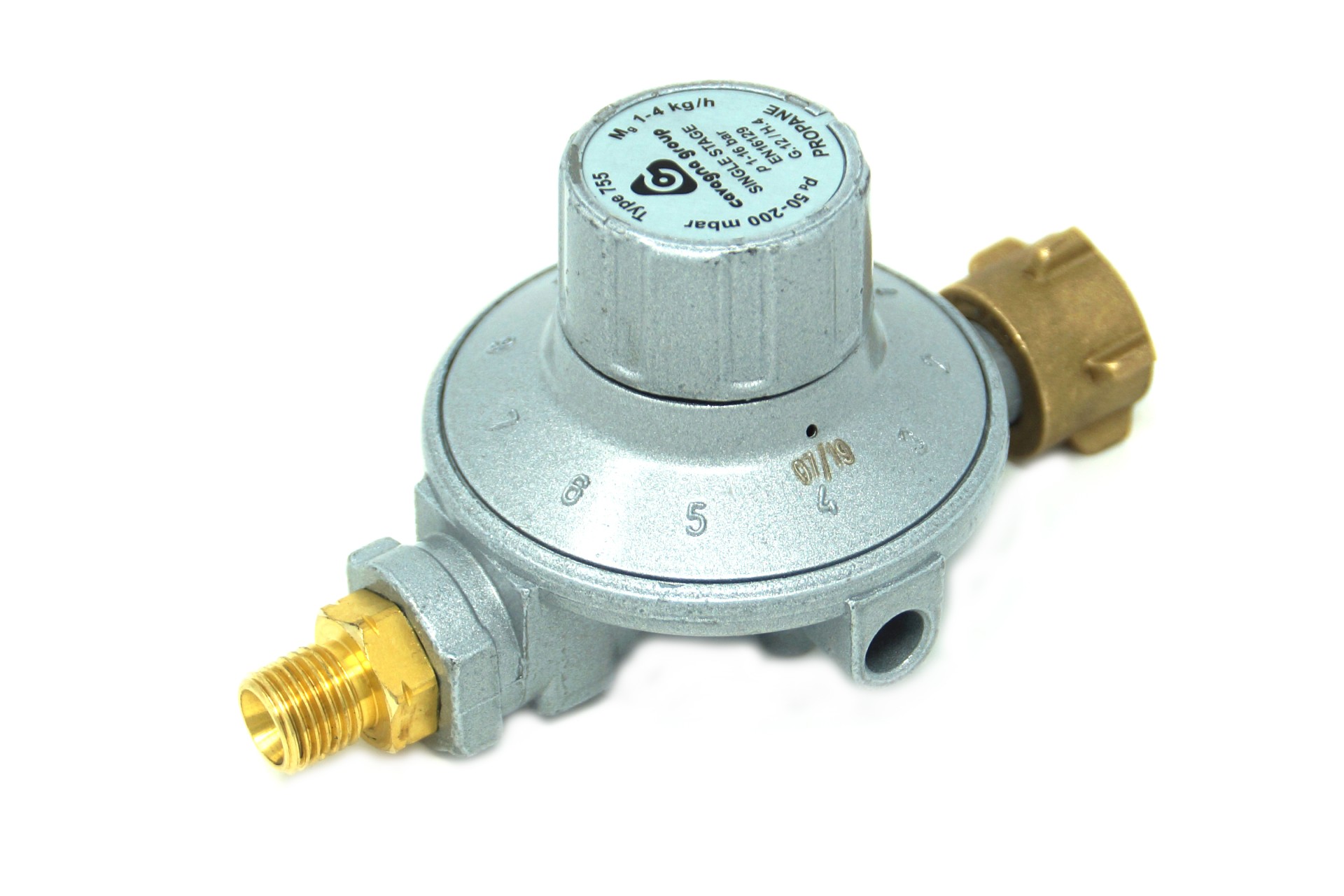

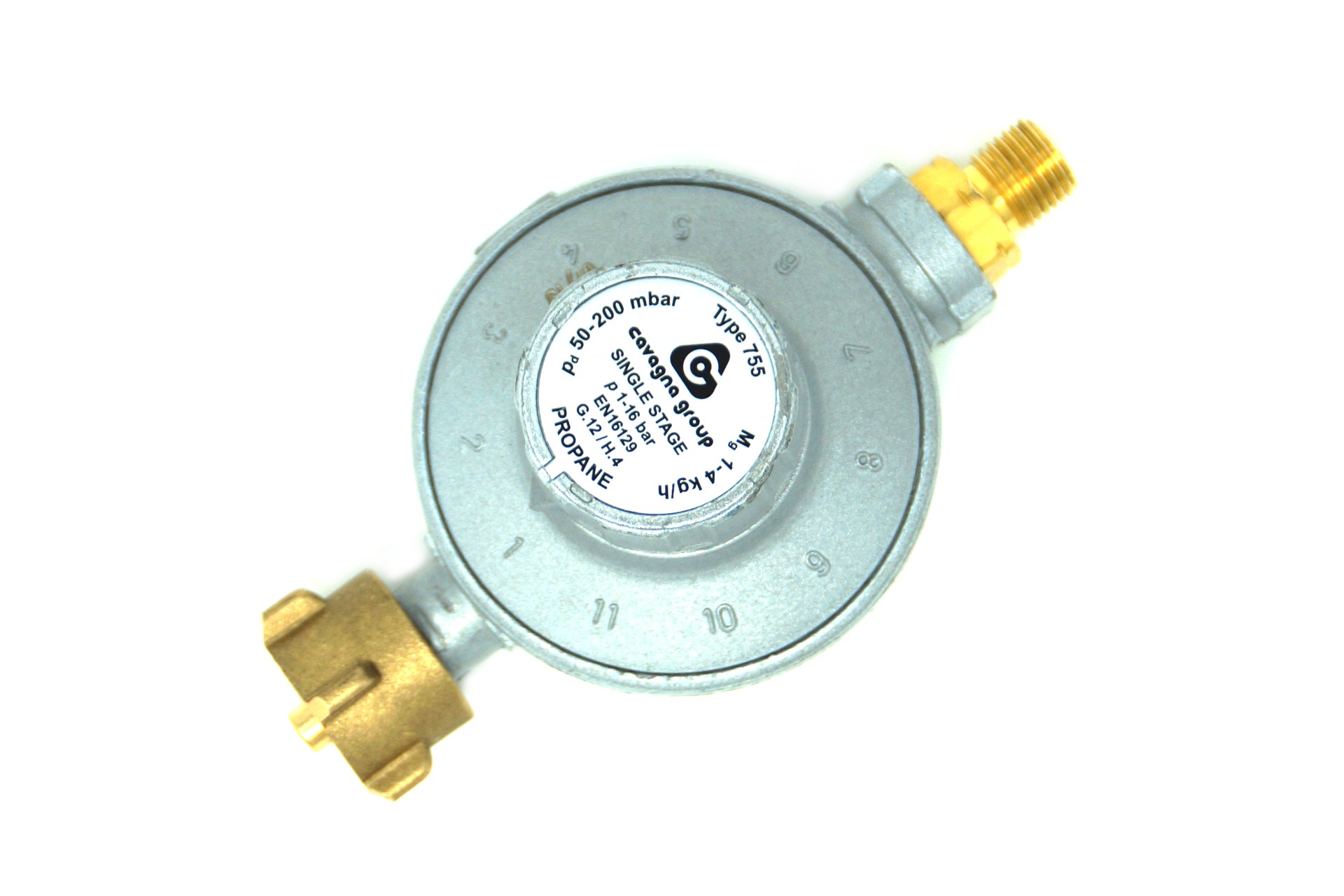

The Cavagna lpg regulator is suitable for any type of LPG (propane/butane mixing ratio).
The pressure regulator regulates the gas pressure so that the desired appliances can be connected.
The gas regulator may only be used outdoors and for cylinders with a maximum filling weight of 14 kg.
Technical data regulator:
Output: 1-4 kg/h
Connection: 3 / 5 / 11kg - KLF small cylinder connection G.12
Outlet: G1/4'' LH
Approval: EN 16129
Stage 1: 50mbar
Stage 2: 65mbar
Stage 3: 80mbar
Level 4: 95mbar
Level 5: 110mbar
Level 6: 125mbar
Level 7: 140mbar
Level 8: 155mbar
Level 9: 177mbar
Level 10: 185mbar
Stage 11: 200mbar
From current production year-Made in Italy
Check the nominal pressure of your appliance. So-called grill tuning is life-threatening and strictly prohibited!
Technical data
Output: 1-4 kg/h
Connection: 3 / 5 / 11kg - KLF small cylinder connection G.12
Outlet: G1/4'' left
Approval: EN 16129
Outlet pressure: 50-200 mbar (adjustable)
Safety instructions and warnings
Safety instructions for Cavagna gas regulator type 755 - 50-200mbar G.12 ->G 1/4 LH - 11 stages:
1. only suitable for use with gases for which the regulator is intended.
2. ensure that the gas supply is properly installed and maintained.
3. this regulator is intended for outdoor use only.
4. do not use the regulator near sources of ignition or flammable materials.
5. protect the regulator from extreme temperatures, moisture and dust.
6. avoid using damaged or worn parts.
7. check the controller regularly for wear and damage.
8 Ensure that the gas supply is completely closed when the regulator is not in use.
9. do not subject the regulator to excessive loads.
10. read the operating instructions carefully before using the regulator.
11. contact the manufacturer if you have any questions about installation or maintenance.
