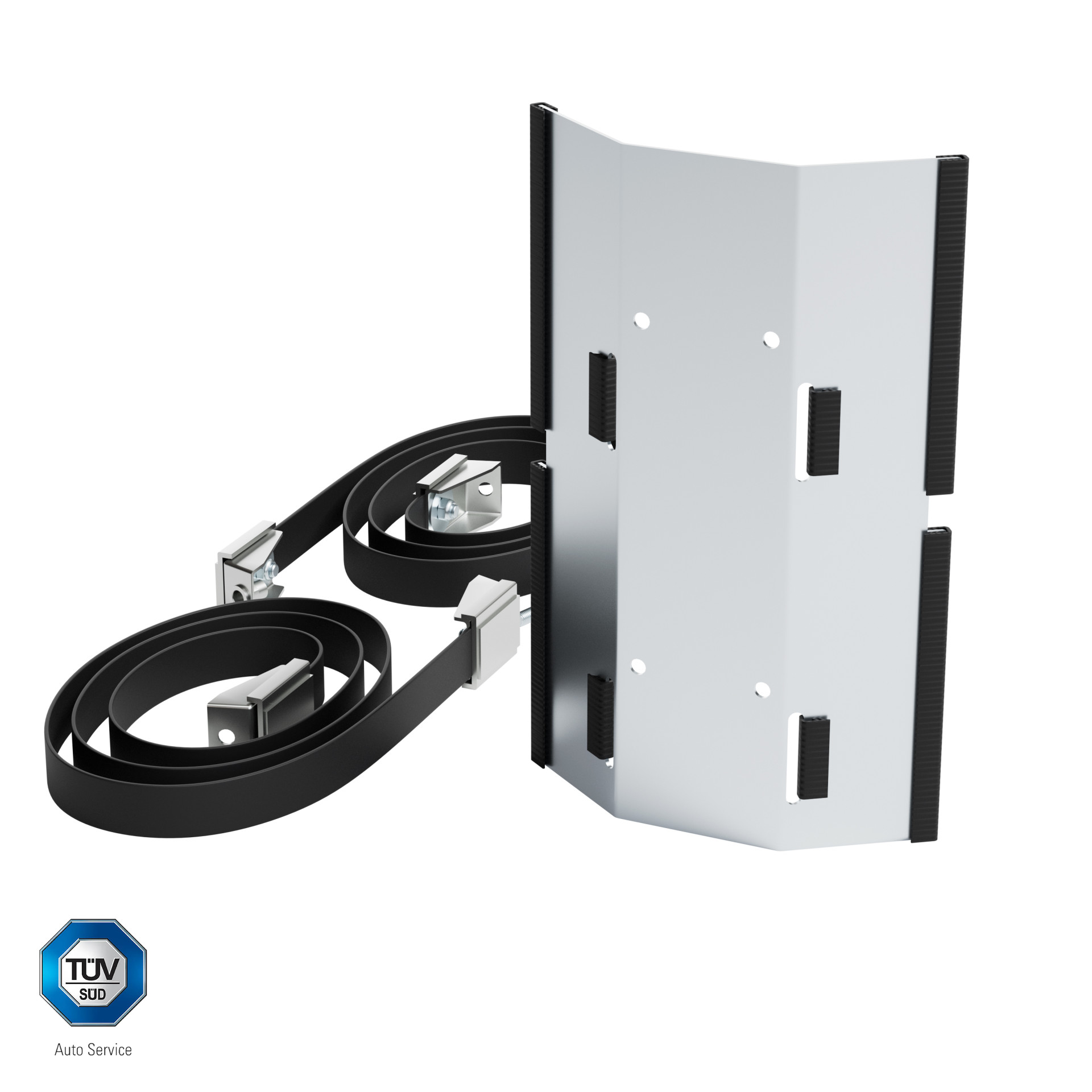

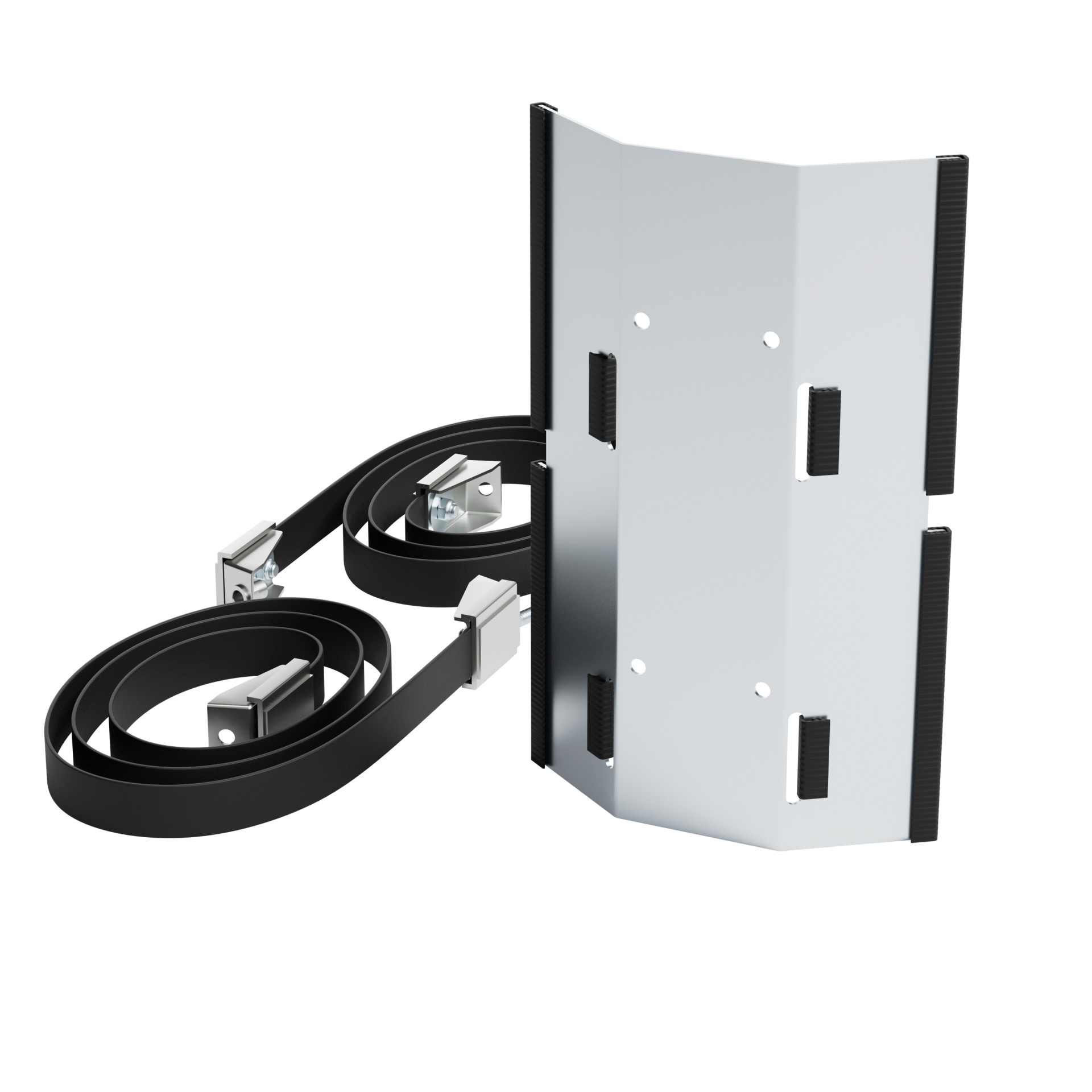

The CAMPKO gas cylinder stand is TÜV-approved and is suitable for securing standard replaceable gas cylinders, ALUGAS refillable gas cylinders and CAMPKO refillable gas bottles. The gas cylinder holder is designed for the permanent installation of refillable gas bottles in motorhomes, camper vans or caravans, but can also be used for industrial applications or for the secure fastening of gas cylinders in leisure settings.

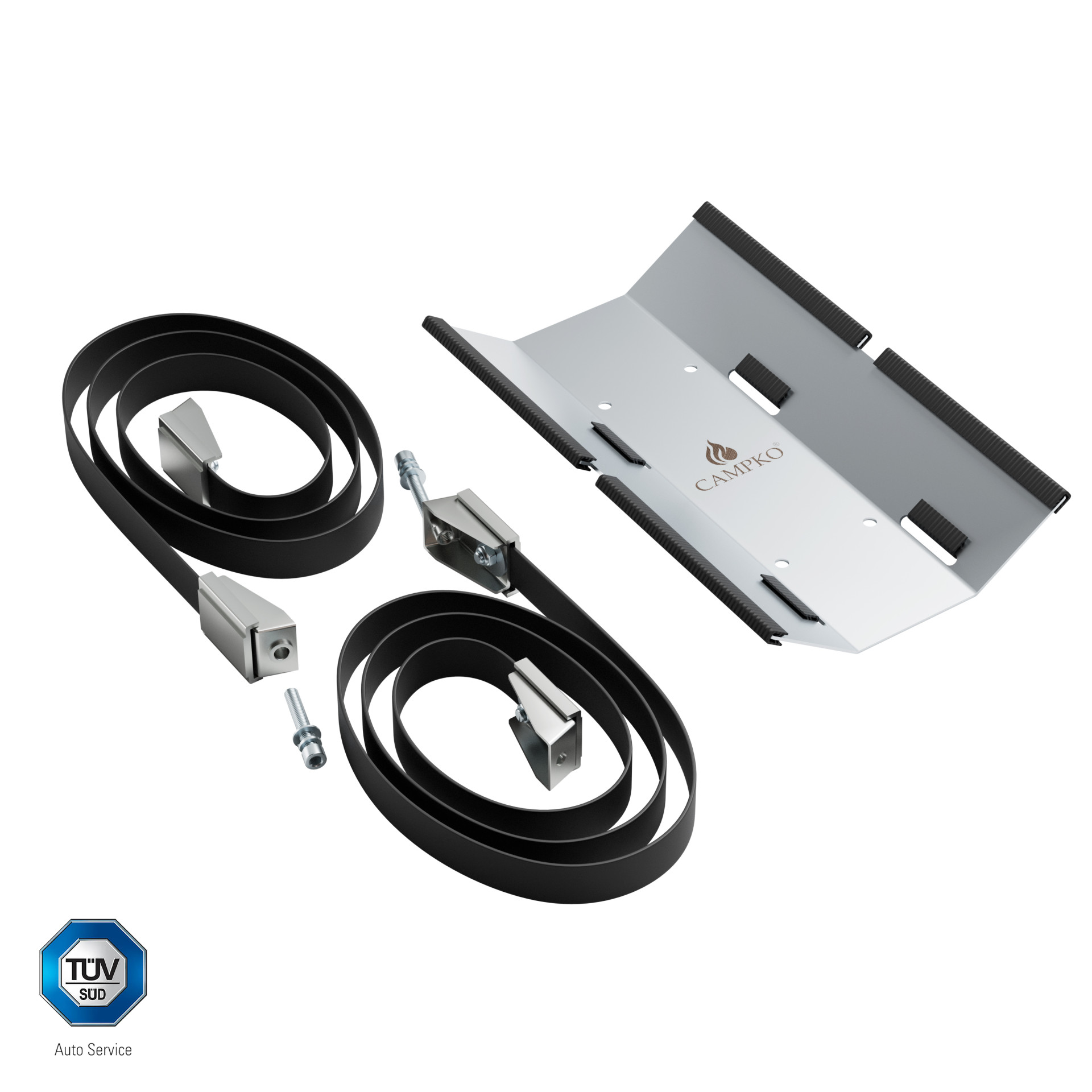

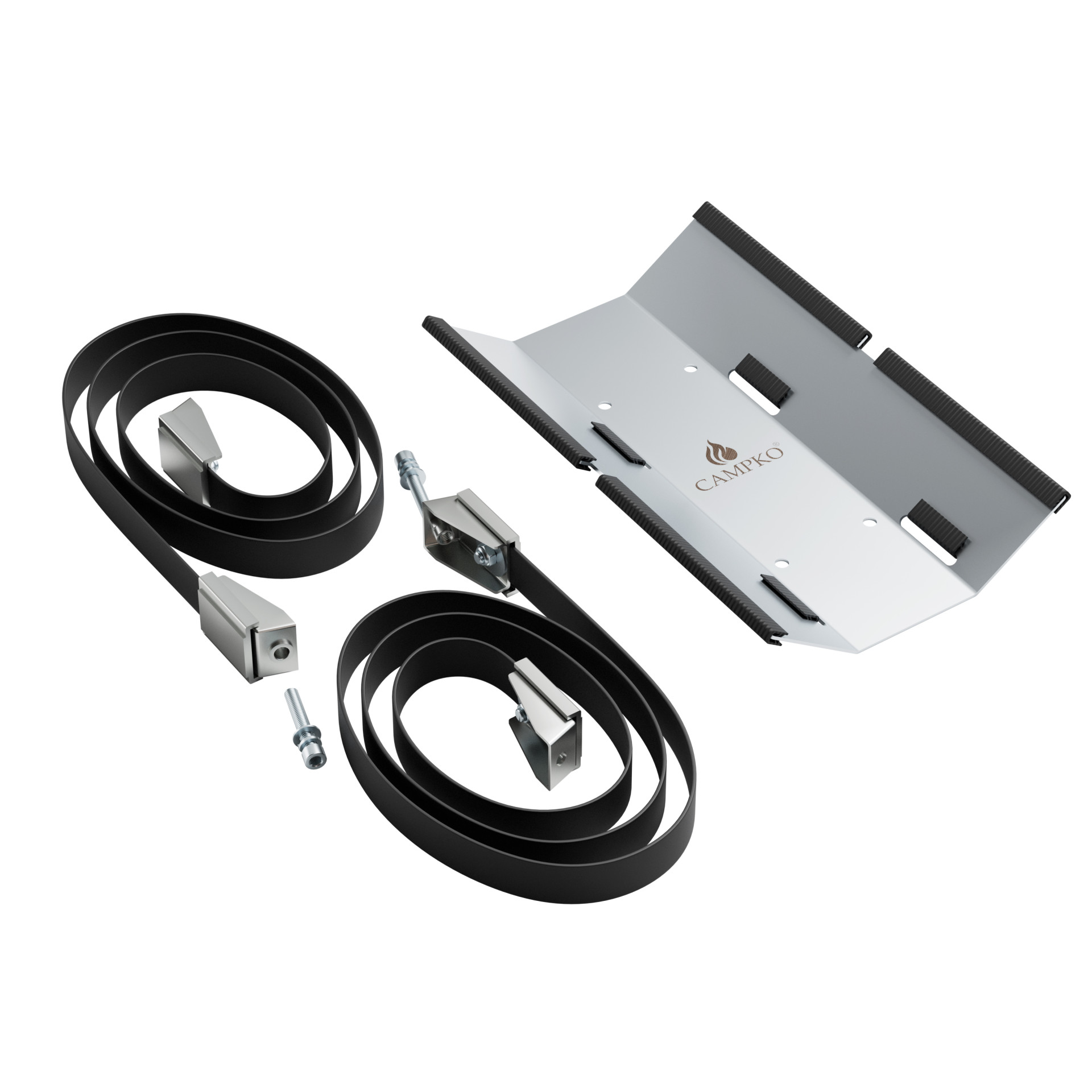

The mounting plate and tension straps are made of high-quality stainless steel. The tension straps are additionally rubberised and reliably protect the gas cylinder from damage and slipping.

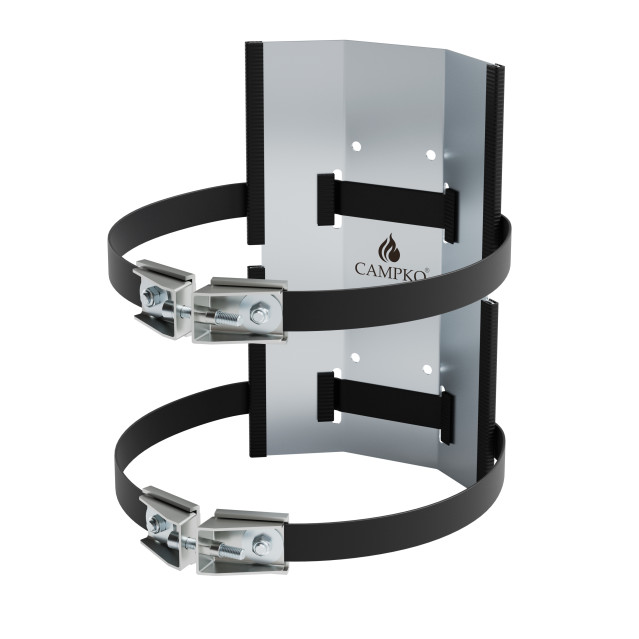

The turnbuckles are opened and closed using two hex socket screws. From now on, matching star-head screws are also included in the scope of delivery, so that the gas cylinder can be removed or refitted without tools if required. Depending on the application, the hexagon socket screws can still be used as an alternative.
When permanently fitted in a motorhome, the gas cylinder holder is securely bolted to the rear or side wall of the gas locker. For even greater stability, we recommend an additional connection to the vehicle body or the use of a backing plate (item no. 112652) on the rear of the gas locker wall.
Safety and warning notices
Product description: The CAMPKO gas bottle holder has been specially developed for the secure fastening of refillable gas bottles in vehicles or stationary gas storage areas. The product complies with UN Regulation No. 67 and, when installed correctly, ensures safe use.
Scope of application: The gas cylinder holder is designed for the secure mounting of gas cylinders in vehicles or in stationary applications.
WARNING: Failure to follow the safety instructions may result in serious injury or damage to property.
- Installation must only be carried out by qualified personnel.
- Use only suitable and undamaged fasteners.
- Ensure that the holder is securely attached to the vehicle or a suitable surface.
- Before each journey, check that the gas cylinder and all fasteners are securely in place.
- Star-head screws must be fully tightened before setting off.
- Store gas cylinders exclusively in the designated, adequately ventilated gas lockers.
- Do not use the gas bottle holder for damaged or unauthorised gas cylinders.
Tools required:
- 13 mm socket spanner
- 6 mm Allen key (optional when using the hex socket screws)
- Drill with a 10 mm drill bit
Installation steps:
- Determine the position of the gas cylinder in the gas locker.
- Mark the four fixing points using the bracket.
- Drill the bore holes using a 10 mm drill bit.
- Secure the bracket using the screws and nuts supplied.
- Fit the tension straps and align them correctly.
- Insert the gas cylinder and secure it firmly with the turnbuckles.
Maintenance and inspection:
- Regularly check that fastenings, straps and star-head or Allen screws are tight.
- Replace any damaged or worn components immediately.
- Remove corrosion and dirt regularly.

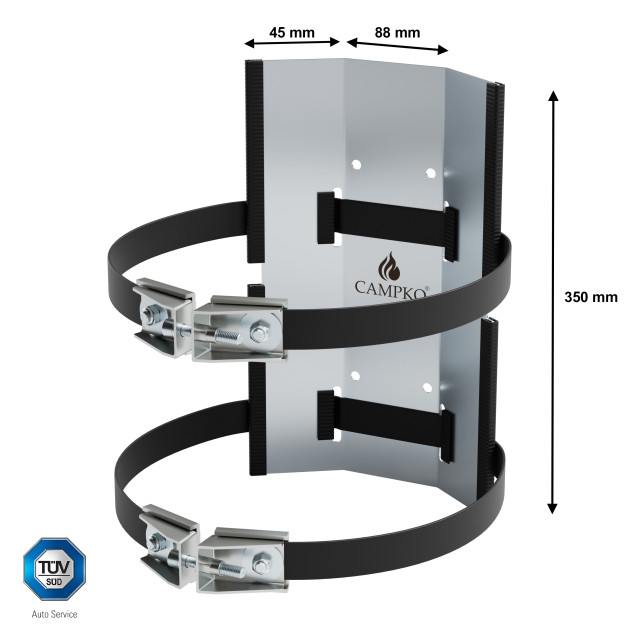

Technical data:
- Material: Stainless steel
- Compatibility: Refillable gas bottles
Compliance: The CAMPKO gas cylinder holder meets the requirements of UN Regulation No. 67.
Manufacturer contact details
Manufacturer:
HybridSupply GmbH
Roggenhorster Str. 9b
23556 Lübeck, Germany
