- Product description

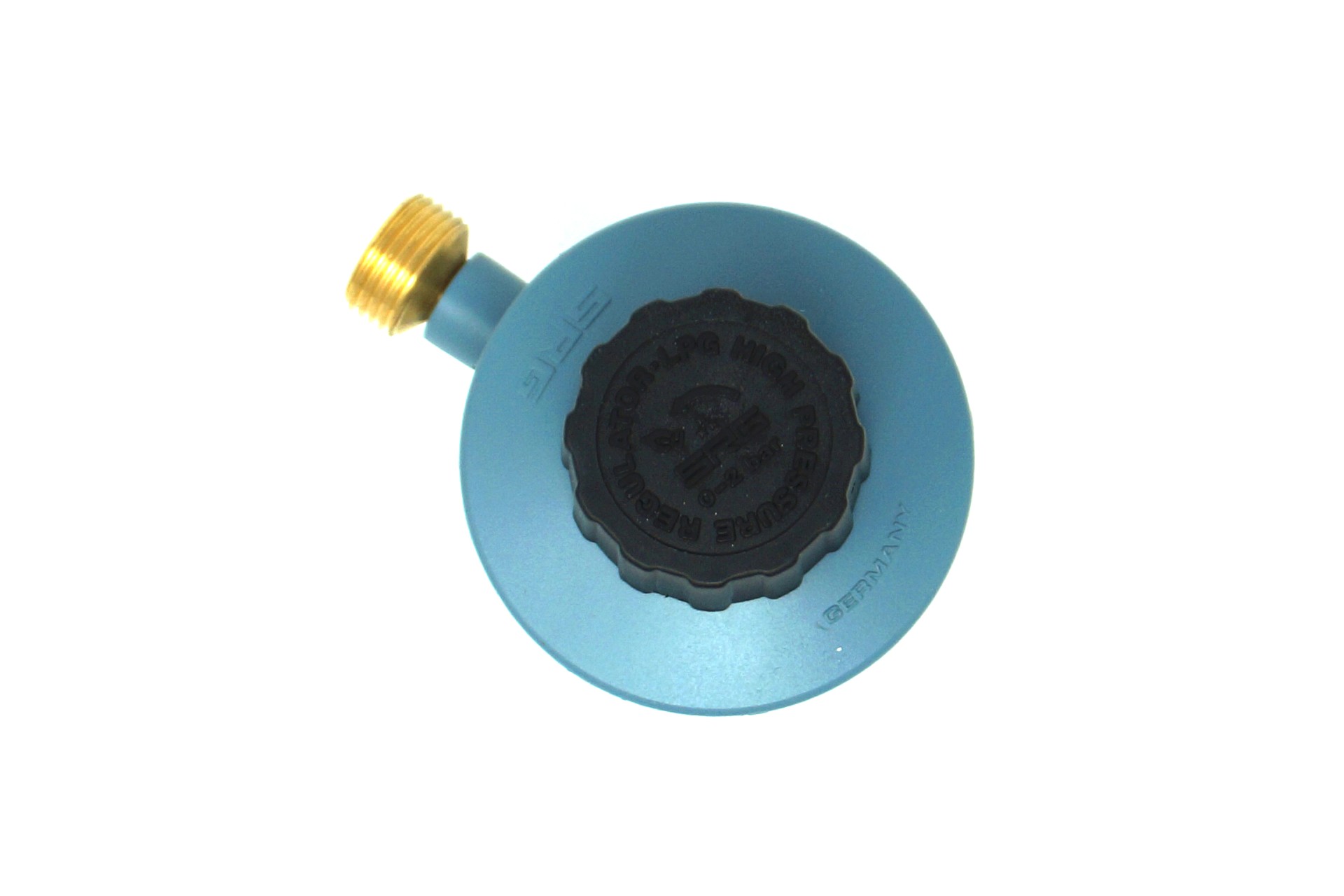

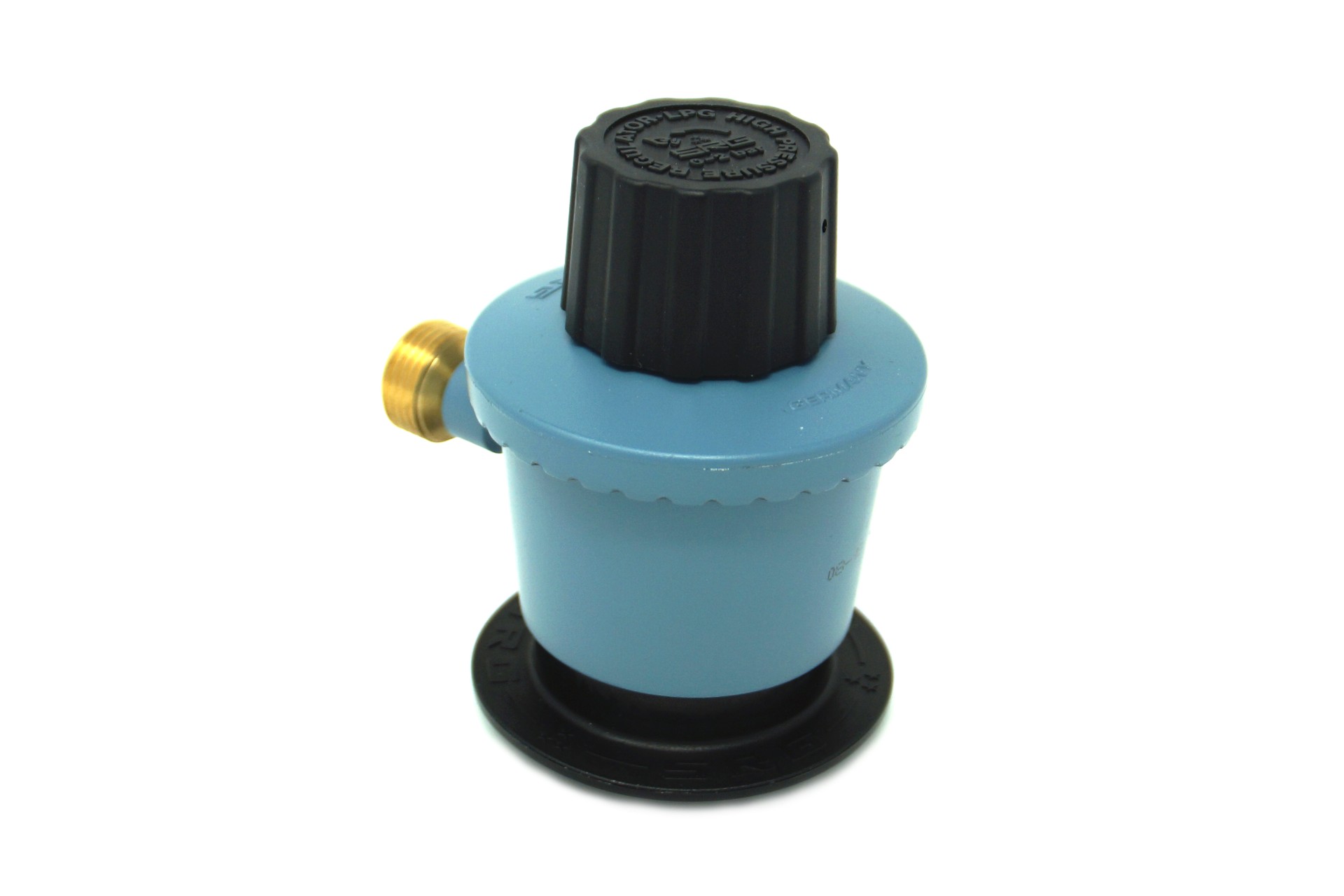

The SRG gas regulator 552-0 Jumbo enables a gas hose to be connected to gas cylinders with a clip-on Withdrawal valve. The pressure regulator regulates the gas pressure so that the desired appliances can be connected.
Inlet: Clip-on (quick coupling) type G.56 - diameter 35mm according to EN15202
Outlet: W21.8 x 1/14 LH (left-hand thread) No1
Outlet pressure: adjustable 0-2 bar
Advantages:
- adjustable outlet pressure
- simple clip-on system for jumbo valves
- incl. safety ring
The SRG Jumbo system was invented and patented by Willy Rackow in 1934.
Safety instructions and warnings
Safety instructions for SRG gas regulator (clip-on) 552-0 Jumbo 0-2bar G.56 -> W21.8x1/14'' LH:
- The SRG gas regulator may only be installed and serviced by qualified personnel.
- Before installing the regulator, the gas lines must be checked for leaks.
- The regulator may only be used for the intended gas pressure range.
- It must be ensured that the regulator is not damaged before it is installed.
- No modifications may be made to the regulator.
- The regulator must be protected from extreme temperatures.
- When used outdoors, the regulator must be protected against the effects of the weather.
- No flammable materials may be stored near the controller.
- The controller must be serviced regularly to ensure that it functions properly.
- If problems or damage to the regulator occur, it must be replaced immediately.
