Homologation number E8 67R-01 3949

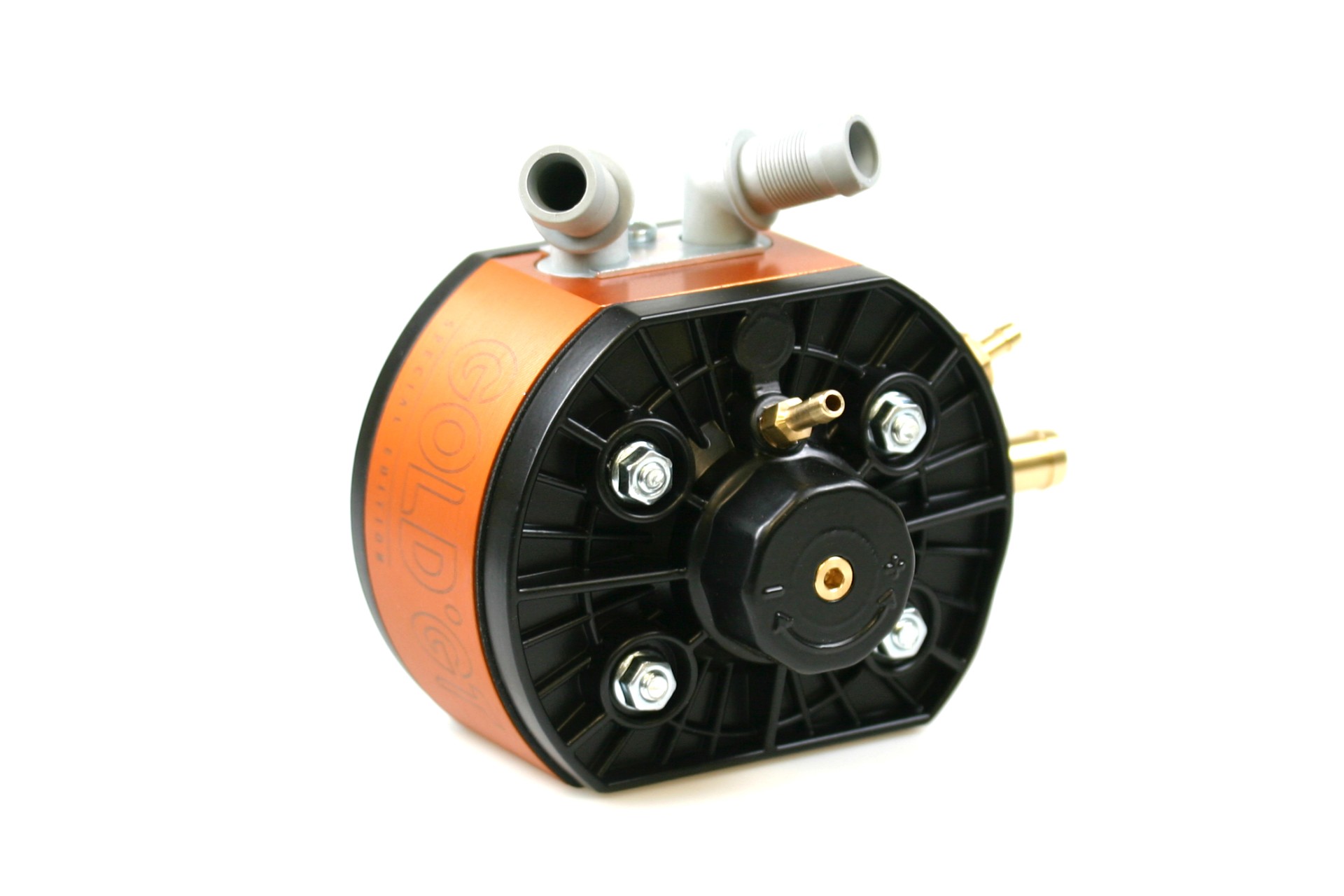

Technical data KME GOLD GT reducer | |
material | Cast aluminium |
weight | 1.16 kg |
Dimensions | 119x96 mm |
Maximum inlet pressure | kA |
Outlet pressure | variable from 0.8 to 1.9 bar |
Solenoid coil voltage | 12 V DC |
Solenoid coil power | 11 W |
Connection at input | M12x1 cable ø8 mm |
Connection at output | Hose connection 2 x ø12 mm |
Power in KW | 250 |
Areas of application: various LPG systems from the manufacturer KME (DIEGO, DIEGO G3, NEVO PLUS/PRO etc.) and other manufacturers.
*Coldertemperatures can reduce the efficiency of the reducer and the performance of the engine; in the case of higher ambient temperatures, the reducer can also be used on more powerful engines.
Safety instructions and warnings
Safety instructions for KME reducers GOLD GT up to 250KW:
1. before installing or servicing the reducer, ensure that the power supply to the appliance is disconnected.
2. ensure that the appliance is properly earthed to minimise the risk of electric shock.
3. use only manufacturer recommended replacement parts and accessories to ensure optimal performance and safety of the reducer.
4. ensure that all connections and joints are properly and firmly tightened to avoid leaks and other potential hazards.
5. read the manufacturer's instructions carefully before using the reducer and observe all instructions and warnings given.
6. do not use the reducer in an environment with explosive or flammable substances, as this can lead to serious safety risks.
7. keep the reducer away from children and unauthorised persons to avoid injury and damage.
8. regularly check the condition of the reducer and have it checked by a qualified technician if there are signs of damage or malfunctions.
9. observe all applicable safety regulations and laws when operating the reducer, especially with regard to electrical connections and environmental regulations.
10. in the event of an emergency or if problems occur with the reducer, switch off the appliance immediately and contact an authorised customer service centre.
