- Product description
- Spare parts
Homologation number E4 67R-01 0281

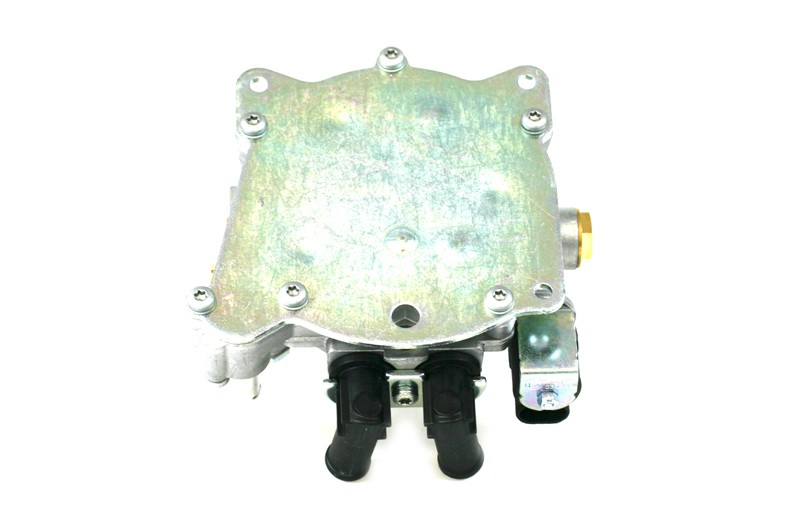

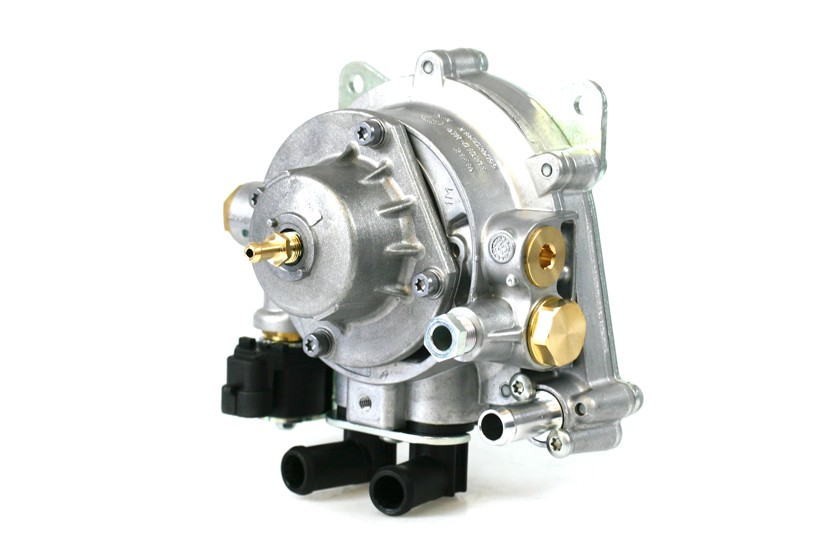

| Technical data CPR LINX reducer | |
| material | Cast aluminium |
| weight | 1.45 kg |
| Dimensions | - |
| Maximum inlet pressure | 2.5 - 30 bar |
| Outlet pressure | 1.4 bar |
| Solenoid coil voltage | 12 V DC |
| Solenoid coil power | 11,7 W |
| Connection at input | M12x1 cable ø8 mm |
| Connection at output | Hose connection ø12 mm |
| Power output | 140 KW |
*without connection to the motor
Colder temperatures can reduce the efficiency of the reducer and the performance of the motor; in the case of higher ambient temperatures, the reducer can also be used on more powerful motors.
