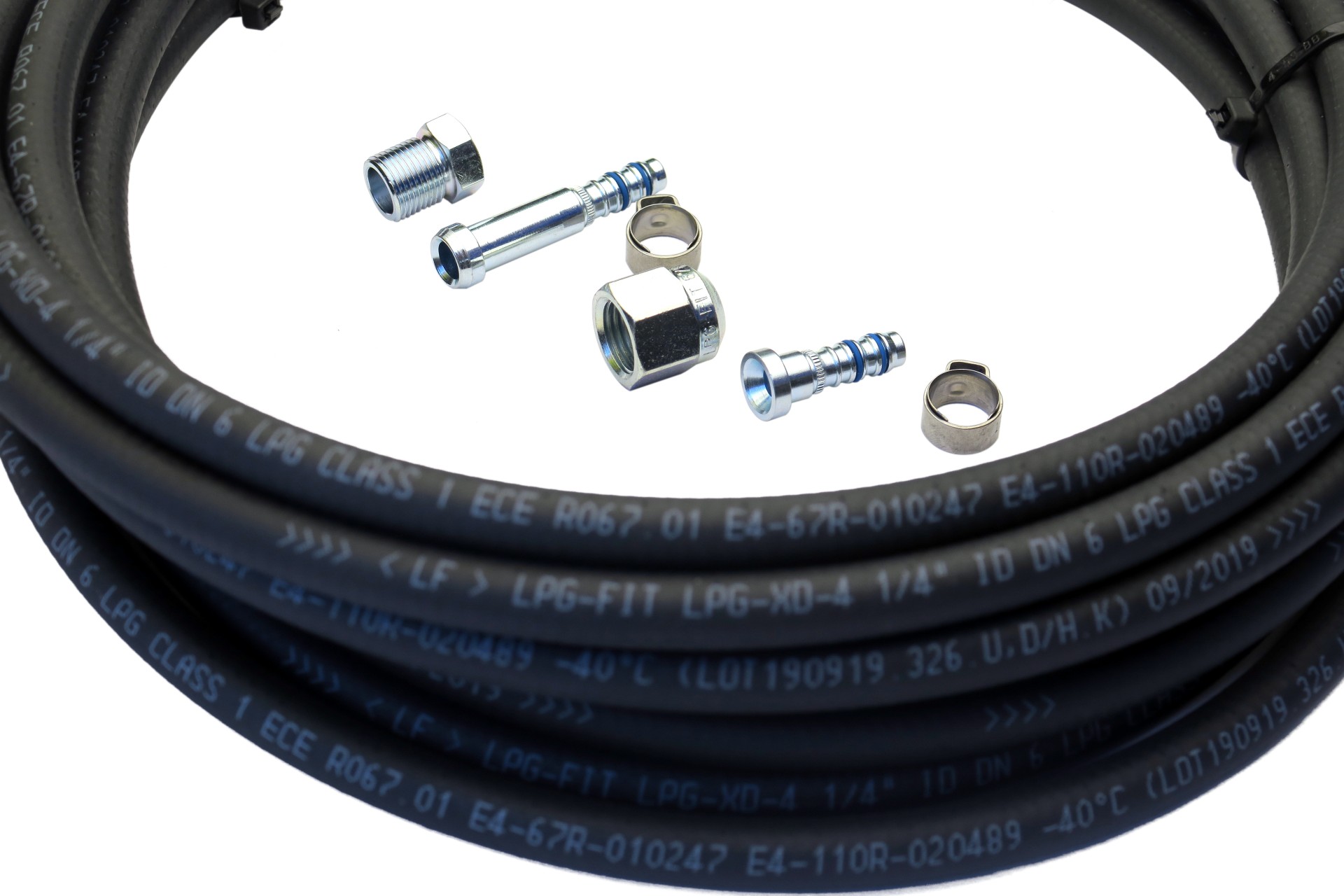

LPG thermoplastic hose - 6.5mm (equivalent to 8mm copper pipe). 6 metre kit with fittings.
Approved according to ECE-R67.
A practical alternative for rigid lines.
Applications: used in Prins and Vialle LPG systems, among others.
Technical data
Material:
Inner core: Nylon (polyamide 6)
Bonding: Chemically bonded inner core and reinforcement
Outer cover: Nylon (polyamide 6), black
Dimensions:
Inner diameter: 6.6mm
Outer diameter: 9.8mm
Bending radius: 75mm
Weight: 43gr/m
Properties:
Burst pressure test: 370 bar
Working pressure: 90 bar
Working temperature: -40°C to +125C
Homologationsnummer: E4-67R-010247
Safety instructions and warnings
Safety instructions for LPG-FIT thermoplastic hose kit XD-4 (=8mm) M12x1 (6 metres)
1. use the LPG-FIT thermoplastic hose kit XD-4 (=8mm) M12x1 (6 metres) only in accordance with the manufacturer's instructions.
2. ensure that the kit is properly installed and that all connections are secure and tightened.
3. regularly check the condition of the thermoplastic hose for damage or signs of wear. If damage or wear is found, the thermoplastic hose should be replaced immediately.
4. avoid any contact of the thermoplastic hose with sharp edges or hot surfaces to prevent damage.
5. the LPG-FIT thermoplastic hose kit XD-4 (=8mm) M12x1 (6 metres) must not be used above its maximum permissible operating temperature. Please observe the manufacturer's instructions.
6 Ensure that the thermoplastic hose is not kinked or twisted, as this can lead to malfunctions.
7. always keep the thermoplastic hose kit away from open flames or sources of ignition.
8. if a smell of gas or leaks are detected on the thermoplastic hose, shut off the gas supply immediately and contact an authorised specialist.
9 Follow the applicable safety regulations and provisions for handling liquid gas.
10. read the manufacturer's instructions and the safety instructions carefully before installing and using the kit.
