- Product description

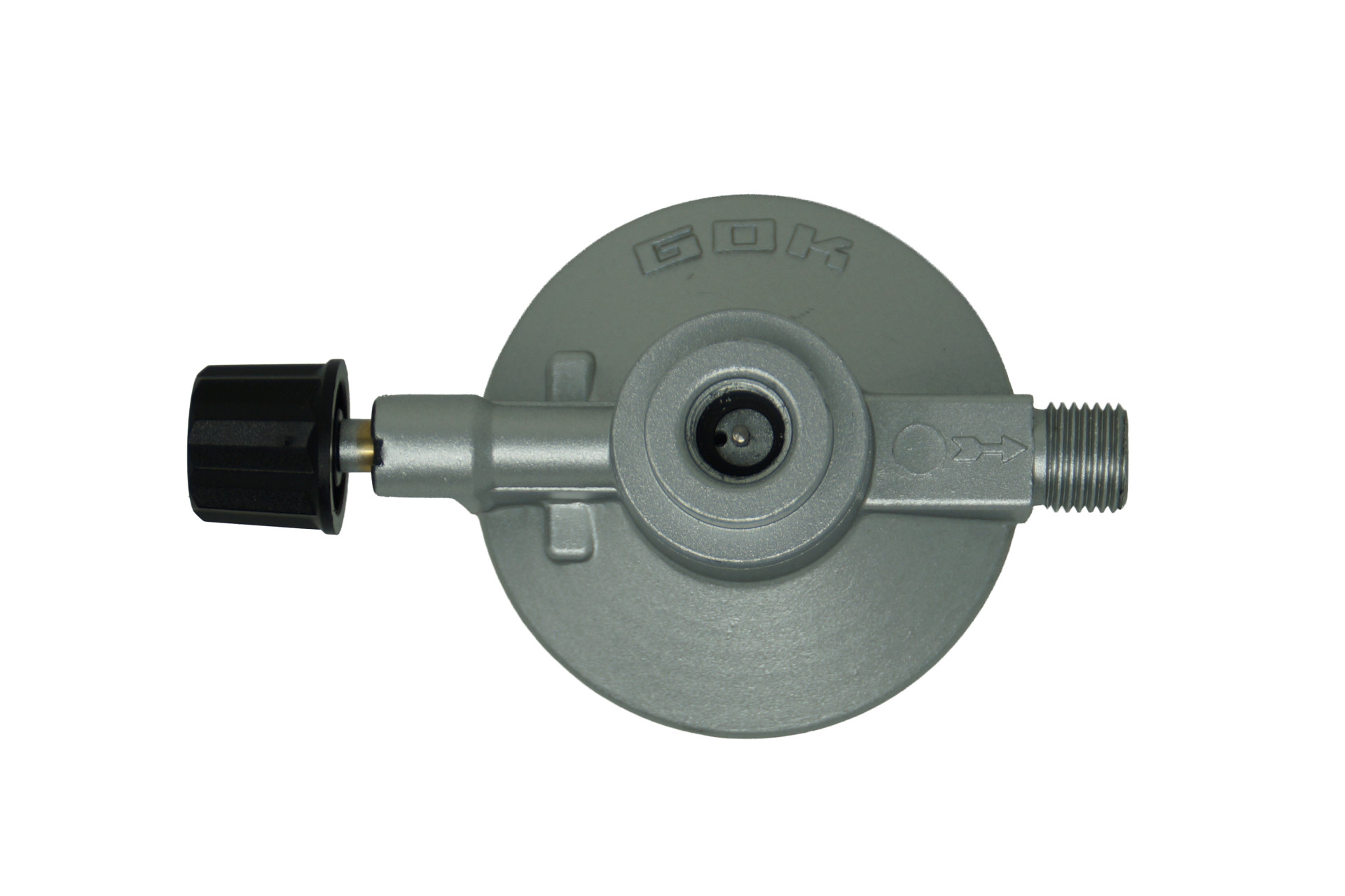

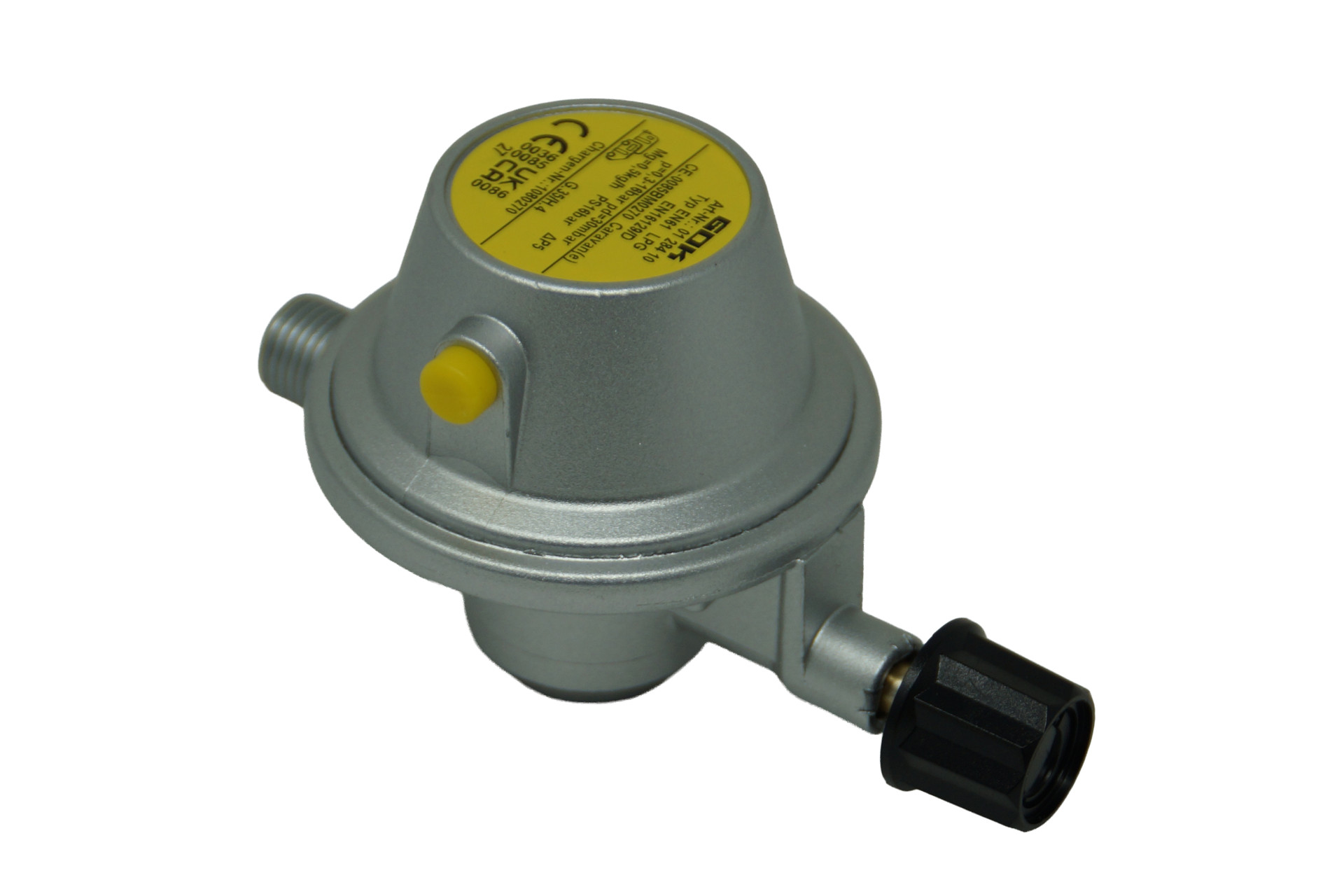

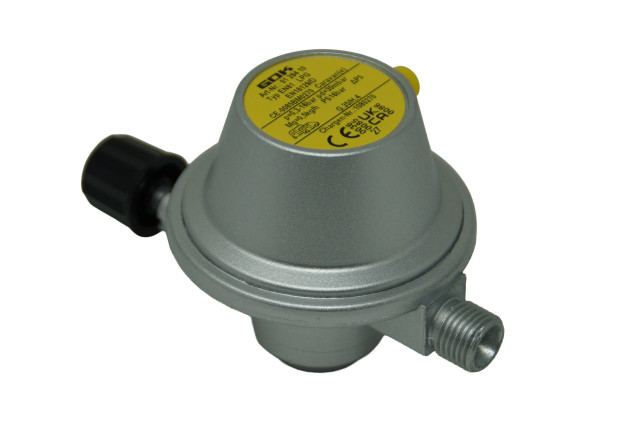

The GOK EN61 low-pressure regulator for gas cartridges is designed for direct connection to gas cartridges with a screw-on thread and reliably reduces the cartridge pressure to the nominal pressure of the connected gas appliance. With an outlet pressure of 30 mbar and a flow rate of 0.5 kg/h, the regulator is suitable for supplying compatible gas appliances in camping and leisure applications.
The inlet connection is designed for gas cartridges with an IG 7/16-28 UNEF thread. A G 1/4 LH-KN connection is provided at the outlet. The integrated shut-off valve allows the gas supply to be opened and closed manually. In addition, the regulator features a PRV safety relief valve as an integrated safety device to protect against overpressure.
Technical specifications:
- Manufacturer: GOK
- Type: EN61
- Type: Low-pressure regulator for gas cartridges
- Inlet: Gas cartridge screw-on thread IG 7/16-28 UNEF
- Output: G 1/4 LH-KN
- Outlet pressure: 30 mbar
- Flow rate: 0.5 kg/h
- Maximum permissible pressure: PS 16 bar
- Inlet/outlet: straight
- With plastic handwheel
- With shut-off valve
- With PRV safety relief valve
- Compliance with EN 16129, Annex D
Safety and warning notices
Notes:
- The pressure regulator must only be used with suitable gas cartridges featuring an IG 7/16-28 UNEF screw thread and compatible gas appliances with a nominal pressure of 30 mbar.
- Before connection and commissioning, the pressure regulator, threads, seals and connected pipes must be checked for damage and to ensure they are in good working order.
- The connection must be carried out professionally and in accordance with the manufacturer’s installation and operating instructions.
- After connection, the gas-carrying connections must be checked for leaks using a suitable testing device. Never use an open flame to detect leaks.
- Damaged, leaking, corroded or otherwise compromised components must not be used.
- The PRV safety relief valve and other components of the pressure regulator must not be altered, blocked or tampered with.
- Gas appliances and gas cartridges must only be operated in accordance with the relevant manufacturer’s instructions and the applicable regulations.
- If you smell gas or detect a leak, shut off the gas supply immediately. Keep ignition sources away and ensure adequate ventilation.
