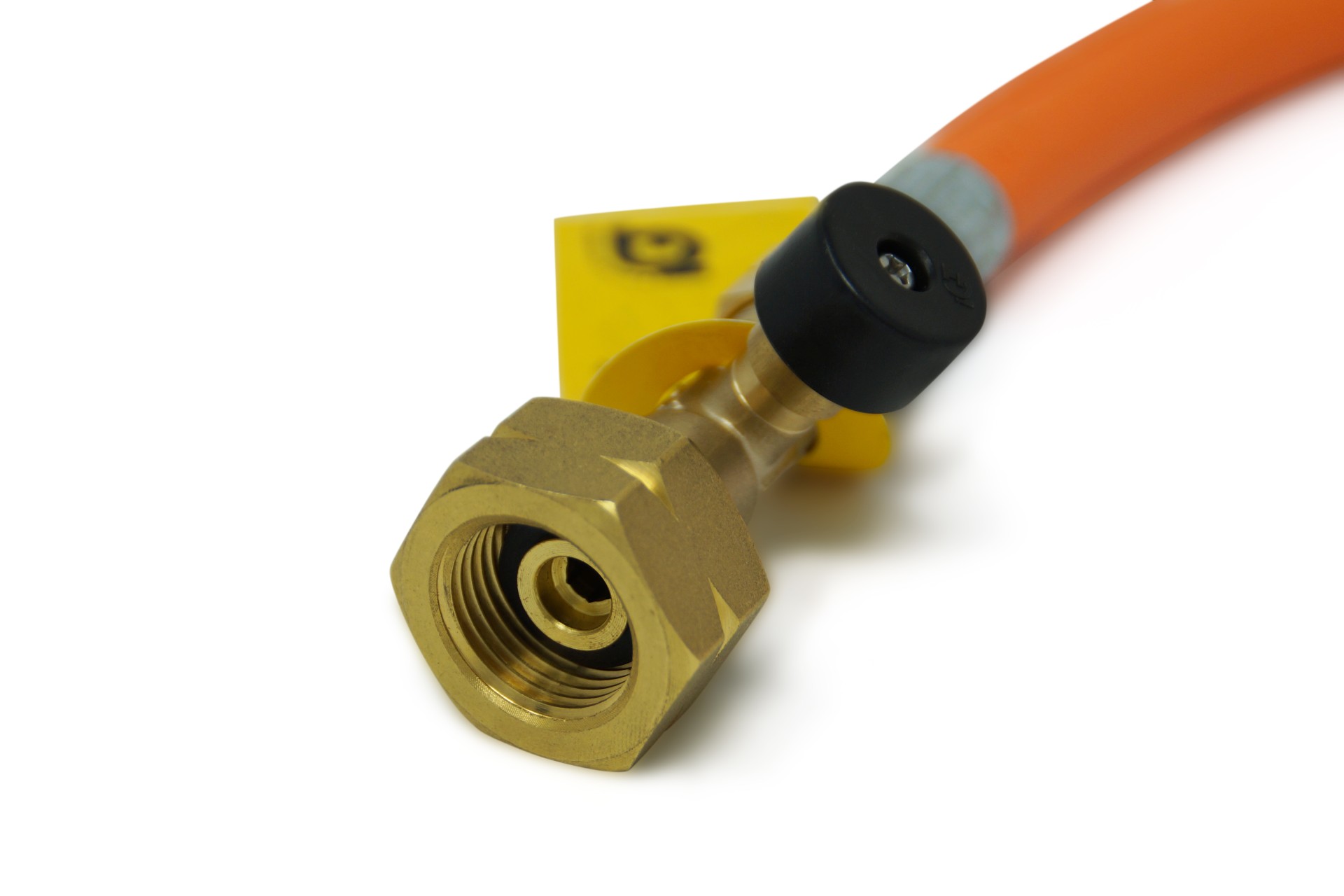

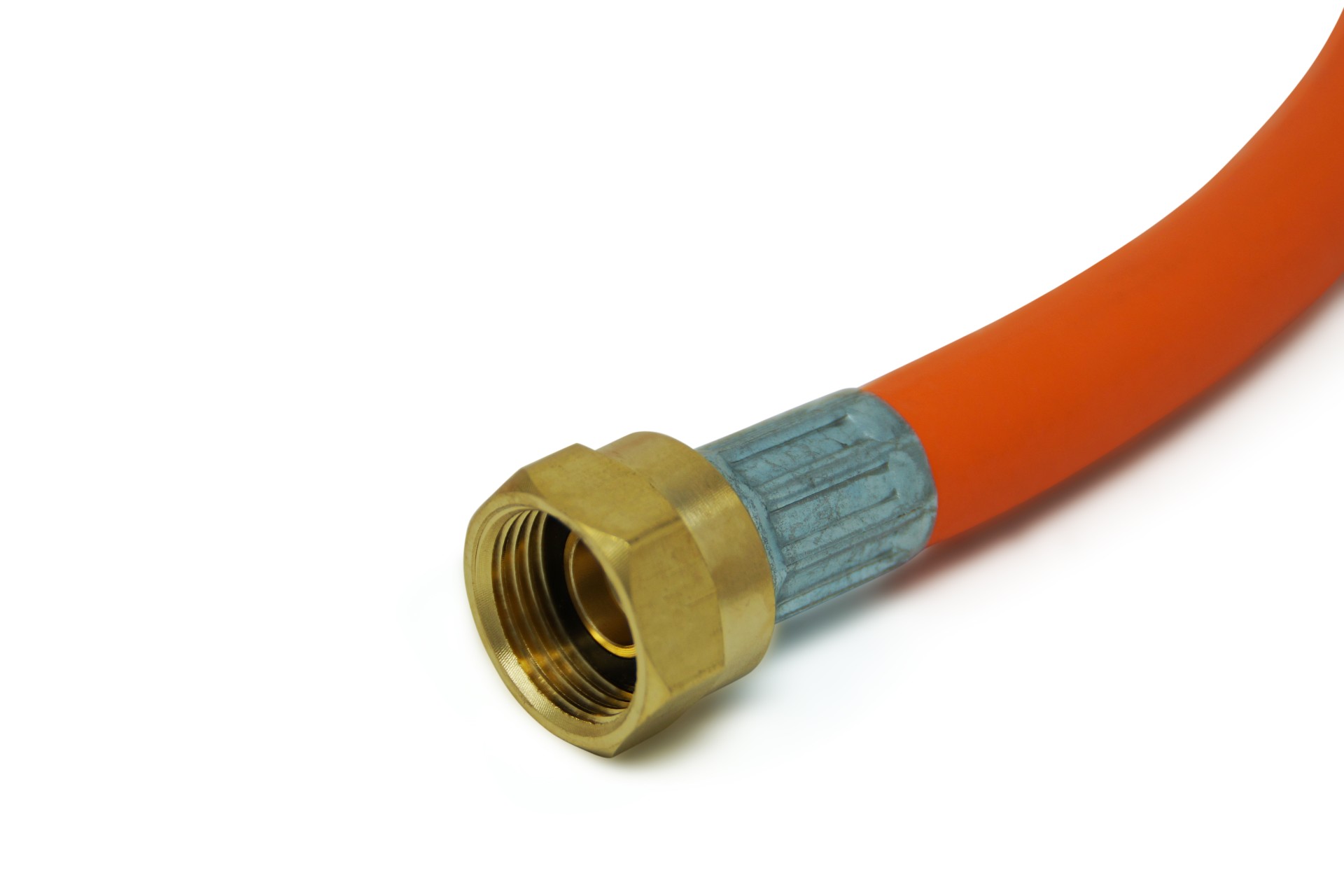

- Product description
2023 production!
The 30 bar gas hose is used in motorhomes, campers or caravans to connect the gas supply (LPG - propane/butane).
The connection is made on one side to the refillable gas bottle/gas tank bottle and on the other side to the lpg regulator (e.g. GOK, Truma Mono- or Doucontrol, Multimatik or similar) or a gas filter (e.g. CAMPKO, Truma or GOK) upstream of the gas pressure regulator, which also has an M20 external thread.
The gas hose is equipped with a hose rupture safety device. The integrated overflow valve (EFV) automatically interrupts the gas flow as soon as the nominal pressure is exceeded by 10%.
Technical data
Inlet G.8 W21.8 x 1.814 - L.H.
Outlet M20x1.5 union nut
Length 750 mm
Application among others Spain, Denmark, Netherlands, Norway, Hungary, Czech Republic, Slovakia, Ireland, Croatia
Approval according to EN16436 Class 3
Maximum permissible pressure 30 bar
Inner diameter 6.3 mm
Cold-resistant - 30°
Leak-tight -30°C - + 50°C
Tensile force for loosening the connections >300 kg
Brass connection fittings
Safety instructions and warnings
Safety instructions for [2023] High pressure gas hose G.8 W21.8 x 1.814 - L.H. x M20x1.5 - 750 mm incl. hose rupture protection:
1. follow the manufacturer's instructions before using the gas hose.
2. ensure that the gas hose is suitable for the intended use.
3. regularly check the condition of the gas hose for damage, wear or leaks. If defects are found, the gas hose must no longer be used and must be replaced.
4 Only use the gas hose with suitable gas supply systems and appliances.
5 Ensure that the gas hose is connected correctly and that there are no leaks.
6. keep the gas hose away from heat sources, naked flames or other potential sources of danger.
7. avoid excessive bending or twisting of the gas hose, as this can lead to damage.
8. ensure that the gas hose does not come into contact with sharp objects to prevent tearing or puncturing.
9. store the gas hose in a dry and well-ventilated place, away from aggressive chemicals or other harmful substances.
10. read all relevant safety instructions and operating instructions for the gas supply system and appliances used with the gas hose.
11. if you have any questions or uncertainties regarding the use of the gas hose, please contact the manufacturer or a qualified specialist.
