Votronic LCD Thermometer / Clock S (with external sensor)
Votronic LCD Thermometer / Clock S (with external sensor)
Votronic LCD Thermometer / Clock S (with external sensor)
Votronic LCD Thermometer / Clock S (with external sensor)

Votronic LCD Thermometer / Clock S (with external sensor)

Article no.: 116024A
Manufacturer: Votronic

Offer is exclusively for commercial customers. Prices are only visible after login.

  • Product description
  • Media & Downloads

This interesting combination of devices consists of a triple thermometer and an accurate quartz clock and is operated from the vehicle's on-board power supply. The low power consumption of the unit and the large LCD display, which is easy to read even from a distance, should be emphasised. In unfavourable lighting conditions, the built-in white backlighting of the display ensures good readability. The thermometer section measures the room temperature through the sensor built into the unit. In addition, external remote measurement is provided by the outdoor sensor supplied. It is mounted outside, e.g. under the front bumper of the vehicle, and can measure the outside temperature here. Another external measuring input 3 is excellently suited, for example, for monitoring the storage of medicines, cool boxes or heat boxes etc. With a measuring resolution of 0.1°C, the measuring ranges of all sensors are -30°C to +70°C. The clock section includes the minutes and hours display in 24-hour display format and the flashing colon for function control. The day of the week is displayed on the bottom line. The clock operates with high accuracy and has a power reserve against power failure.

Optional accessories:

  • Surface-mounted housing for LCD display units (item no. 2024)

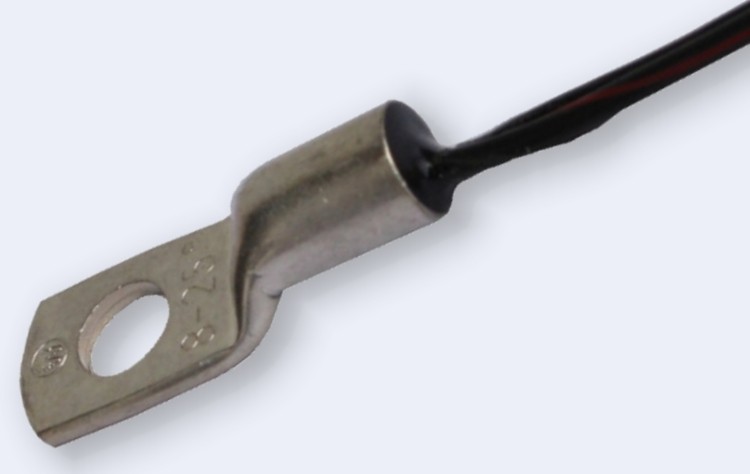

  • Temperature sensor as 2nd outdoor sensor for LCD thermometer / clock S (item no. 2001 or item no. 2085)
Device typeItem no.
No.
Nominal operating
voltage
(operating
volt.)
[V]
Current
consumption
[mA]
Current
Illumination
(can be switched off)
max. [mA]
Temperature
range
Display
[°C]
Dimensions
(W x H x D)
[mm]
Weight
[g]
LCD thermometer / clock S125312 / 24330-30 to +7080 x 85 x 2570
Test mark:CE, E-test (EMC/vehicle directive)
Scope of delivery:1 external sensor, plug-in screw terminals, fixing screws, operating instructions, drilling template
