The Alugas TravelMate is the LPG tank for motorhomes, camper vans and caravans that can be safely retrofitted by workshops in a short space of time. The highlight of the refillable gas bottle is that campers can abandon the Europe-wide complex system of exchanging heavy gas bottles and refuel with LPG freely and flexibly at any petrol station. This not only saves them travelling to the DIY store, but above all gives them freedom and flexibility. The cylinder can simply be refuelled at any filling level. This means that before the campers want to be self-sufficient on the road, the LPG tank is filled up again. This puts an end to worrying about the remaining gas and the space-consuming reserve bottle.
The Alugas TravelMate refillable gas cylinder is supplied pre-assembled with a so-called multivalve. In addition to all the necessary safety features, the valve also offers the so-called 80% fill stop, which makes refuelling possible at any fill level.

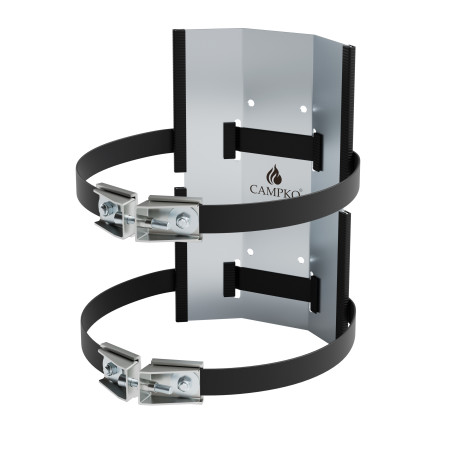

A wide range of accessories is available for optional selection, including a mounting bracket or a remote display.
Technical data
| material | aluminium |
| Service life | 10 years Test interval |
| 80% filling stop | included |
| Safety valve | 27 bar pressure relief valve |
| Empty weight | 6.60 kg |
| Filling & removal | separate |
| Filling level indicator | electronic possible |
| Remote display | possible |
| Input | 1/2" male thread |
| Outlet | Small cylinder connection (KLF) According to EN15252: G.12 = W21.8 x 1/14 LH With seal |
| Volume (gross) | 27.20 litres |
| Volume (net) | 21.76 litres |
| Total height | 597 mm |
| Height without collar | 557 mm |
| Diameter | 300 mm |
| Homologation | PED 2014/68/EU; EN 13110:2012 |
Safety instructions and warnings
Further information can be found in the linked media and download files.
Manufacturer contact information
Manufacturer
ALUGAS Sales Centre GmbH
Industrial Park Pferdsfeld 214
D-55566 Bad Sobernheim
info@alugas.de
Operating instructions ALUGAS TRAVELMate (German)
Operating instructions ALUGAS TRAVELMate (English)
Operating instructions ALUGAS TRAVELMate (Spanish)
ALUGAS TRAVELMate operating instructions (French)
ALUGAS TRAVELMate operating instructions (Italian)
ALUGAS TRAVELMate operating instructions (Portuguese)
ALUGAS TRAVELMate operating instructions (Swedish)
ALUGAS TRAVELMate operating instructions (Polish)
ALUGAS TRAVELMate operating instructions (Turkish)
ALUGAS TRAVELMate operating instructions (Dutch)
ALUGAS TRAVELMate operating instructions (Danish)
Operating instructions ALUGAS TRAVELMate (Czech)
Assembly instructions ALUGAS TRAVELMate refillable gas bottle (English)
