- Product description
The Blue Smart IP65 charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 charger can be used for equipment in your workshop and for motor vehicles such as (classic) cars, motorbikes, boats and motorhomes.
The battery is charged, intelligently... in perfect condition
The seven-stage charging algorithm gets the best out of your battery. The charger gives the battery the energy it needs, maintains its health, ensures better performance... and a longer service life.
Recovery of deeply discharged "toter" batteries
Unlike other brands, the Blue Smart IP65 charger attempts to recharge a deeply discharged battery by force charging it with a low current. The normal charging process is then resumed as soon as sufficient voltage is applied to the battery terminals.

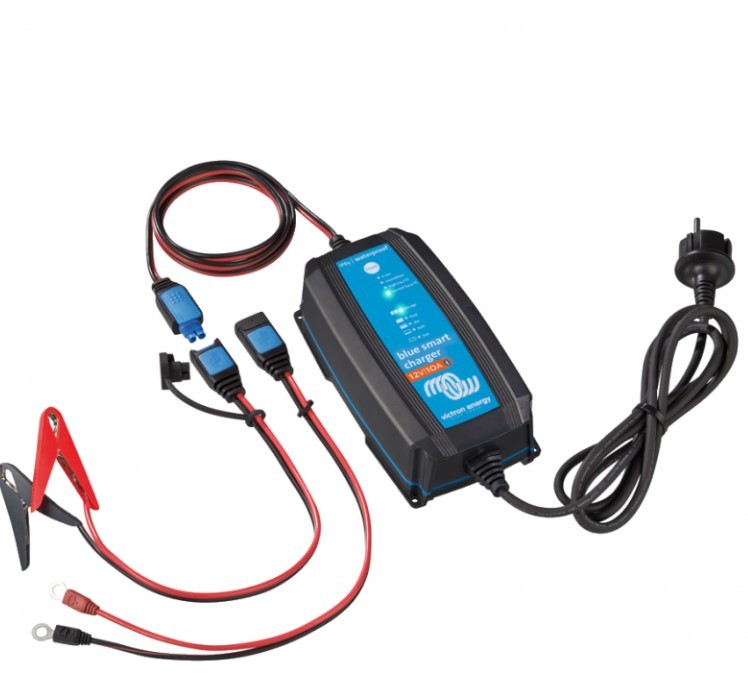

The charger is supplied with both crocodile clips and M8 eyelets to facilitate connection to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with integrated Bluetooth so that the status of the charger and battery can be checked on a smartphone, tablet or laptop. All charger settings can be configured using the VictronConnect app.
Features that characterise the product:
- Automatic power supply function
- Severe cooling capacity: Up to -30°C
- Various other functions to extend battery life
- Water, dust and chemical resistant
- Seven-stage intelligent charging algorithm
- Recovery of fully discharged "toter" batteries
- Low-power mode for charging smaller batteries
- Li-ion battery mode
- Set-up and configuration, voltage and current readout via Bluetooth Smart
Technical specifications
Battery technology: AGM; Classic; Gel; Lithium Ion
Max. Efficiency [%]: 94
Nominal voltage of the battery [V]: 12
Input voltage range AC [V]: 230
Charging voltage, absorption [V]: 14.4 / 14.7 / 14.2
Charging voltage, float [V]: 13.8 / 13.8 / 13.5
Charging voltage, storage [V]: 13.2 / 13.2 / 13.5
Nominal charging current [A]: 10
Weight [kg]: 0.9
Dimensions [mm]: 105 x 60 x 190
Communication type: Bluetooth
Product warranty: 5 years
Safety instructions and warnings
Safety instructions for Victron Energy Blue Smart Charger IP65 12/10(1) 230 V CEE 7/16 R
1. read the operating instructions and all safety instructions carefully before using the charger.
2. ensure that the charger is properly connected to a suitable power source
3 Only use the charger in accordance with the manufacturer's instructions.
4. keep the charger away from water and other liquids.
5. do not touch the charger with wet hands.
6. do not overload the charger and do not use it for purposes other than those for which it is intended.
7. do not connect the charger to damaged cables or sockets.
8. do not use the charger if it is visibly damaged.
9. do not leave the charger unattended during the charging process.
10. keep the charger and cables away from flammable materials.
11. keep the charger out of the reach of children and pets.
12. switch off the charger before cleaning it or carrying out maintenance work.
13 Only use spare parts and accessories authorised by the manufacturer.
14 If problems or damage occur, contact the manufacturer or authorised customer service.
15. observe all other safety instructions provided by the manufacturer.
