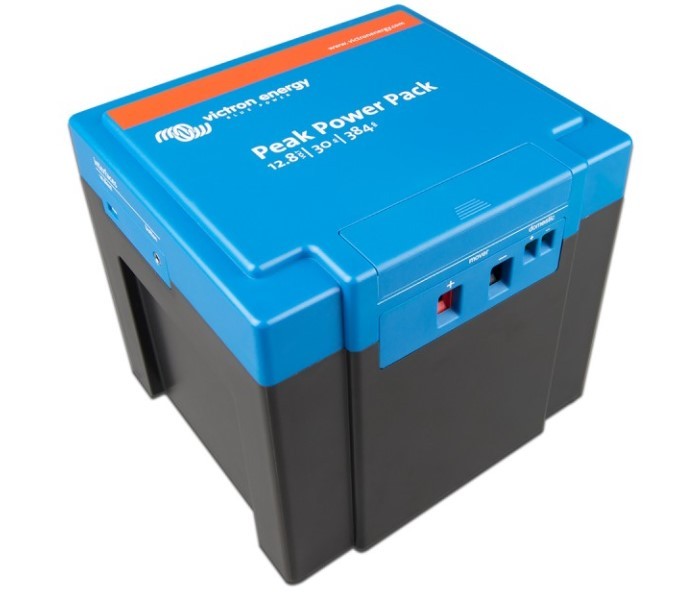

Victron Energy Peak Power Pack 12.8 V/30 Ah-384 Wh battery

The Peak Power Pack isa fully-fledged replacement for heavy lead-acid batteries in applications where high currents occur for short periods. As it is primarily intended for caravan drivers, it is equipped with a built-in charger that enables charging via the on-board power supply while travelling with the caravan. This way, the battery is fully charged when you arrive at the campsite. If necessary, the battery can be charged via a socket using the adapter supplied. Charging via a solar panel is also possible.

Features that characterise the product:

• Lightweight, high-performance battery
• Space-saving small size
• System monitoring via phone app (optional)
• It is maintenance-free
• Built-in solar control and charging unit
• Can be stored for a year - low self-discharge
• Adjustment function for extremely long service life
• Lithium-ion system with internal charger

Easy handling

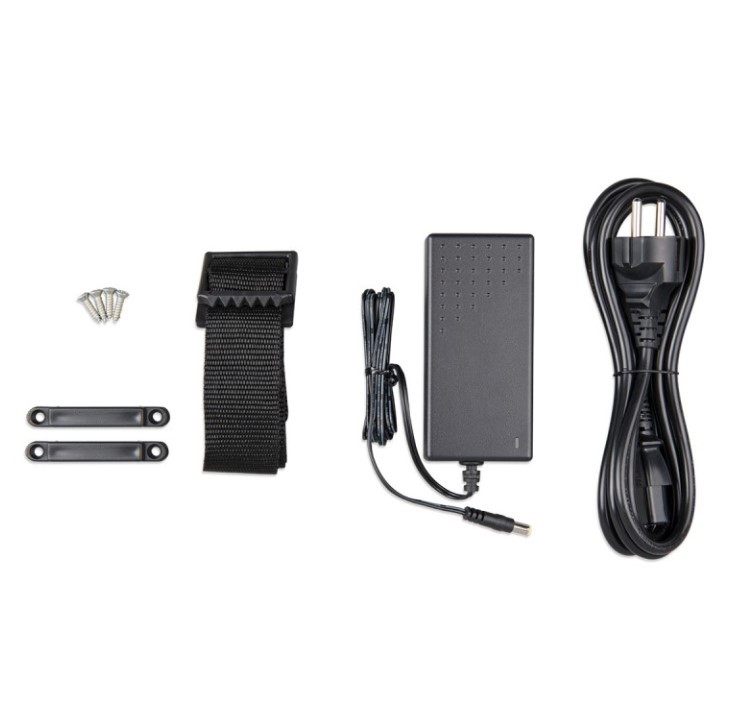

The Peak Power Pack can be charged in the car as well as via solar cells or the mains connection at home or on the campsite. Thanks to the possibility of connecting the Peak Power Pack to the car's power supply, the battery is charged on the way to the destination, and the supplied cable set makes the whole process much easier. The set also includes a remote control with a two-colour LED indicator that shows the battery charge status.

Memory mode

Reduces power consumption to almost zero. Prevents damage caused by excessive discharge of the battery during storage.

Flexible charging

Peak Power Pack can charge in two ways. Input 1 "Car/Solar": Charging while driving or charging with a solar panel. Input 2 "Adapter": the adapter supplied with the Peak Power Pack can be connected to this input; battery charging current: 3 A, and suitable for 110/230 V power supply.

Two power outputs:

• Mover - high capacity output for manoeuvring caravans and other energy intensive applications; 8 Ah version is for lighter caravans. 20 Ah or more is recommended for caravans over 1000kg
• Household - output for low DC loads (not available for the 8Ah model) intended for lighting, audio and video, pumps, refrigerators

Fully protected against misuse

Peak Power Pack is an excellent performer in solar and other applications where frequent deep discharge and inadequate recharging would quickly damage lead-acid batteries.

Technical specifications

Battery technology: Lithium-ion

Nominal battery voltage [V]: 12.8

Battery charging voltage [V]: 11 - 25

Short-circuit current [A]: 300

Maximum output current (10 seconds) [A]: 200

Continuous output current [A]: 150

Maximum charging current [A]: 7

Usable battery capacity [kWh]: 384

Weight [kg]: 5.4

Dimensions [mm]: 190 x 172 x 172

Type of communication: VE.Direct

Product warranty: 5 years
