- Product description

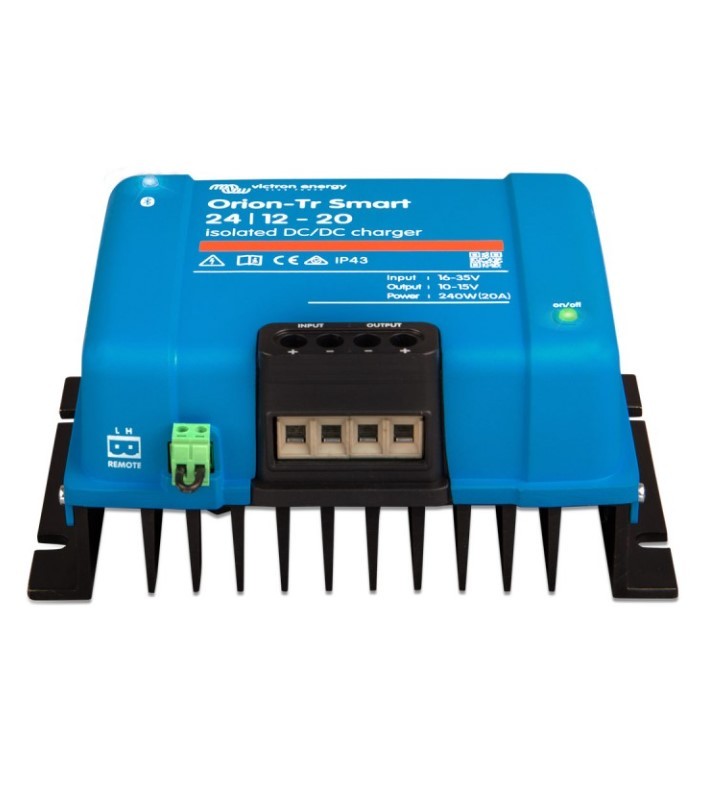

The Orion-Tr Smart DC-DC charger isa professional, adaptive 3-stage DC-DC charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the (smart) dynamo and the starter battery are used to charge the service battery. The device can be monitored and programmed via Bluetooth and can be remotely controlled via an on/off switch and has an engine running detection mechanism.
The Orion Tr-Smart charger can be used in 12 V or 24 V systems and is suitable for both lead-acid and lithium batteries. Models up to 400 W are available and an unlimited number of units can be connected in parallel to increase the output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Technical data
Power [W]: 240
Max. Efficiency [%]: 88
Input voltage range DC [V]: 16 - 35
Initial input voltage [V]: 15
Approximate switch-off voltage [V]: 14
Short-circuit current [A]: 50
Continuous output current [A]: 20
Weight [kg]: 1.3
Dimensions [mm]: 186 x 130 x 70
DC output voltage [V]: 12.2
DC output voltage range [V]: 10 - 15
Communication type: Bluetooth
Product warranty: 5 years
Safety instructions and warnings
Safety instructions for Victron Energy Orion-Tr Smart 24/12-20 A Isolated charger:
1. general safety instructions:
- Read the operating instructions carefully before installing and using the charger. - Ensure that the charger is properly earthed to minimise the risk of electric shock. - Only use the charger in a well-ventilated area to avoid overheating. - Ensure that the charger is not immersed in water or other liquids. - Do not use the charger near flammable materials. - Keep the charger away from children to avoid accidental injury.2. operating instructions:
- Before connecting the charger, check that the voltage and current match the requirements of the device to be charged. - Only use the supplied cables and connectors to establish a safe connection. - Switch off the charger before connecting or disconnecting it. - Make sure that the batteries you wish to charge are suitable for the charger. - Never charge damaged or leaking batteries. - Do not use the charger in the vicinity of flammable gases or vapours. - Monitor the charging process regularly and interrupt it if there are signs of overheating or other faults.3. maintenance and cleaning instructions:
- Disconnect the charger from the power supply before cleaning. - Use a soft, dry cloth to clean the charger. Avoid using water or cleaning agents. - Regularly check the connections, cables and the condition of the charger. These parts should be replaced if they are damaged or worn.Important note:
These safety and operating instructions are to be understood as general guidelines and may differ from the manufacturer's specific instructions. Therefore, always read the manufacturer's information and instructions supplied to ensure that you use the Victron Energy Orion-Tr Smart 24/12-20 A Isolated Charger safely and correctly.Manufacturer contact information
Manufacturer Contact
Victron Energy B.V.
De Paal 35
1351 JG Almere
The Netherlands
