Single for manifold.
The HANA H2100 is a high flow rate injector. High flow rates (250-473L) are suitable for high performance engines or truck engines over 3000cc. The H2100 injector is designed for 12V and 24V and is only supplied in the universal GOLD (nozzle mountable) version.
Internal design improvements have resulted in short injector open and close times of 1.2 ms, with excellent flow controllability and a wide stability range.

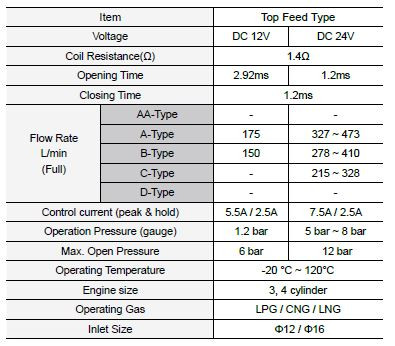

For technical specifications, see click here!
| Operating pressure | 5 - 8 bar |
| Maximum pressure | 12 bar |
| Operating voltage | 24V DC |
| Flow rate L/min | A-type: 327-473 B-type: 278-410 C-type: 215-328 |
| Control current (peak & hold) | 7.5A/2. 5A |
| Temperature range | -20°C - 120°C |
| Resistance | 1.4 Ohm |
| Operating gas | LPG / CNG / LNG |
| Open | 1.2 ms |
| Close | 1.2 ms |
| Homologation number | E11 67R-01 0251; E11 110R-00 0501 |
