140W monocrystal SUNPOWER solar complete system for motorhome, complete solar panel camping for motorhome, camper, caravan including solar charge controller. All components of this monocrystalline solar complete system are matched to each other.
High performance solar modules equipped with SUNPOWER cells, the most efficient technology for solar production on the market. These very high quality solar cells enable up to 35% higher efficiency compared to a conventional panel.
In addition, these cells are unsurpassed in durability, with a lifespan of up to 25 years with no loss of power.

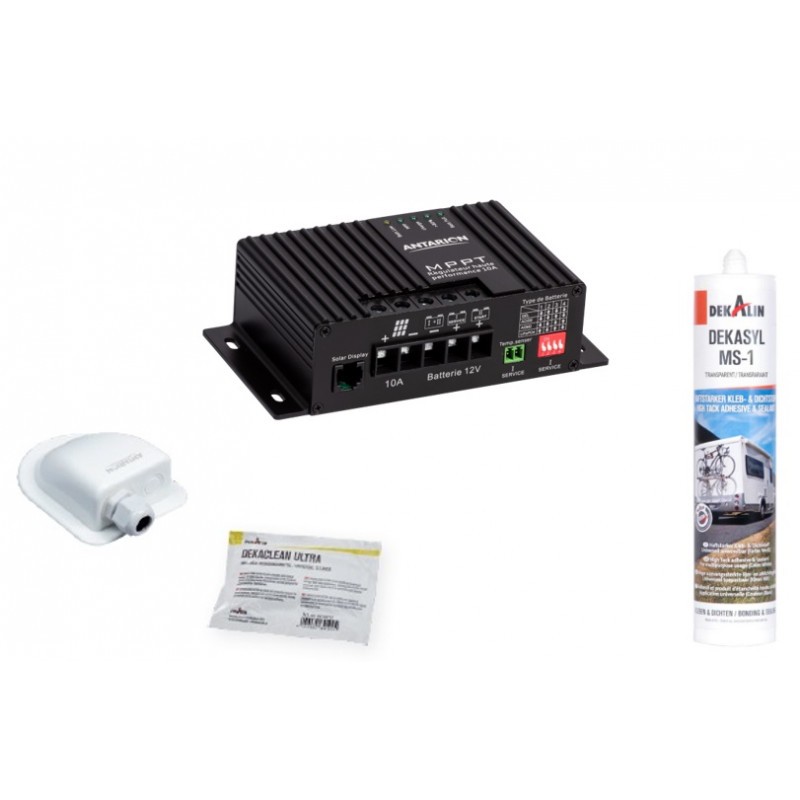

- Camping solar panels come as a complete mounting kit with a MPPT solar charge controller, 5 meters of wiring, Dekalin MS-1 adhesive and Dekaclean
- Riffled mounting tabs made of anodized aluminum to improve the panel's adhesion when glued to the roof.
- Waterproof junction box for a high level of safety.
- High power bypass diodes to minimize the power drop when the sunlight is low.
- Protection made of special tempered glass that can withstand the weather conditions.
- Row or parallel connection possible and unlimited
Instructions for installation
- Pull a new power supply directly from the battery for each solar panel.
- Do not use existing circuits or go through existing equipment and/or terminal blocks.
- Do not use existing circuit breakers.
- Each pulled feed must have a suitable fuse on the "+" line. This fuse must be placed as close as possible to the battery.
- Any product with electronic elements must be protected against undervoltage (below 11 volts) and overvoltage (above 15 volts).
Bonding the solar panel
We recommend using Dekalin MS1 adhesive, following the preparation instructions.
- Temperature condition for the use of the adhesive: between 10 and 25°C.
- Sand the surfaces to be bonded with sandpaper (medium grit).
- Clean the surface with a product recommended by the adhesive manufacturer (Dekaclean by Dekalin)
- In the case of a flexible solar panel: Glue the entire outer perimeter of the panel with a net of glue.
Loose (width1 cm ) without interruption. Under no circumstances should you place individual large dots of glue.
This could damage the cells of the panel (the warranty for the panel will be voided, cannot be claimed).
- For a rigid solar panel: Glue the mounting tabs generously to both ends of the panel.
At the ends of the panel. A thickness of +/- 3 mm should remain.
- Apply medium pressure to the solar panel. There should remain a thickness of +/- 3 mm.
- Drying time: 24 hours
Power 140 watts
Technology SunPower
Solar charge controller MPPT10
Nominal voltage (volts) 24.8
Nominal current (amps) 5.65
Voltage max (volts) 29.18
Voltage max. (Amps) 5.98
Daily production (Amps)* 38.31
Dimensions 1340x540x60 mm
Weight 12 Kg
Manufacturer warranty 10 years
*This result was calculated based on average annual solar radiation in France during spring/summer.
