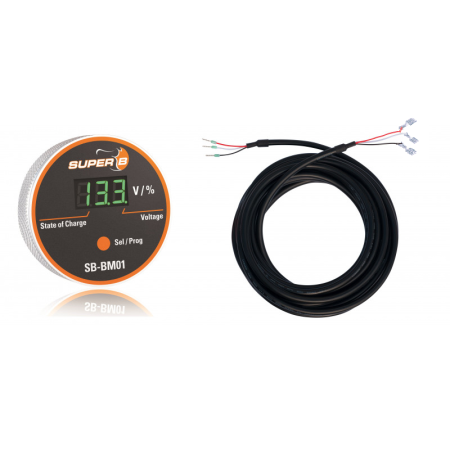

Standard display with 5 m cable for EPSILON 100/150 Ah B battery. The display shows the voltage and state of charge of the supply battery in the motorhome.
Supply voltage (Bat 1) 6 VDC to 31 VDC
Signal voltage (Bat 2) 0 VDC to 12 VDC
Current consumption - display on ± 20 mA
Current consumption- display off ± 8 mA
Minimum cable diameter 0. 75 mm2
Mounting holes 55 mm / 2.16"
Installation depth 18 mm / 0.7"
Weight 57.8g / 0.12lbs
