- Product description
The Blue Smart IP65 charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 charger can be used for equipment in your workshop and for motor vehicles such as (classic) cars, motorbikes, boats and motorhomes.
The battery is charged, intelligently... in perfect condition
The seven-stage charging algorithm gets the best out of your battery. The charger gives the battery the energy it needs, maintains its health, ensures better performance... and a longer service life.
Recovery of deeply discharged "toter" batteries
Unlike other brands, the Blue Smart IP65 charger attempts to recharge a deeply discharged battery by force charging it with a low current. The normal charging process is then resumed as soon as sufficient voltage is applied to the battery terminals.
The charger is supplied with both crocodile clips and M8 eyelets to facilitate connection to the battery. If you wish, you can leave it permanently connected.

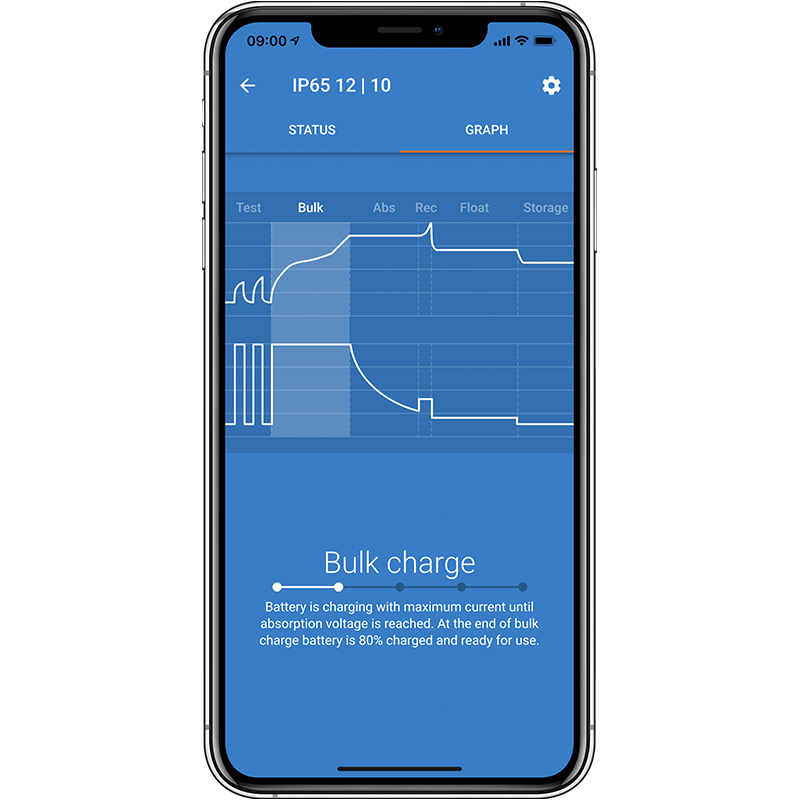

Check the status of your battery remotely
The Blue Smart IP65 is equipped with integrated Bluetooth so that the status of the charger and battery can be checked on a smartphone, tablet or laptop. All charger settings can be configured using the VictronConnect app.
Features that characterise the product:
- Automatic power supply function
- Severe cooling capacity: Up to -30°C
- Various other functions to extend battery life
- Water, dust and chemical resistant
- Seven-stage intelligent charging algorithm
- Recovery of fully discharged "toter" batteries
- Low-power mode for charging smaller batteries
- Li-ion battery mode
- Set-up and configuration, voltage and current readout via Bluetooth Smart
Technical specifications
Battery technology: AGM; Classic; Gel; Lithium Ion
Max. Efficiency [%]: 94
Nominal voltage of the battery [V]: 12
Input voltage range AC [V]: 230
Charging voltage, absorption [V]: 14.4 / 14.7 / 14.2
Charging voltage, float [V]: 13.8 / 13.8 / 13.5
Charging voltage, storage [V]: 13.2 / 13.2 / 13.5
Nominal charging current [A]: 15
Weight [kg]: 0.9
Dimensions [mm]: 105 x 60 x 190
Communication type: Bluetooth
Product warranty: 5 years
Safety instructions and warnings
Safety instructions for Victron Energy Blue Smart IP65 12/15(1) 230V CEE 7/17 R battery charger:
- Please read the operating instructions carefully before using the device.
- Only use the charger in dry, well-ventilated rooms.
- Ensure that the power supply unit is properly earthed.
- Do not use the charger in the vicinity of flammable gases or liquids.
- The charger should be kept away from children.
- Do not use the charger if it is damaged or shows signs of leakage.
- The charger must not be immersed in water or other liquids.
- Only use the charger for its intended purpose.
- The charger should not be used in the vicinity of electronic devices that could be disturbed by electromagnetic radiation.
- The charger should not be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the charger by a person responsible for their safety.
- Remove the charger from the socket when it is not in use.
Manufacturer contact information
The manufacturer
Victron Energy B.V.
De Paal 35
1351 JG Almere
The Netherlands
sales@victronenergy.com
