- Product description
The Blue Smart IP65 charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 charger can be used for equipment in your workshop and for motor vehicles such as (classic) cars, motorbikes, boats and motorhomes.
The battery is charged, intelligently... in perfect condition
The seven-stage charging algorithm gets the best out of your battery. The charger gives the battery the energy it needs, maintains its health, ensures better performance... and a longer service life.
Recovery of deeply discharged "toter" batteries
Unlike other brands, the Blue Smart IP65 charger attempts to recharge a deeply discharged battery by force charging it with a low current. The normal charging process is then resumed as soon as sufficient voltage is applied to the battery terminals.
The charger is supplied with both crocodile clips and M8 eyelets to facilitate connection to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely

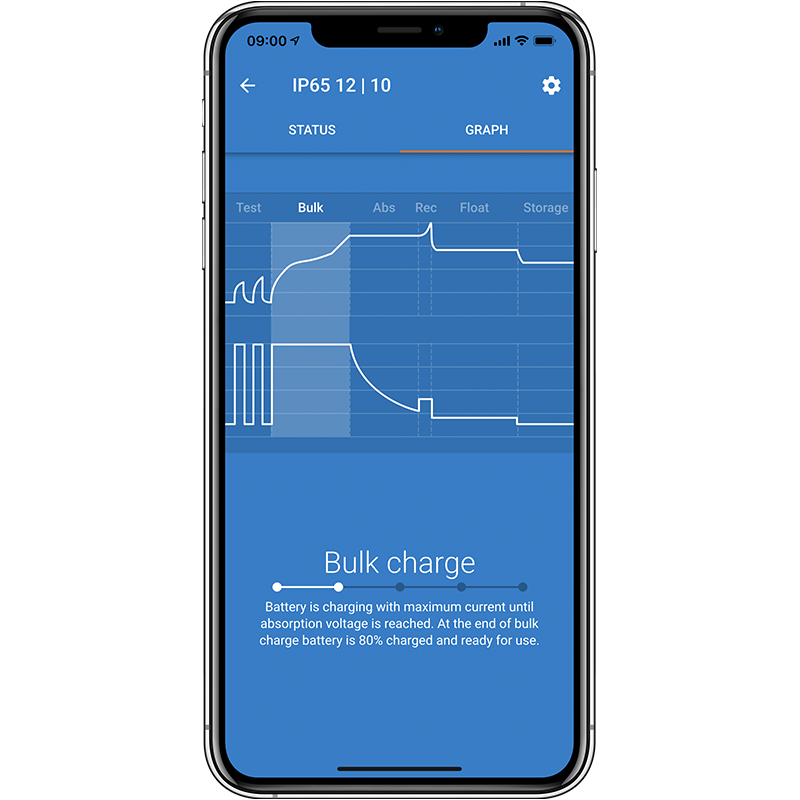

The Blue Smart IP65 is equipped with integrated Bluetooth so that the status of the charger and battery can be checked on a smartphone, tablet or laptop. All charger settings can be configured using the VictronConnect app.
Features that characterise the product:
- Automatic power supply function
- Severe cooling capacity: Up to -30°C
- Various other functions to extend battery life
- Water, dust and chemical resistant
- Seven-stage intelligent charging algorithm
- Recovery of fully discharged "toter" batteries
- Low-power mode for charging smaller batteries
- Li-ion battery mode
- Set-up and configuration, voltage and current readout via Bluetooth Smart
Technical specifications
Battery technology: AGM; Classic; Gel; Lithium Ion
Max. Efficiency [%]: 94
Nominal voltage of the battery [V]: 12
Input voltage range AC [V]: 230
Charging voltage, absorption [V]: 14.4 / 14.7 / 14.2
Charging voltage, float [V]: 13.8 / 13.8 / 13.5
Charging voltage, storage [V]: 13.2 / 13.2 / 13.5
Nominal charging current [A]: 7
Weight [kg]: 0.9
Dimensions [mm]: 95 x 47 x 190
Communication type: Bluetooth
Product warranty: 5 years
Safety instructions and warnings
Safety instructions for Victron Energy Blue Smart IP65 12/7(1) 230V CEE 7/17 R battery charger:
- The device may only be installed and commissioned by qualified specialists.
- The battery must be disconnected from the mains before the charger is connected.
- The connections must be correctly polarised. Ensure that the positive and negative poles are connected correctly.
- Ensure that the charger is placed on a dry, clean and well-ventilated surface.
- Do not use the charger near flammable materials or liquids.
- The charger should not come into contact with water.
- Regularly check the condition of the charger and the cables. The device should be replaced in the event of damage or signs of wear.
