- Product description

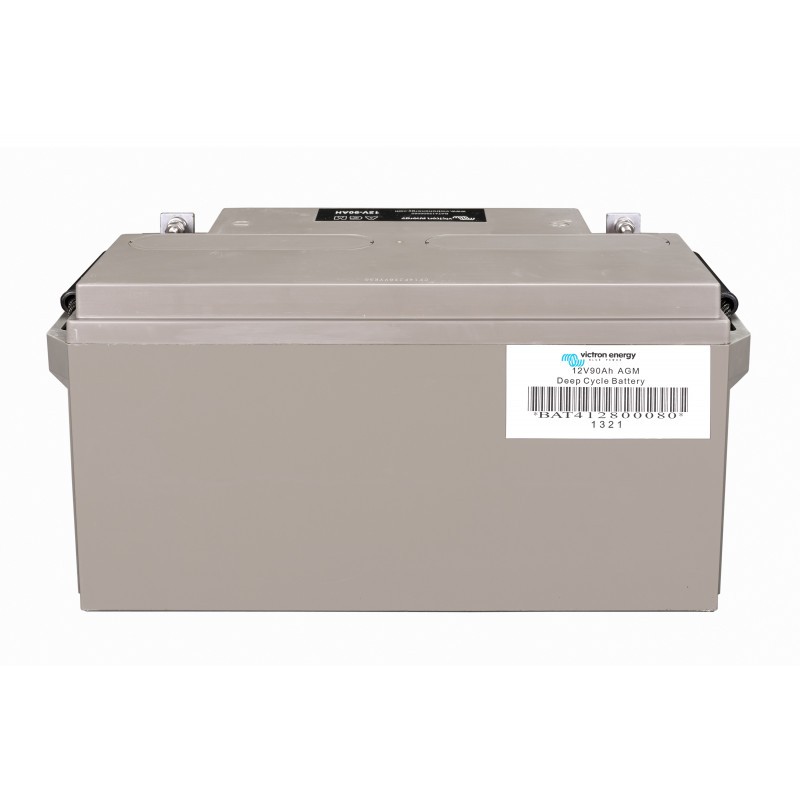

The Victron Energy AGM 12V 90Ah Deep Cycle rechargeable battery is particularly efficient in use and is characterised by its high cycle stability. Thanks to the low internal resistance, this battery is particularly suitable for applications with high current discharge, e.g. solar systems with inverters.
Technical data
Nominal battery voltage12V
Battery capacity90Ah
Dimensions35x 16.7 x 18.3 cm
Weight27kg
Humiditymax.95 % non-condensing
Service life at 20°C7-10years
Cycles at 20°C and 30% discharge1500
Cycles at 20°C and 50% discharge600
Cycles at 20°C and 80% discharge400
Safety and warning information
Safety instructions for Victron Energy AGM 12V 90Ah Deep Cycle rechargeable battery:
1. ensure that the battery is not exposed to direct sunlight.
2. use only the charger supplied or a charger recommended by Victron Energy.
3. ensure that the battery connections are secure and correctly connected.
4. keep the battery away from flammable materials.
5. do not use the battery in an environment with high humidity or at extreme temperatures.
6. observe the specified maximum charging and discharging rate of the battery.
7. keep the battery out of the reach of children.
8. read the manufacturer's complete operating instructions before using the battery.
9. do not overcharge the battery and do not allow it to discharge completely.
10. if the battery is damaged or leaking, stop using it and contact the manufacturer.
