- Product description

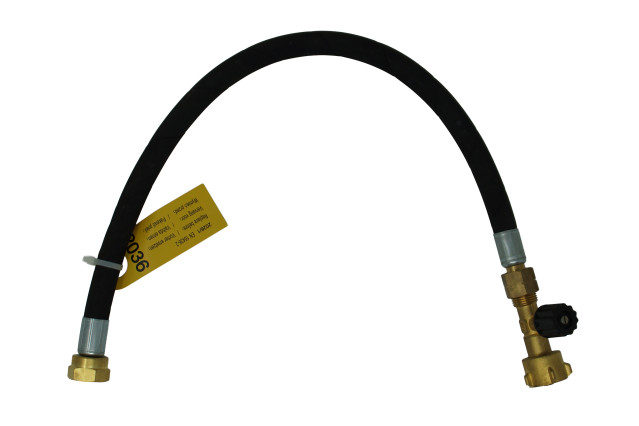

The 30 bar gas hose is used in motorhomes, campers or caravans to connect the gas supply (LPG - propane/butane).
The connection is made on one side to the refillable gas bottle/gas cylinder and on the other side to the lpg regulator (e.g. GOK, Truma Mono- or Doucontrol, Multimatik or similar) or a gas filter (e.g. CAMPKO, Truma or GOK) upstream of the gas pressure regulator, which also has an M20 external thread.
The gas hose is equipped with a hose rupture safety device. The integrated overflow valve (EFV) automatically interrupts the gas flow as soon as the nominal pressure is exceeded by 10%.
Technical data

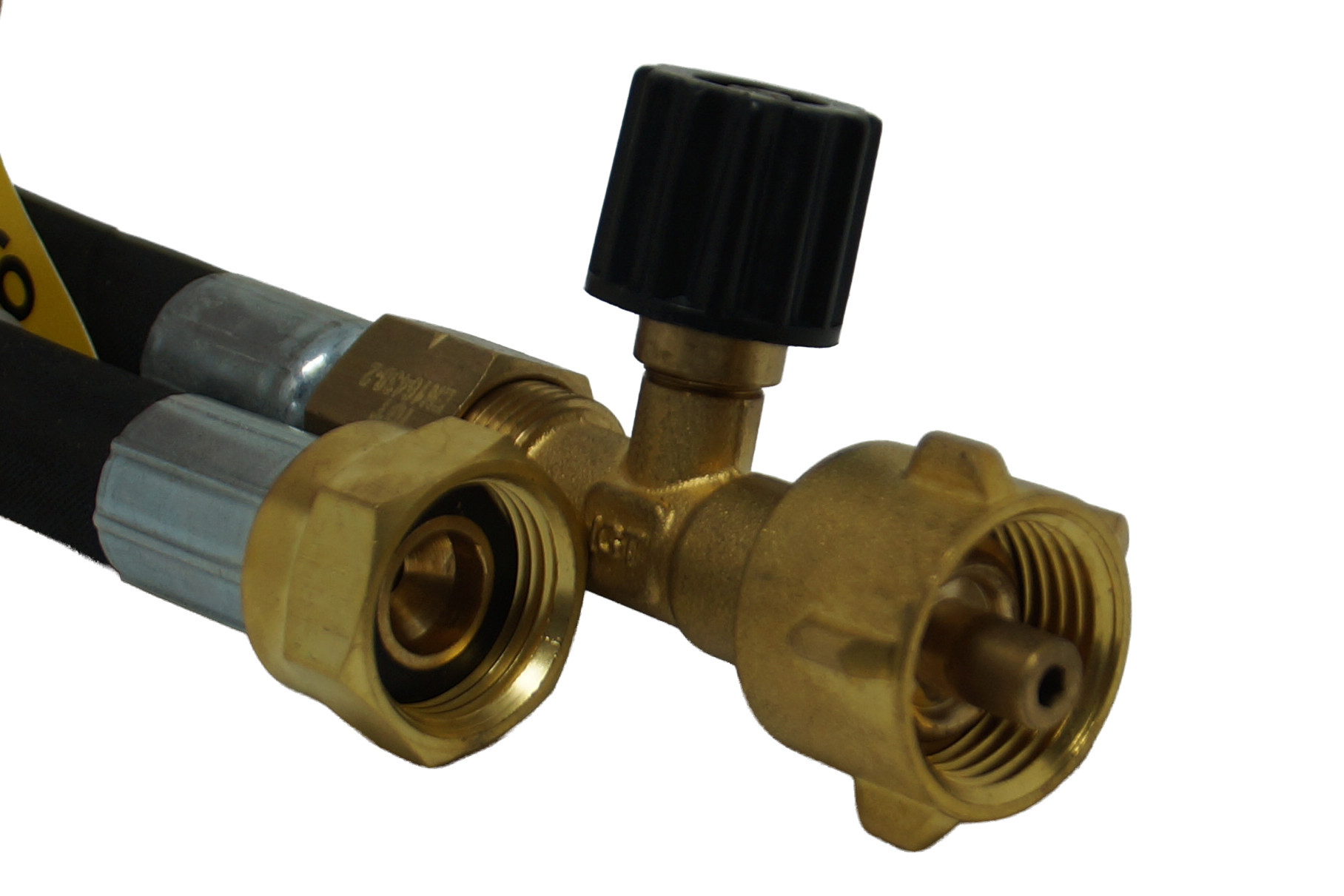

Inlet G.12 W21.8 x 1/14 L.H. (KLF)
Outlet M20x1.5 union nut
Length 450 mm
Application among others Germany, Austria, Poland, Russia
Approval according to EN16436 Class 3
Maximum permissible pressure 30 bar
Inner diameter 6.3 mm
Cold-resistant - 30°
Leak-tight -30°C - + 50°C
Tensile force for loosening the connections >300 kg
Brass connection fittings
Safety instructions and warnings
Safety instructions for high-pressure gas hose G.12 W21.8 x 1/14 L.H. (KLF) x M20x1.5 - 450 mm incl. hose rupture protection:
1. before using the gas hose, check carefully that all connections are tight.
2. avoid any contact of the gas hose with sharp edges or other sharp objects to prevent damage.
3. ensure that the gas hose is not kinked or twisted, as this can lead to leaks.
4. ensure that the gas hose is protected from direct sunlight, heat sources or naked flames.
5 When using the gas hose indoors, ensure that there is sufficient ventilation to minimise the risk of gas accumulation.
6. regularly check the condition of the gas hose and replace it if there are signs of wear, damage or leaks.
7 When using the gas hose, observe the applicable national and regional regulations and safety standards.
8. keep children and pets away from the gas hose to avoid accidents.
9. in the event of a hose rupture, shut off the gas supply immediately and ventilate the area thoroughly before replacing the hose.
10. if you have any questions or uncertainties regarding the use of the gas hose, please consult the manufacturer's instructions or contact the manufacturer.
Manufacturer contact information
Contact manufacturer
Integrated Gas Technologies APS
Gydevang 39-41
3450 Allerød Denmark
E-mail: sales@igt-lpg.com
