- Product description
The 30 bar gas hose is used in motorhomes, campers or caravans to connect the gas supply (LPG - propane/butane).
The connection is made on one side to the refillable gas bottle/gas cylinder and on the other side to the lpg regulator (e.g. GOK, Truma Mono- or Doucontrol, Multimatik or similar) or a gas filter (e.g. CAMPKO, Truma or GOK) upstream of the gas pressure regulator, which also has an M20 external thread.
The gas hose is equipped with a hose rupture safety device. The integrated overflow valve (EFV) automatically interrupts the gas flow as soon as the nominal pressure is exceeded by 10%.
Technical data

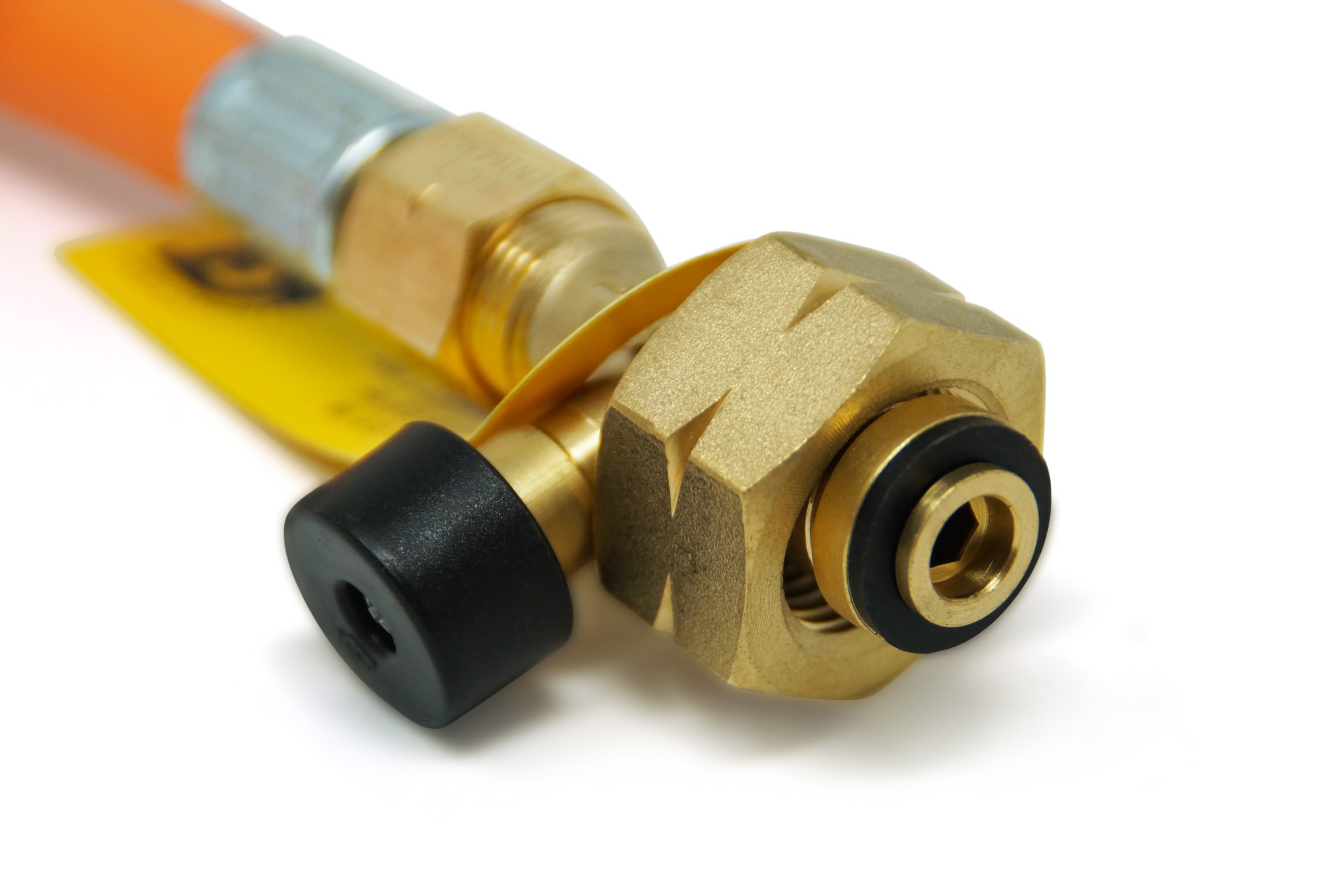

Inlet G.8 W21.8 x 1.814 - L.H.

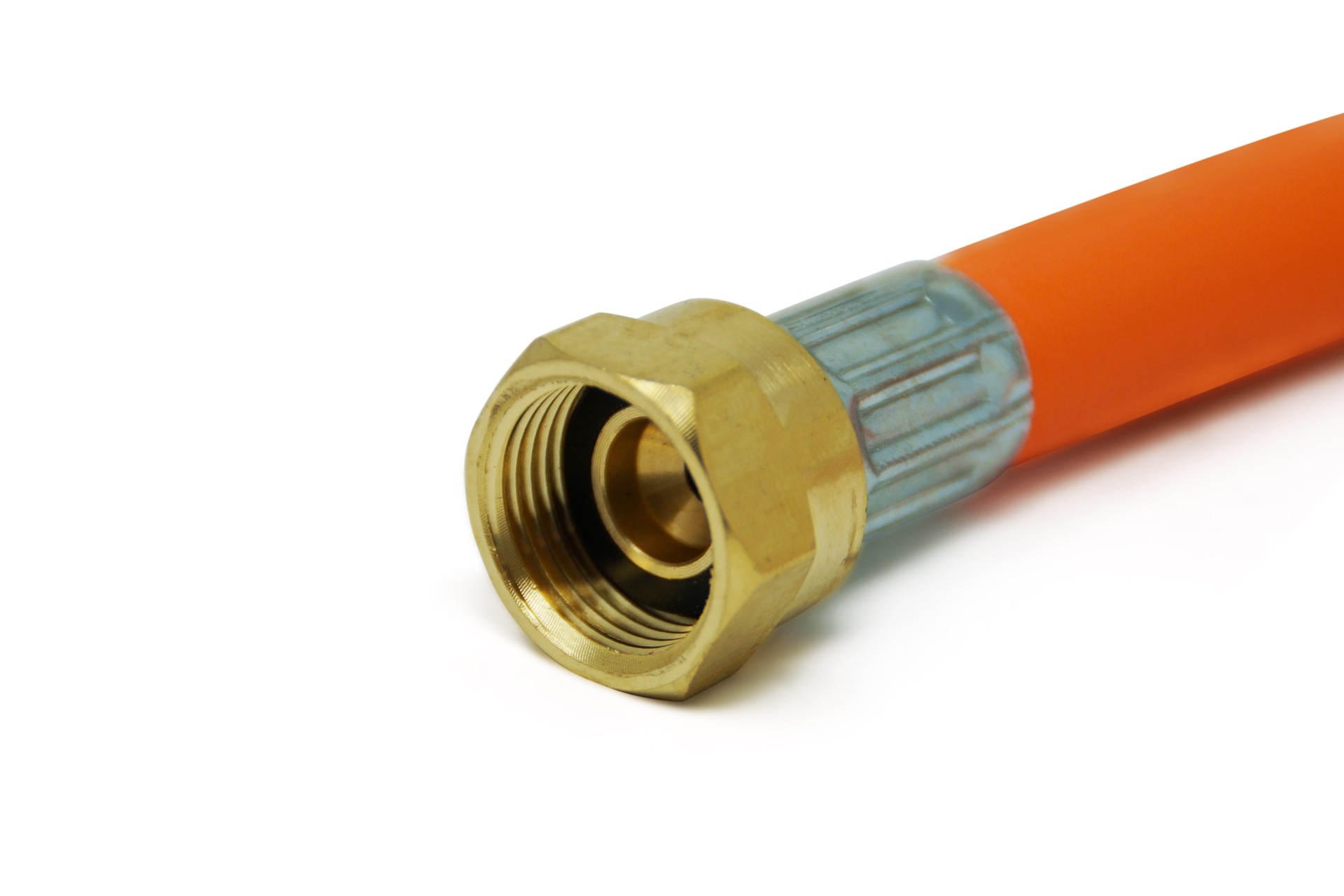

Outlet M20x1.5 union nut
Length 450 mm
Application among others Spain, Denmark, Netherlands, Norway, Hungary, Czech Republic, Slovakia, Ireland, Croatia
Approval according to EN16436 Class 3
Maximum permissible pressure 30 bar
Inner diameter 6.3 mm
Cold-resistant - 30°
Leak-tight -30°C - + 50°C
Tensile force for loosening the connections >300 kg
Brass connection fittings
Safety instructions and warnings
Safety instructions for high-pressure gas hose G.8 W21.8 x 1.814 - L.H. x M20x1.5 - 450 mm incl. hose rupture protection:
1. only use the gas hose in accordance with the manufacturer's instructions.
2. ensure that the gas hose is suitable for the intended use.
3. check the condition of the gas hose for damage or wear before each use.
4. do not use the gas hose if it has cracks, holes or other visible damage.
5. protect the gas hose from sharp edges, heat sources and chemical substances.
6. ensure that the gas hose is connected correctly and is tight.
7. use suitable hose clamps or connections to securely fasten the gas hose.
8. avoid twisting or kinking the gas hose to ensure a proper gas supply.
9. keep the gas hose away from naked flames or other sources of ignition.
10. follow the manufacturer's specific safety instructions for operating the gas hose.
Manufacturer contact information
Contact manufacturer
Integrated Gas Technologies APS
Gydevang 39-41
3450 Allerød Denmark
E-mail: sales@igt-lpg.com
