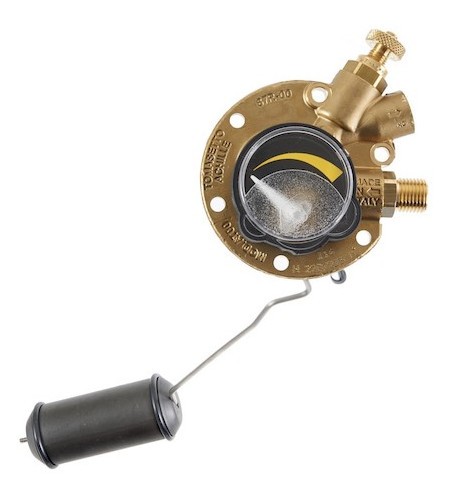

The Tomasetto AT00 LPG multivalves are homologated in accordance with European standard ECE 67R-00.
The Tomasetto multivalve AT02 model has an 80% fill stop valve and an integrated non-return valve to prevent the LPG tank from overfilling and the LPG fuel from flowing back into the tank. The Tomasetto multivalve also has a mechanical service valve that allows the tank contents to be drained in a controlled manner during servicing or maintenance. An LPG tank sensor or tank level sensor can be mounted on the multivalve housing, which transmits the LPG tank level to the LPG fuel gauge inside the vehicle.
As standard, all AT00 multivalves have an 8 mm input - line from the LPG filling valve to the multivalve - and a 6 mm output to the LPG reducer. Multivalves with the model suffix "Extra" also have an 8mm outlet, have a higher flow rate and are suitable for high-performance vehicles.
Tomasetto multivalves for toroidal external tanks are mounted at an installation angle of 0°. The model designation of the AT00 multivalves always indicates a height, abbreviated by "H." and the installation angle as a number of degrees "0°". This information is the easiest way to find the right multivalve for your autogas tank.
Scope of delivery
- Screw set (attachment to the tank)
- Compression fitting for inlet and outlet
- Protective housing
Model type : Standard 6mm
Compatible LPG tank : Toroidal external LPG tank
Installation angle: 0°
Inlet: M12x1 male thread
Outlet: M10x1 female thread
Gas flow in multivalves: 3,0mm
Voltage solenoid coil: none available
