- Product description

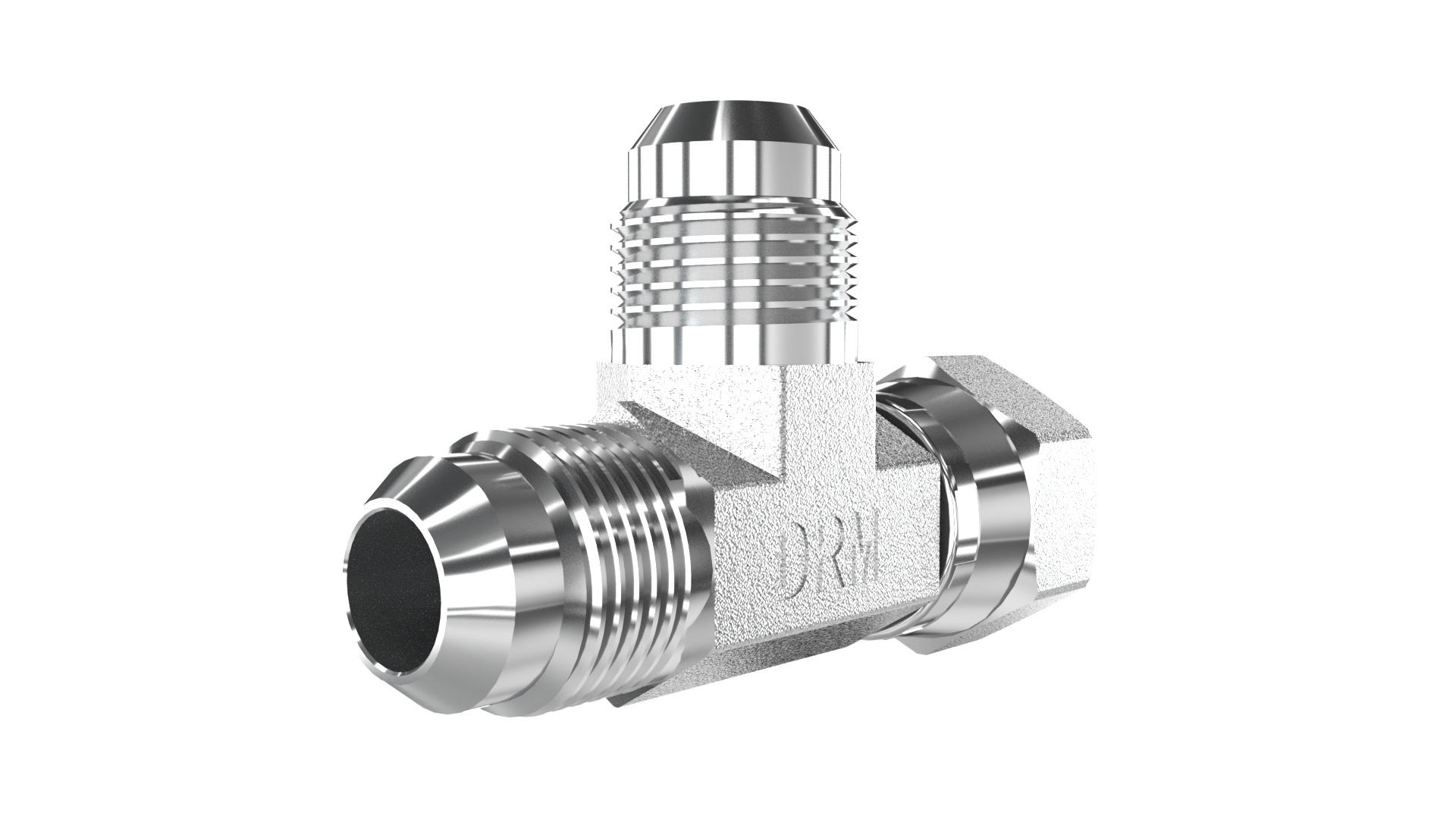

DREHMEISTER T-piece 3/4"-16 UNF thread for LPG filling hose - enables the simultaneous refuelling of two gas cylinders orLPG tanks. The T-piece can be attached to the cylinder or tank side as well as to the filling valve. ©HybridSupply

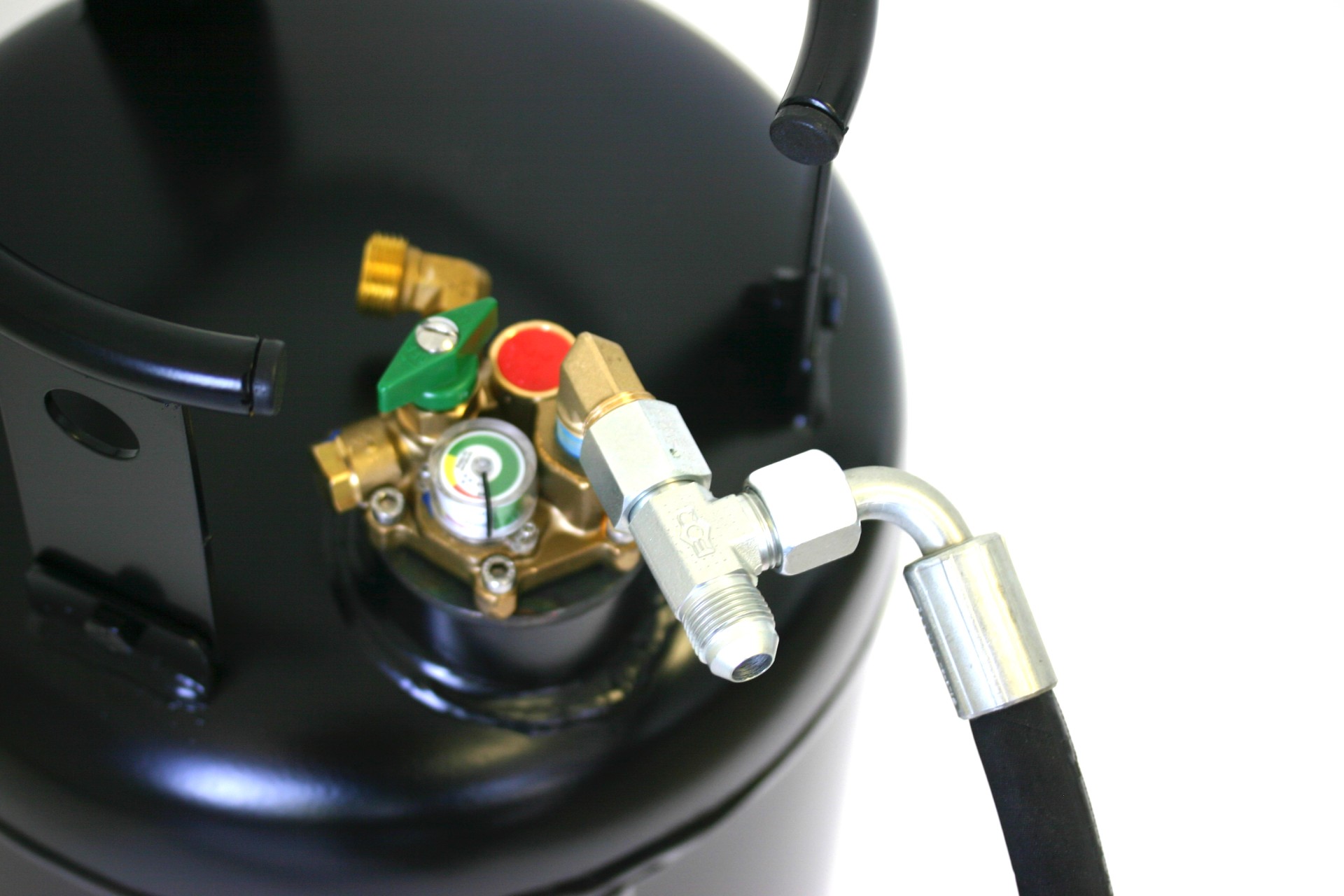

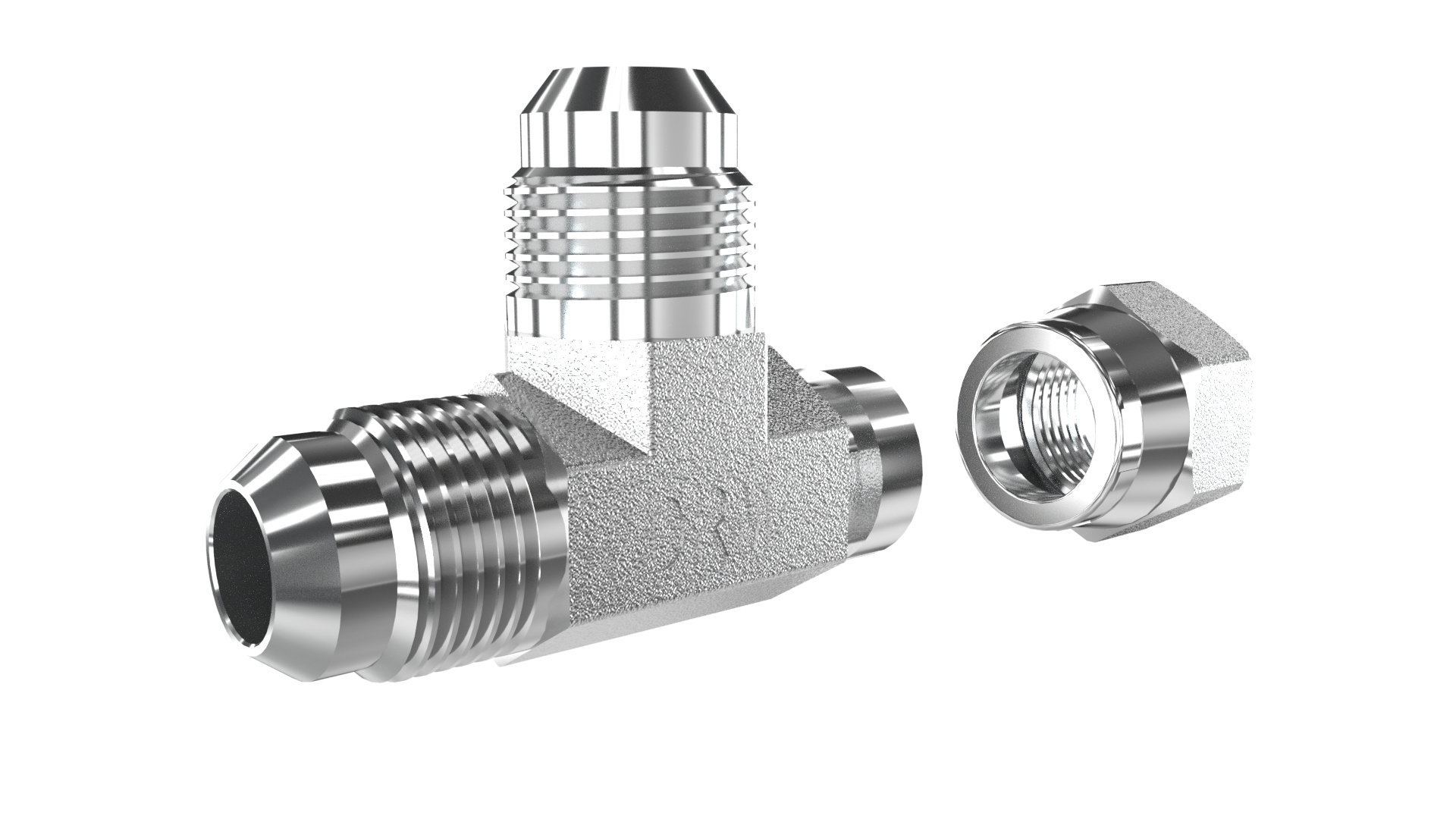

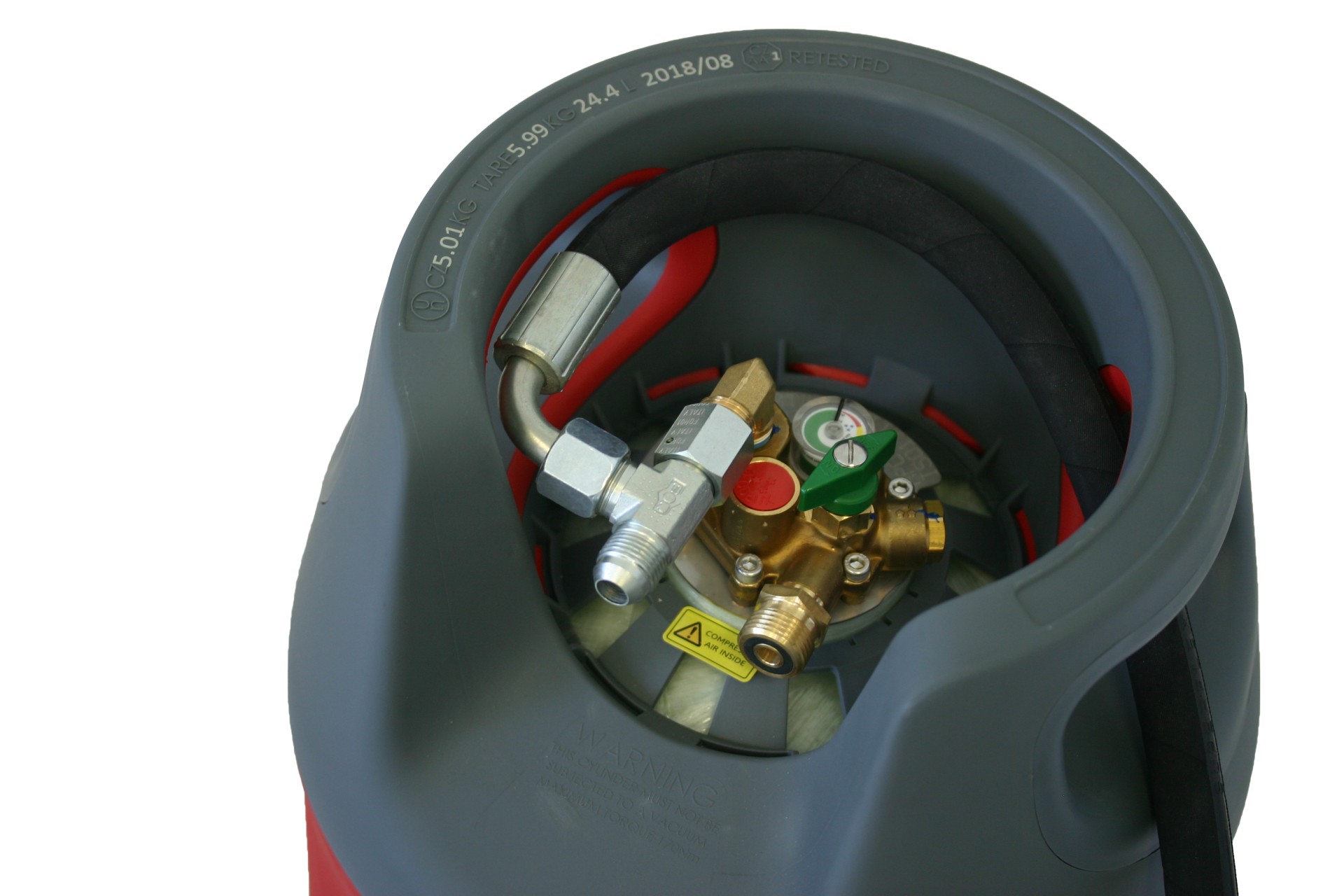

This T-piece is equipped with two 3/4"-16 UNF external threads and a 3/4"-16 UNF internal thread and is used to connect LPG fuelling hoses. It is often used to connect an LPG filling point to two refillable gas bottles operated in parallel. ©HybridSupply
DREHMEISTER products are made from high-quality materials and are characterised by precise workmanship. This ensures optimum fitting accuracy, high tightness and maximum safety when refuelling LPG.
Technical data:
- Thread: 2x 3/4"-16 UNF male thread, 1x 3/4"-16 UNF female thread
- Material: brass
- Dimensions: 50 mm x 40 mm x 20 mm
- Weight: 150 g
- Maximum operating pressure: 30 bar
- Temperature range: -20 °C to +70 °C
Application examples:
- LPG vehicles: Enables twoLPG tanks to be filled at the same time.
- Motorhomes & campers: Ideal for filling two LPG gas cylinders at the same time.
Scope of delivery:
- 1x DREHMEISTER T-piece 3/4"-16 UNF thread
©HybridSupply
Safety instructions and warnings
- Professional installation: The T-piece may only be installed by qualified personnel. ©HybridSupply
- Check before use: Ensure that the T-piece is free from damage or contamination. Damaged parts must not be used.
- Ensure tightness: After installation, check all connections for leaks to prevent gas leaks.
- Observe the operating temperature: The T-piece is designed for a temperature range of -20 °C to +70 °C. Use outside this range can lead to material failure.
- Regular maintenance: Check the T-piece regularly for wear or corrosion and replace it if necessary. ©HybridSupply
- No modifications: Do not make any modifications to the T-piece as this may affect safety.
- Use only with compatible components: Ensure that all connected filling hoses and components meet the same specifications and are suitable for the intended operating pressure.
- Observe the environment: Avoid using the T-piece in environments with high temperatures, open flames or sources of sparks.
- Read the documentation: Follow the manufacturer's instructions and adhere to the applicable safety regulations for handling LPG systems.
©HybridSupply
Manufacturer contact information
Manufacturer:
HybridSupply GmbH
Roggenhorsterstr. 9b
23556 Lübeck, Germany
