- Product description

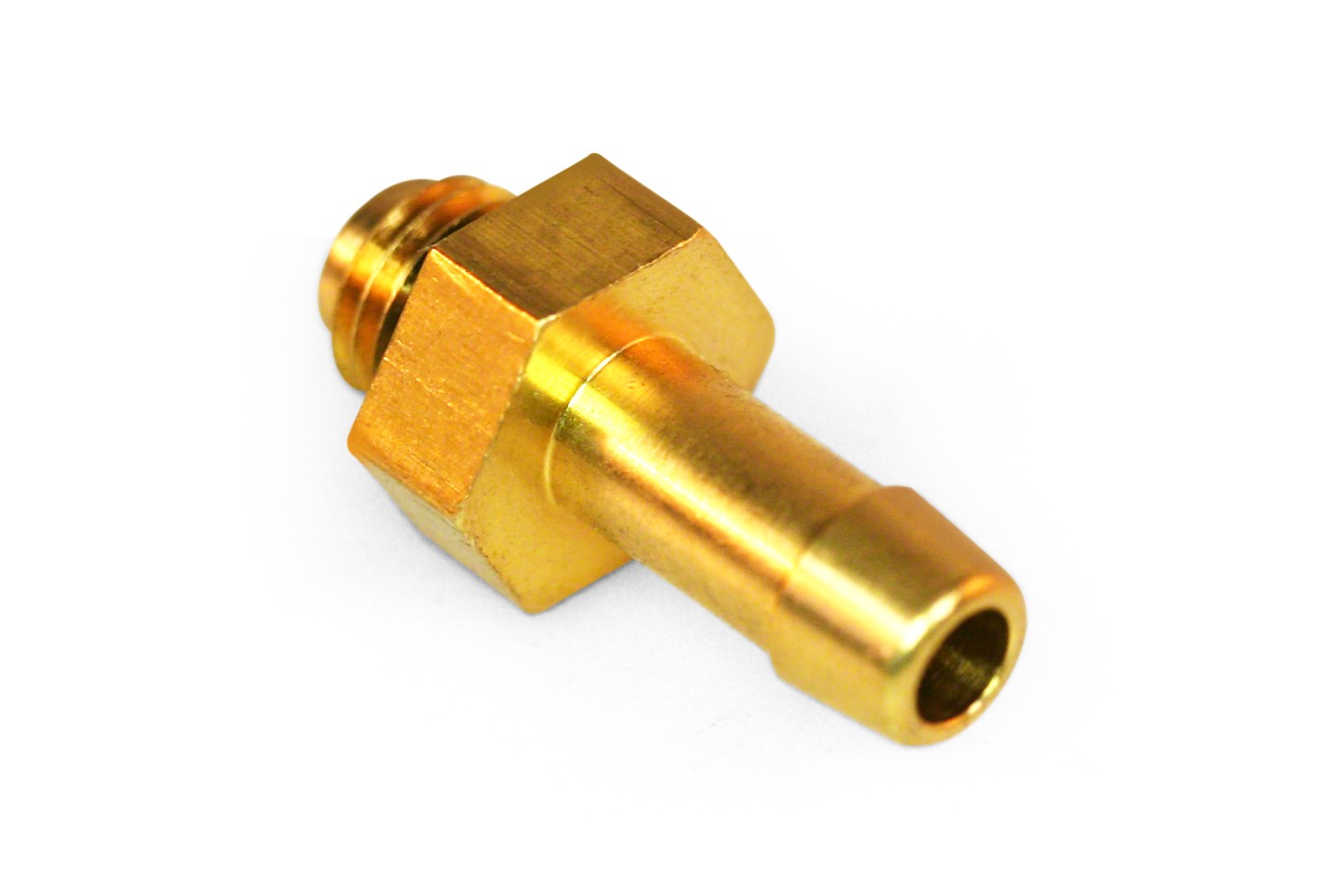

This injector nozzle is specially designed for IG1, IG3 and IG7 injectors from the Italian brand RAIL. It is screwed directly into the gas outlet of the injector and is used to precisely limit the amount of gas injected in LPG or CNG systems.
The nozzle is made of high-quality brass and has an M8 external thread for precise installation. The factory-fitted bore hole is 1.3 mm and can be drilled out individually if required. This allows flexible adaptation to different engine requirements, making the nozzle universally applicable. ©HybridSupply
The precise gas metering supports optimum engine tuning and reduces emissions and consumption. The nozzle is suitable for professional retrofit systems as well as for individual adaptations in the workshop.
Features:
- Material: Brass
- External thread: M8
- Bore hole: 1.3 mm (can be drilled out)
- Hose connection: 6 mm
- Total length: 26 mm
- Compatible with RAIL injectors IG1, IG3, IG7
- Installation location: Gas outlet of the injector
- Suitable for LPG and CNG applications
©HybridSupply
Safety instructions and warnings
Notes on safe use:
- Only use with RAIL injectors IG1, IG3 and IG7 - other types are not compatible.
- Installation may only be carried out by trained specialist personnel when the system is depressurised.
- Drilling to adjust the flow rate may only be carried out with a suitable precision tool.
- After modifications, a calibration and leak test of the system is mandatory.
- Not approved for liquid fuels or other media - only for LPG or CNG.
©HybridSupply
