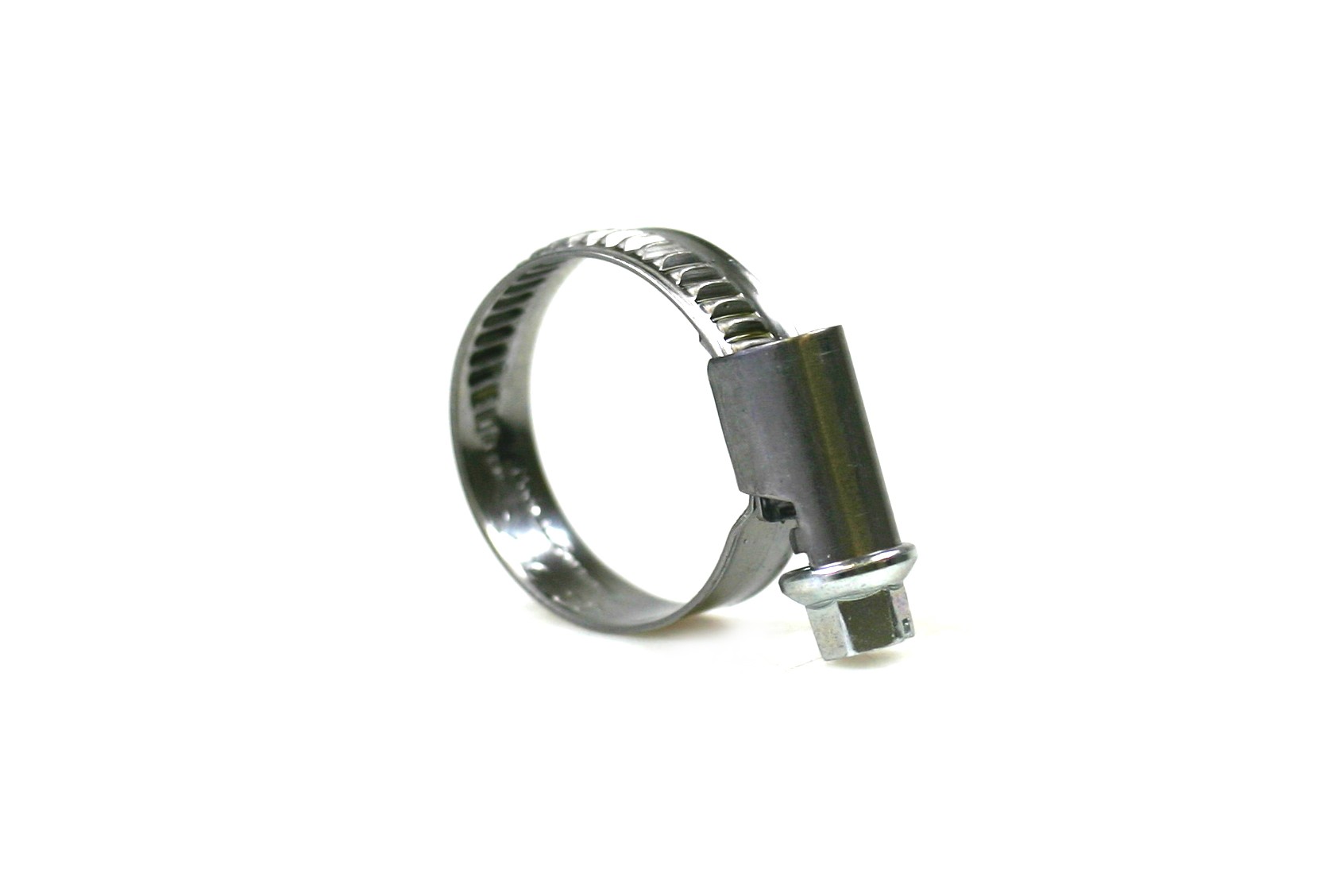

The OETIKER drive clamp is a technically a multi-band hose clamp with a very large clamping range. Hoses of different diameters can be securely connected in a single size.
Made by cold deformation, the worm drive clamp has a slightly spherical shape. The height of the threads decreases on both sides - the full thread cross section is in the middle.
Material W2:
Band and housing made of chrome steel
Screw 72 hours to red rust
| Clamping range | Bandwidth 9mm | Bandwidth 12mm |
|---|---|---|
| Static tightening torque | ||
| 8 - 22 mm | 2 + 0.5 Nm | |
| 16 - 160 mm | 3 + 0.5 Nm | |
| 16 - 390 mm | 5 + 0.5 Nm | |
| Static test torque | ||
| 8 - 22mm | max. 2.5 Nm | |
| 16 - 160mm | max. 4.5 Nm | |
| 16 - 390mm | max. 6.5 Nm |
