- Product description
Advantages:
- Reliable closing after cleaning or degreasing
- Reduced particle load thanks to degreasing
- Double packaging reduces the risk of contamination
- Uniform compression
- Tolerance compensation
- Improved traceability thanks to labelling
- Quick and easy assembly
Mechanical closure
As a mechanical connecting element, the lock holds the clamp geometry securely together. The clamp can be opened for radial assembly of customised variants.
Block locking
Block closure means that the two ear legs of an ear clamp touch each other during the applied closing force. The additional closing force applied from the moment a block closure occurs is absorbed by the block closure and is not transferred any further to the material to be clamped. If a statement is to be made about the effective closing force acting on the material to be clamped during closing, block closing should be avoided
Installation recommendations
The clamp ear is deformed with a constant clamp jaw force - a process that we refer to as "force-priority closing". This assembly method ensures a uniform and repeatable load on the connection with constant tensile stress on the clamp closure. When using this method to close the 167 clamps, deviating component tolerances are equalised so that the clamp applies a uniform radial force to the application.
radial force on the application. Variations in component tolerances are compensated for by varying the ear gap
(s'). Clamp assembly monitoring and process data logging are possible when using an
"Electronically controlled pneumatic clamp Oetiker ELK" in the assembly process.
Important!
- The ear height is naturally given. Do not influence the ear height, neither by changing the ear gap
nor by using integrated hold-down devices in assembly tools.
- Repeated closing of already closed clamps must be avoided
Technical specifications
Material: Stainless steel, material no. 1.4301/UNS S30400
Corrosion resistance according to DIN EN ISO 9227: ? 1000 h
Diameter range width × thickness
11.9 - 30.8 mm 7.0 × 0.6 mm
DualSlide technology: virtually frictionless clamp closure
Narrow band: concentrated clamping force transmission, less weight
360° StepLess®: even compression or surface pressure
Burr-free belt edges: reduced risk of damage to the material being clamped
Safety instructions and warnings

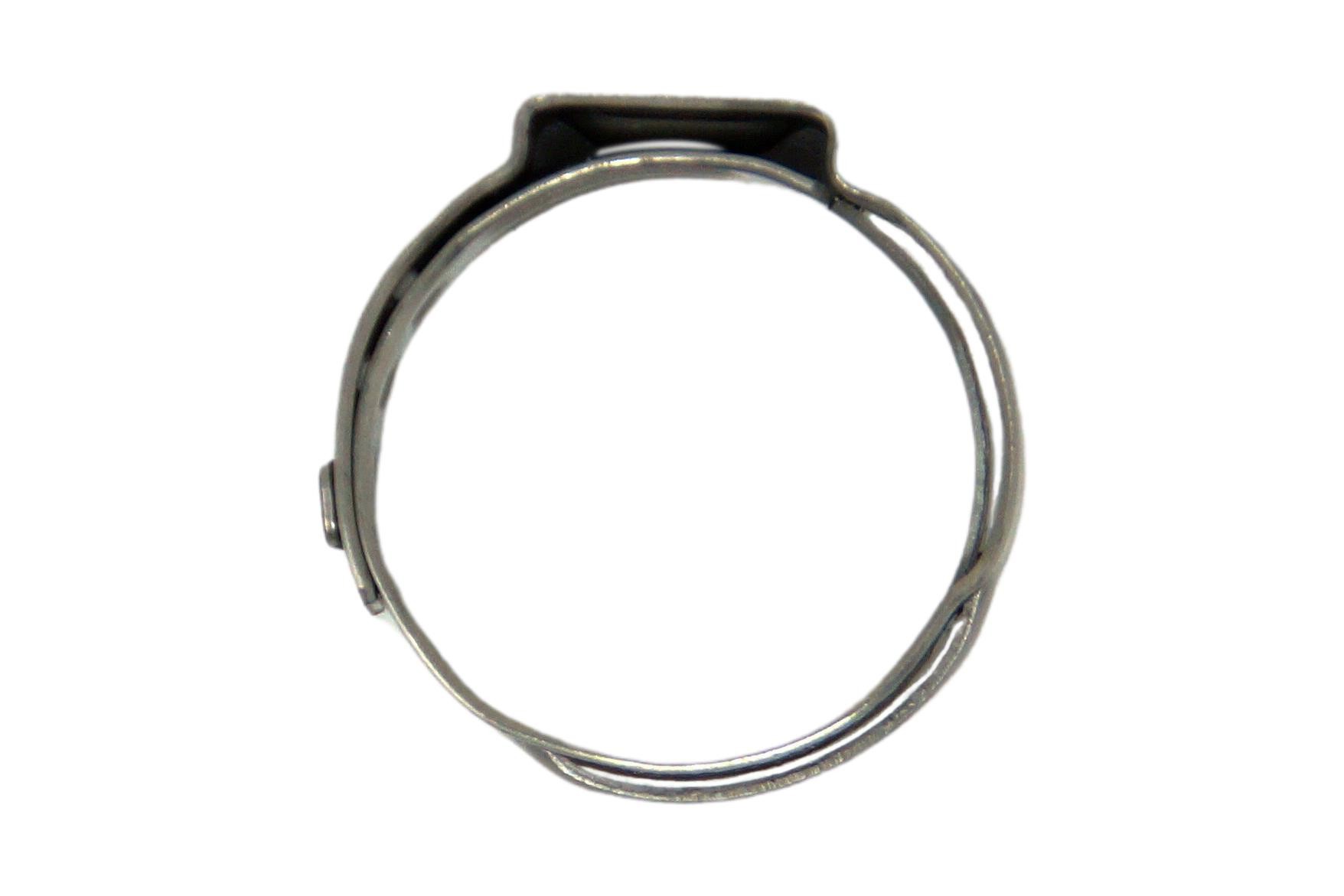

Safety instructions for Oetiker stepless ear clamp 10.8 - 13.3mm stainless steel
1. read all the manufacturer's instructions and safety information carefully before using the Oetiker stepless ear clamp 10.8 - 13.3mm stainless steel.
2. ensure that you have the necessary expertise and appropriate tools to install and use the ear clamp safely.
3. check the ear clamp for damage or signs of wear before use. Do not use the clamp if it is damaged.
4. ensure that the ear clamp is properly attached to the corresponding tube or hose. Do not use the clamp on unsuitable materials or in unsuitable applications. 5.
5. use appropriate protective equipment, such as gloves and safety goggles, while installing or using the ear clamp.
6 Ensure that the clamp is firmly seated on the pipe or hose and properly locked to prevent accidental loosening.
7. observe the maximum permissible nominal diameter of the ear clamp and ensure that it is suitable for the intended use
8. avoid excessive strain on the ear clamp to prevent damage or breakage.
9. keep the ear clamp away from children and store it in a dry place to prevent rusting.
These safety instructions serve as a general guide. Please refer to the official manufacturer's documentation for specific information on the Oetiker Infinite Ear Clamp 10.8 - 13.3mm Stainless.
