DREHMEISTER angle piece M10x1 / G1/4’ (removal multivalve 6 mm to 8 mm)

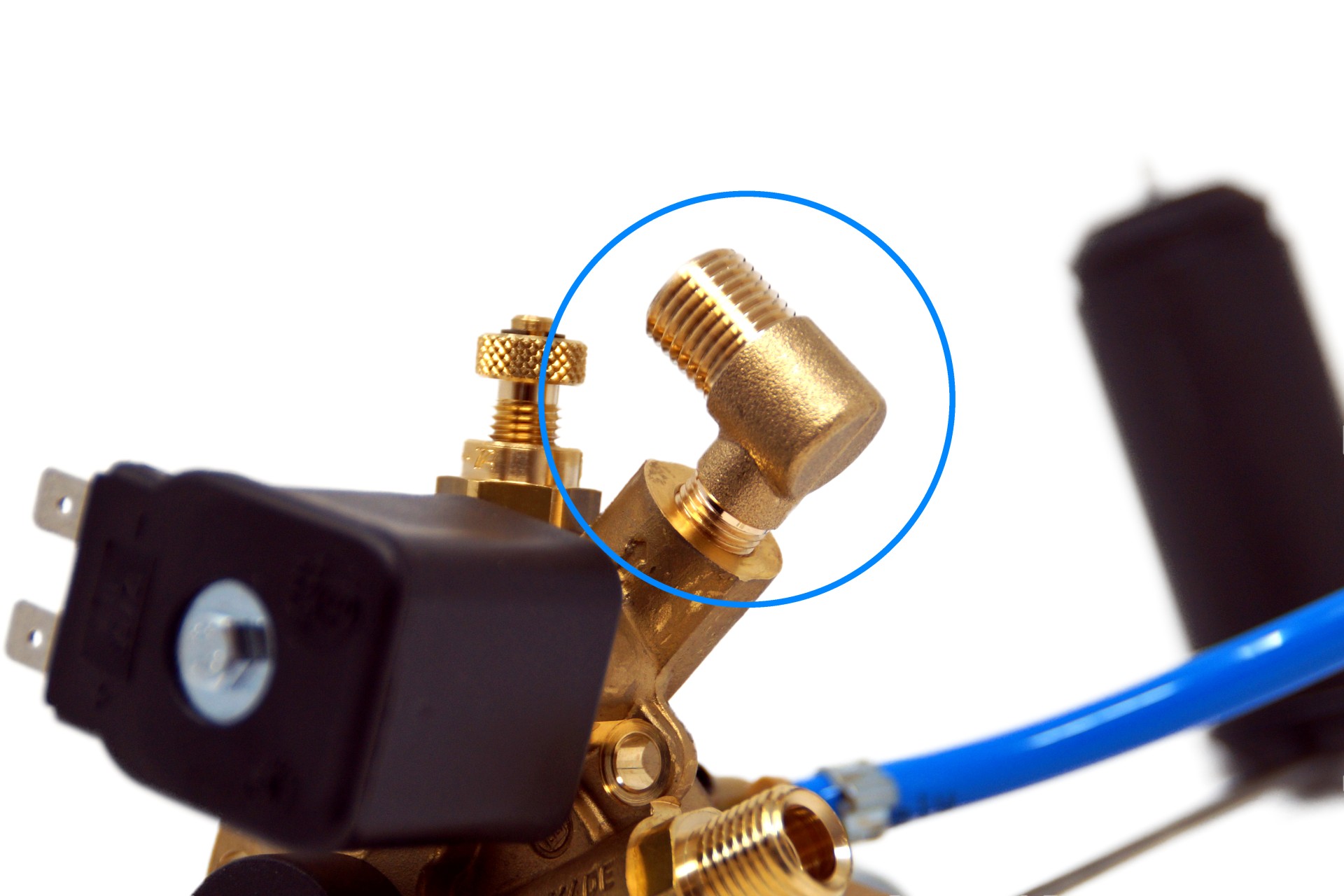

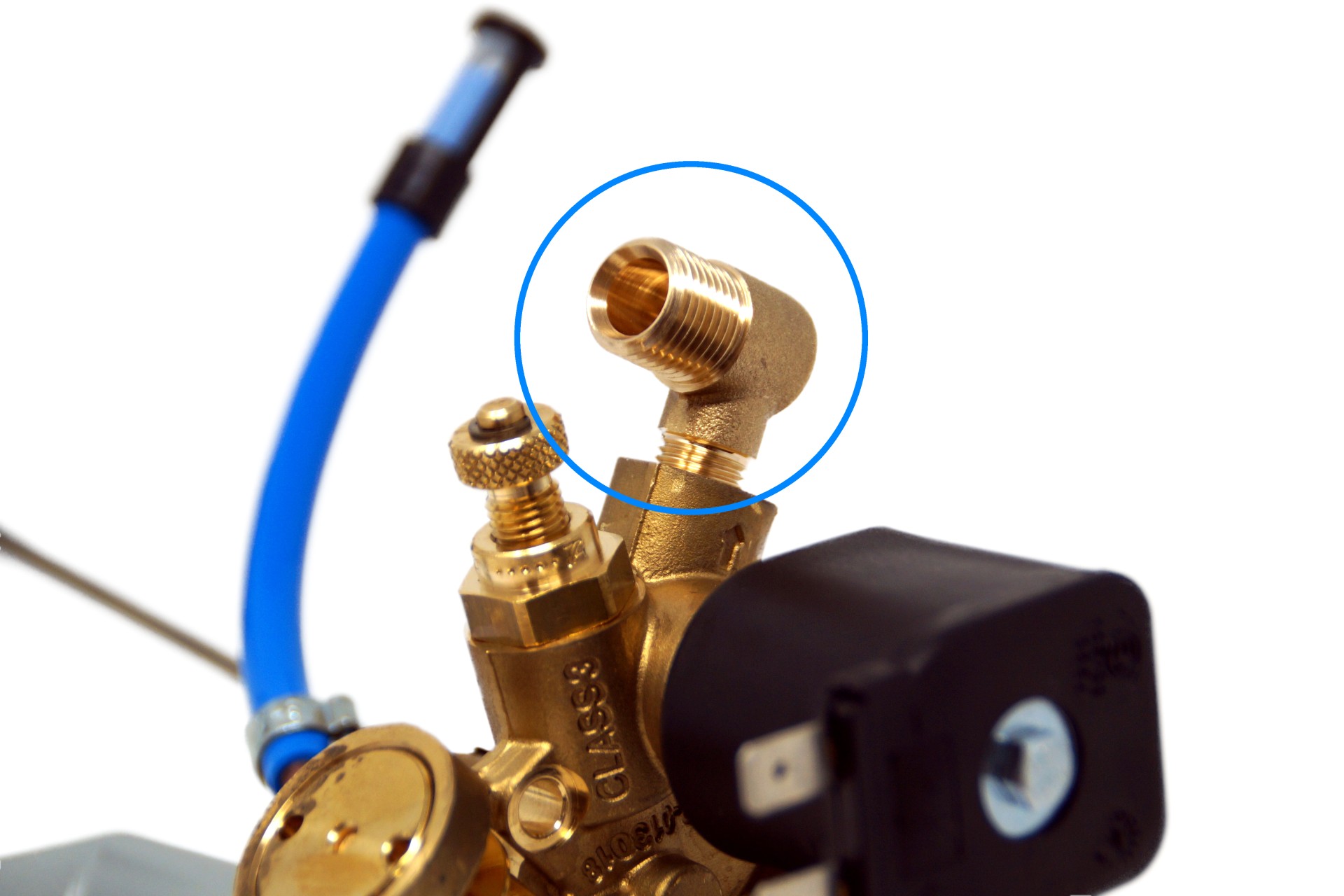

This elbow connection with M10x1 internal thread to G1/4" external thread is ideal as a compact transition for connecting 6 mm to 8 mm LPG copper lines. Thanks to its 90° design, the connection is particularly useful in tight spaces, for example on the LPG multivalve or when routing lines in the engine compartment.

The M10x1 connection enables connection to standard components with 6 mm connections for the copper line, while the G1/4" external thread allows the connection of larger pipe systems with an 8 mm diameter. This means the elbow can also be used as a reducer or transition within an LPG system.

Made from high-quality brass, the connection impresses with its robust and temperature-resistant design and reliable sealing in the high-pressure range.

Material: Brass
Connection 1: M10x1 female thread (for 6 mm copper pipe)
Connection 2: G1/4" external thread (for 8 mm copper pipe)
Design: 90° angle
Application: LPG pipe connection or transition 6 mm to 8 mm, especially where installation space is limited
Scope of delivery: 1x LPG elbow connection M10x1 to G1/4" - 90°
