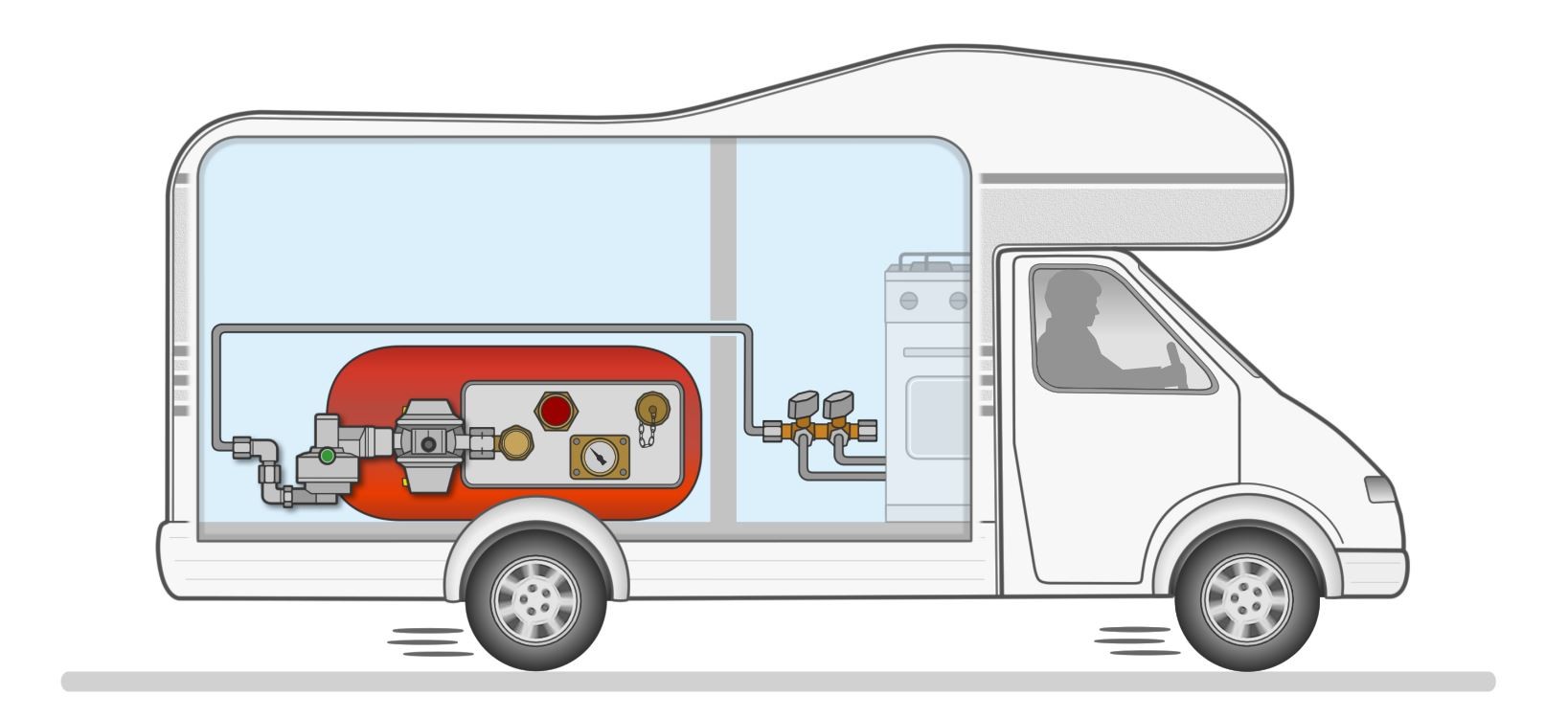

Safety gas pressure control system for the operation of fuel gas tanks incaravans and motor caravans while driving consisting of:
- Low pressure regulator with overpressure safety device S2SR (ÜDS)
- mechanical crash sensor and test device
Advantages and equipment:
- Heating while driving due to integrated mechanical crash sensor, which shuts off the gas passage in the event of an accident with a deceleration of 3.5 g ± 0.5 g acting directly on the release element. This corresponds to an impact speed of approx. 15 to 20 km/h on a fixed obstacle with a medium vehicle weight
- Test device for leak testing of the liquid gas system without dismantling the pressure regulating device
- Suitable for connection of an Eis-Ex
- Version with outlet connection RVS 10/ 8 mm
Conformity
- EC type examination according to GAR
Inlet:Komb.A
Output:RVS 10
Outlet pressure:30 mbar
Capacity:1,5 kg/h
Installation position:direct mounting on the Withdrawal valve of the rv propane tank
Installation angle:90
Crash sensor for gas use while driving:included
Maximum permissible pressure: PS 16 bar
Inlet: Komb.A
Outlet: RVS 10 mm
Outlet pressure: 30 mbar
Capacity: 1,5 kg/h
Installation position: direct mounting on the vapour gas tank
Installation angle: 90°
Crash sensor for gas use while driving: included
Maximum allowable pressure: PS 16 bar
