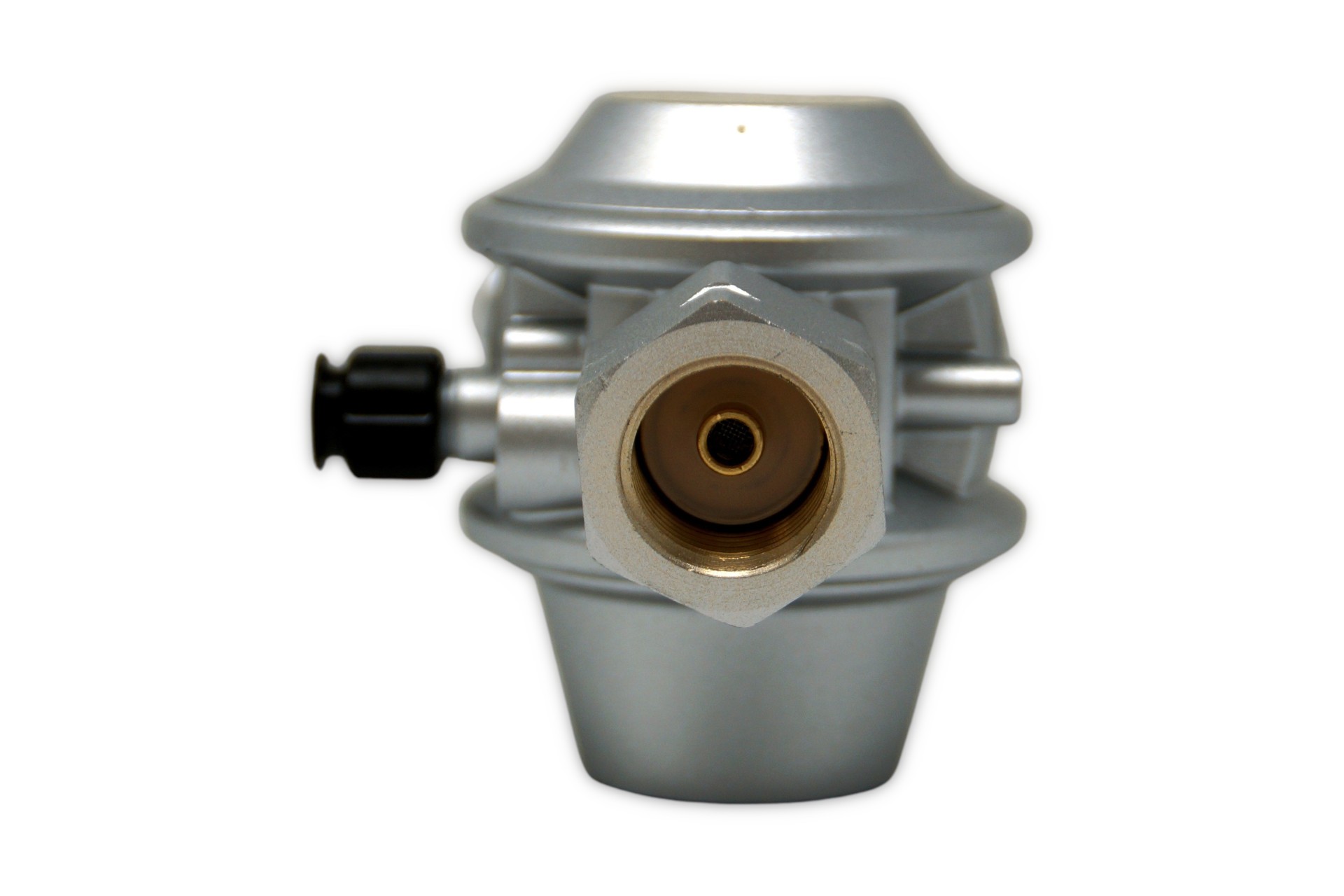

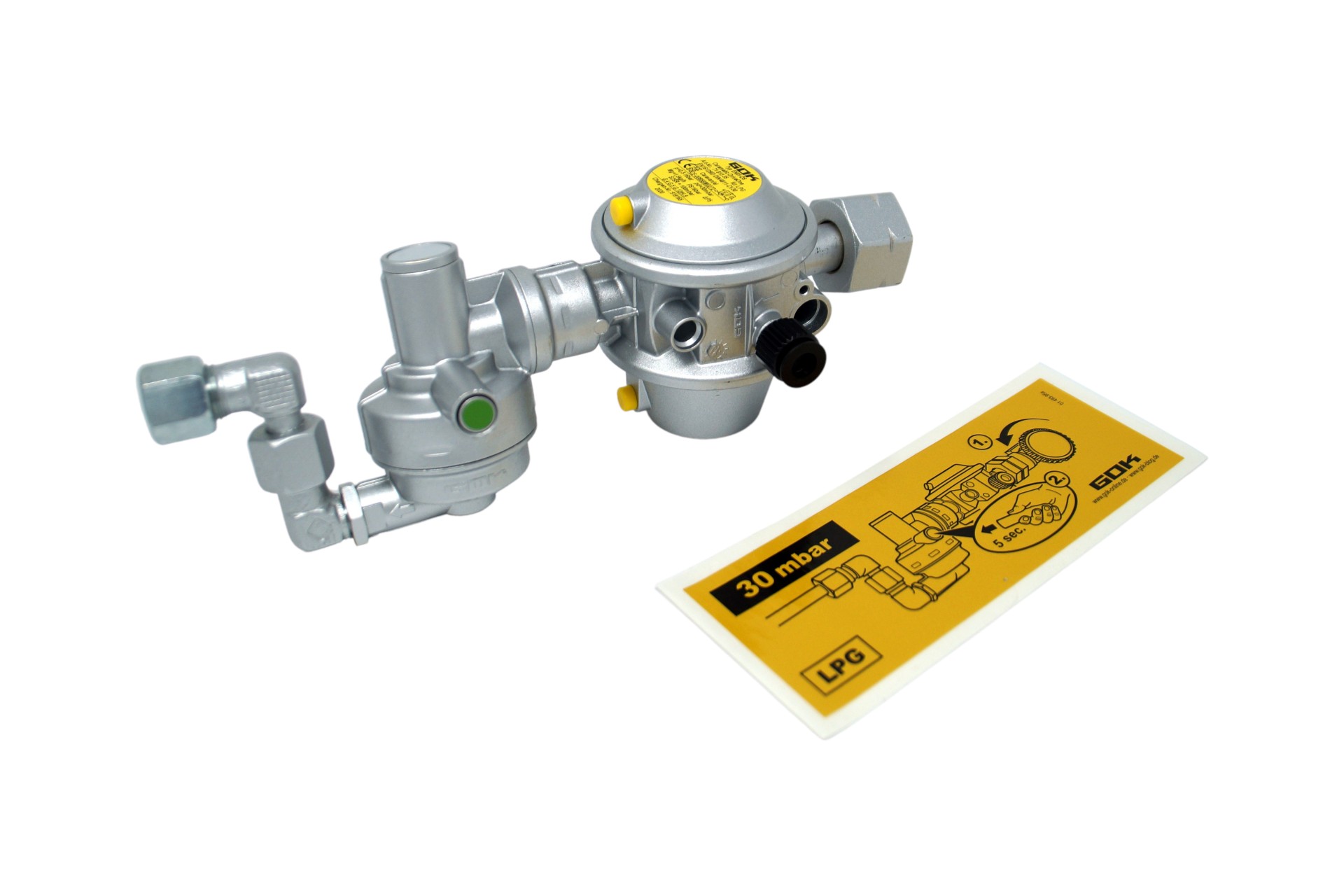

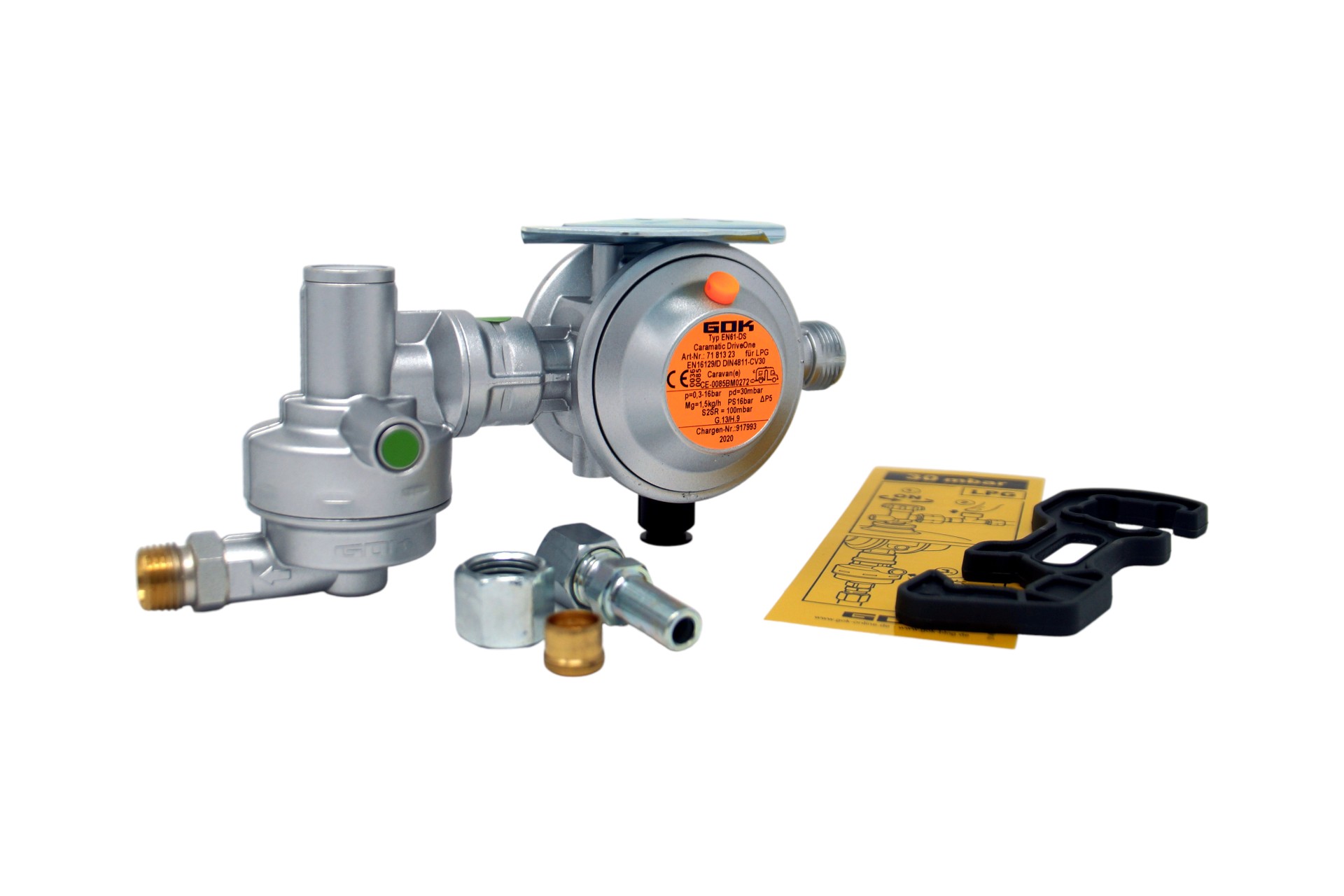

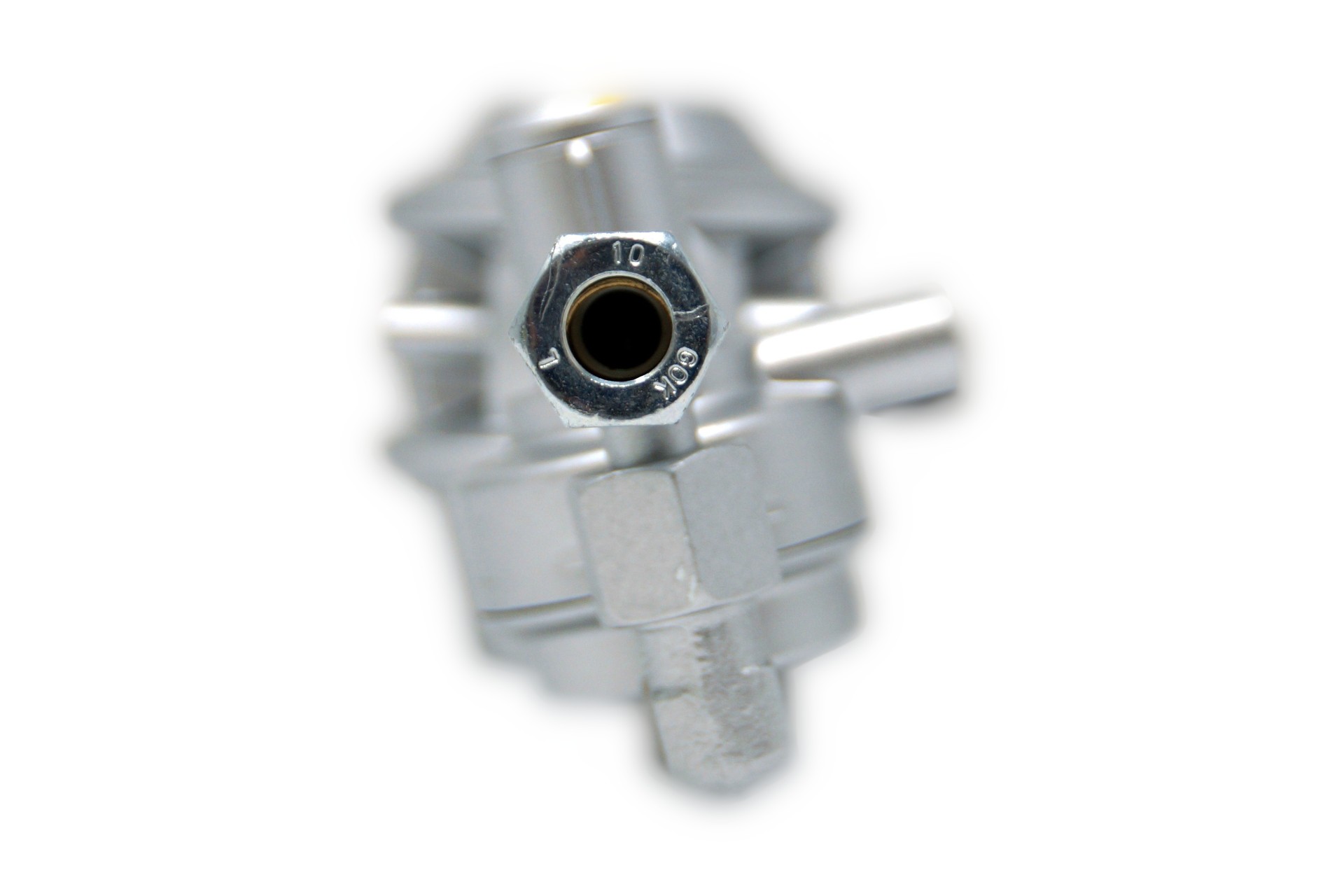

GOK Caramatic DriveOne CS 30 mbar 1.5 kg/h - 105° position

Safety gas pressure regulation system for operating fuel gas tanks incaravans and motor caravans while travelling, consisting of

- Low pressure regulator with overpressure safety device S2SR (ÜDS)
- mechanical crash sensor and test device

Advantages and features:

- Heating while travelling due to integrated mechanical crash sensor, which shuts off the gas flow in the event of an accident with a deceleration of 3.5 g ± 0.5 g acting directly on the trigger element, this corresponds to an impact speed of approx. 15 to 20 km/h on a solid obstacle with an average vehicle weight

- Test device for leak testing the LPG system without dismantling the pressure regulating device

- Suitable for connecting an Eis-Ex

- Version with RVS 10/ 8 mm outlet connection

Conformity

- EC type examination according to GAR

Inlet:Combi A
Outlet:RVS 10

Outlet pressure:30 mbar
Output:1.5 kg/h

Installation position:Direct mounting on the RV propane tank's Withdrawal valve
Installation angle:105°

Crash sensor for gas utilisation while driving:included
Maximum permissible pressure: PS 16 bar

Operating instructions Caramatic DriveOne Tank version - German / English / French / Dutch / Italian / Spanish / Polish / Russian
