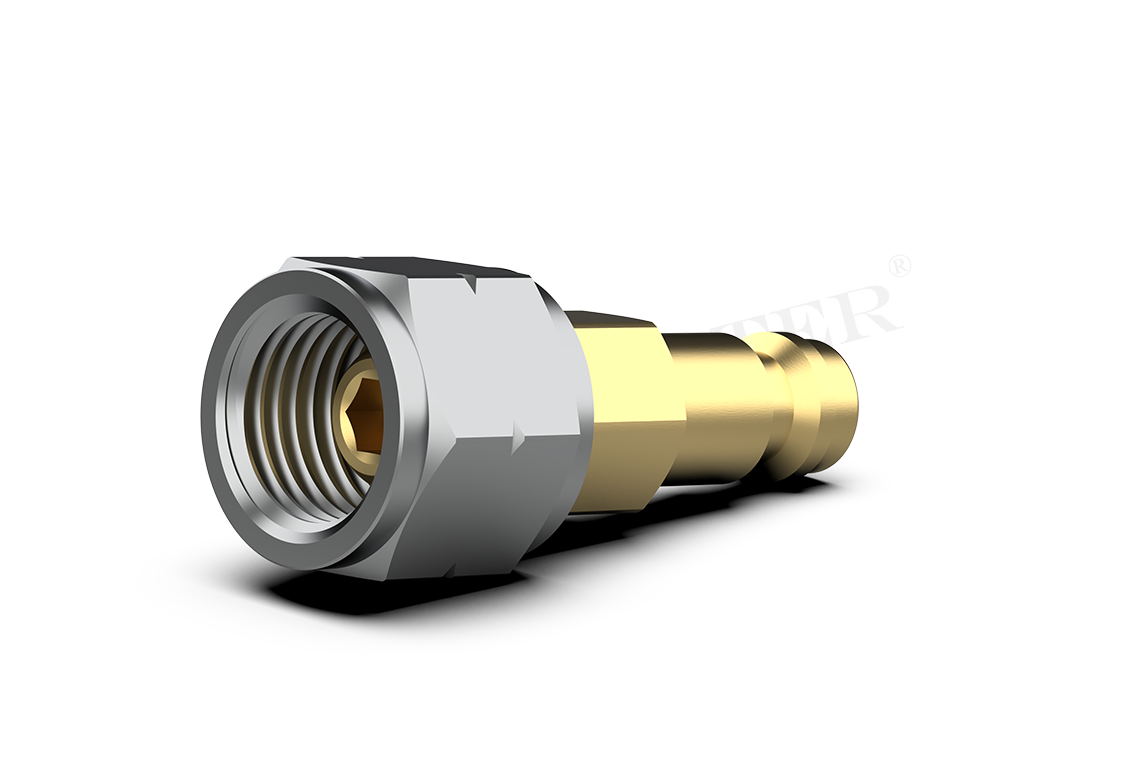

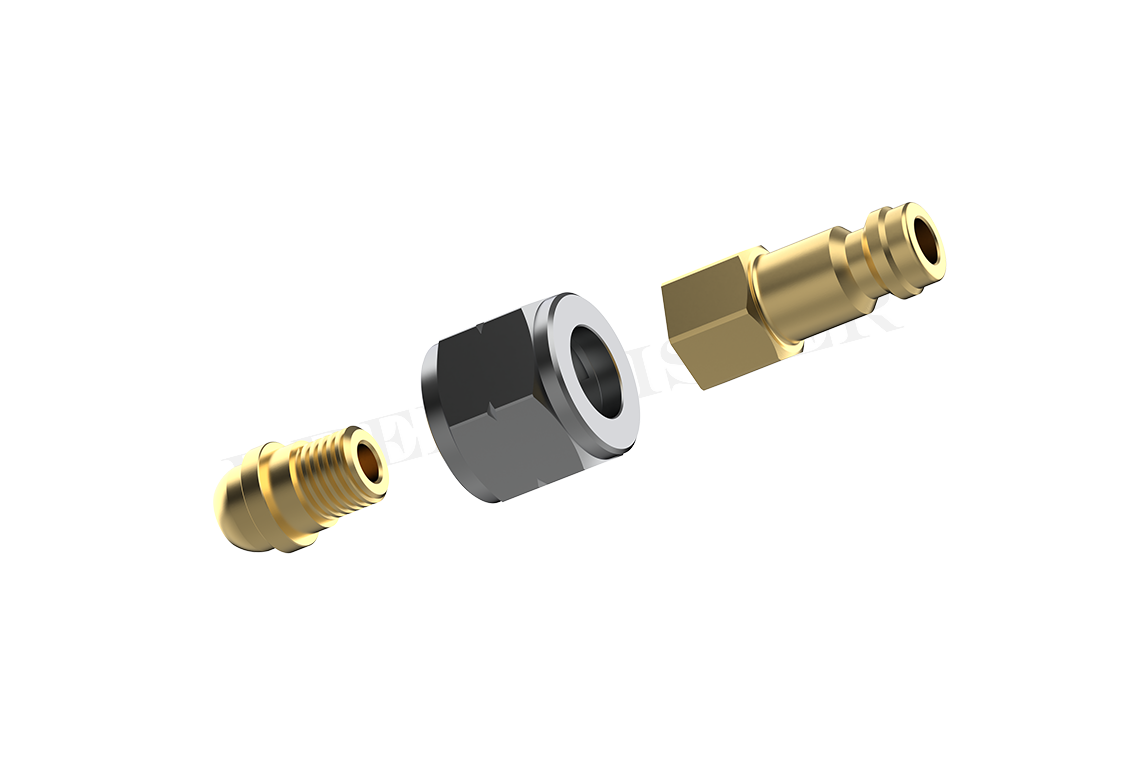

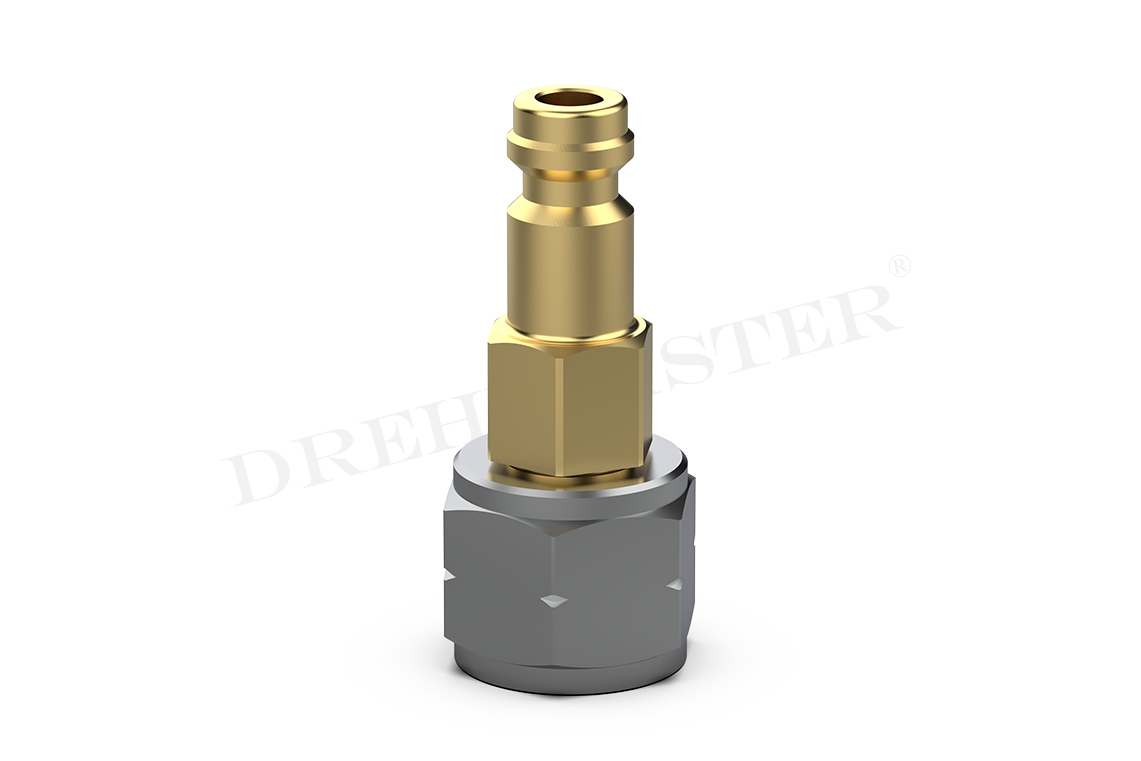

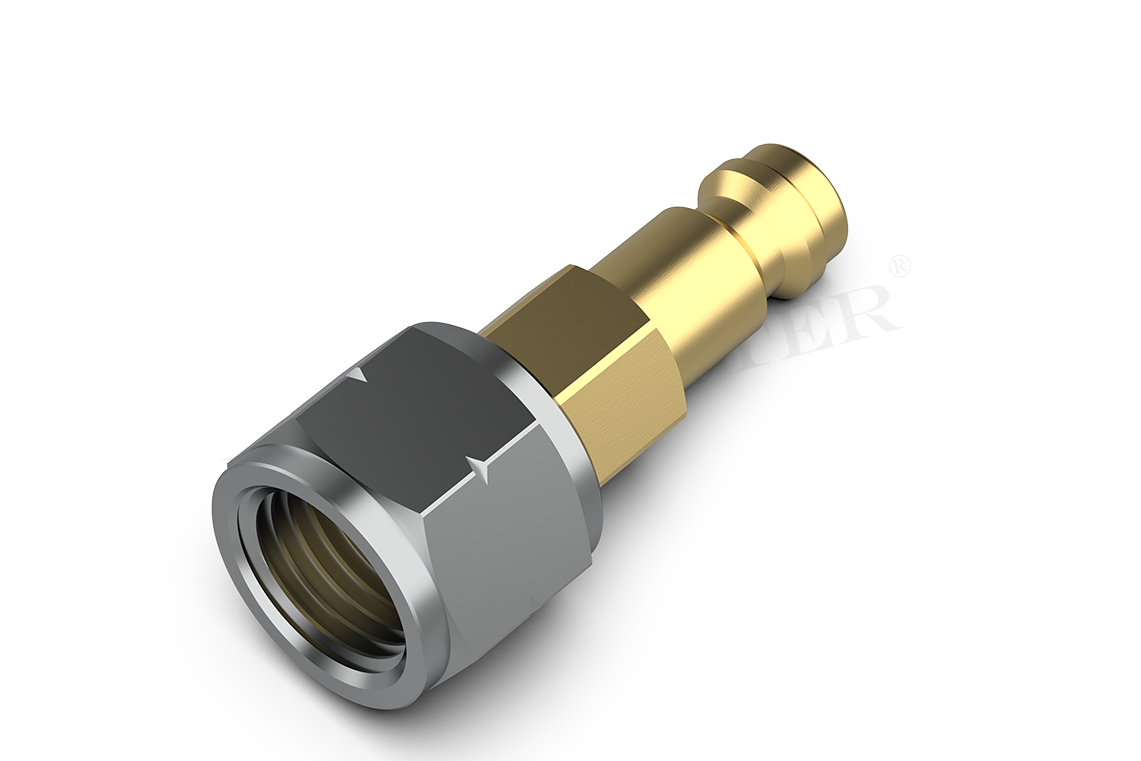

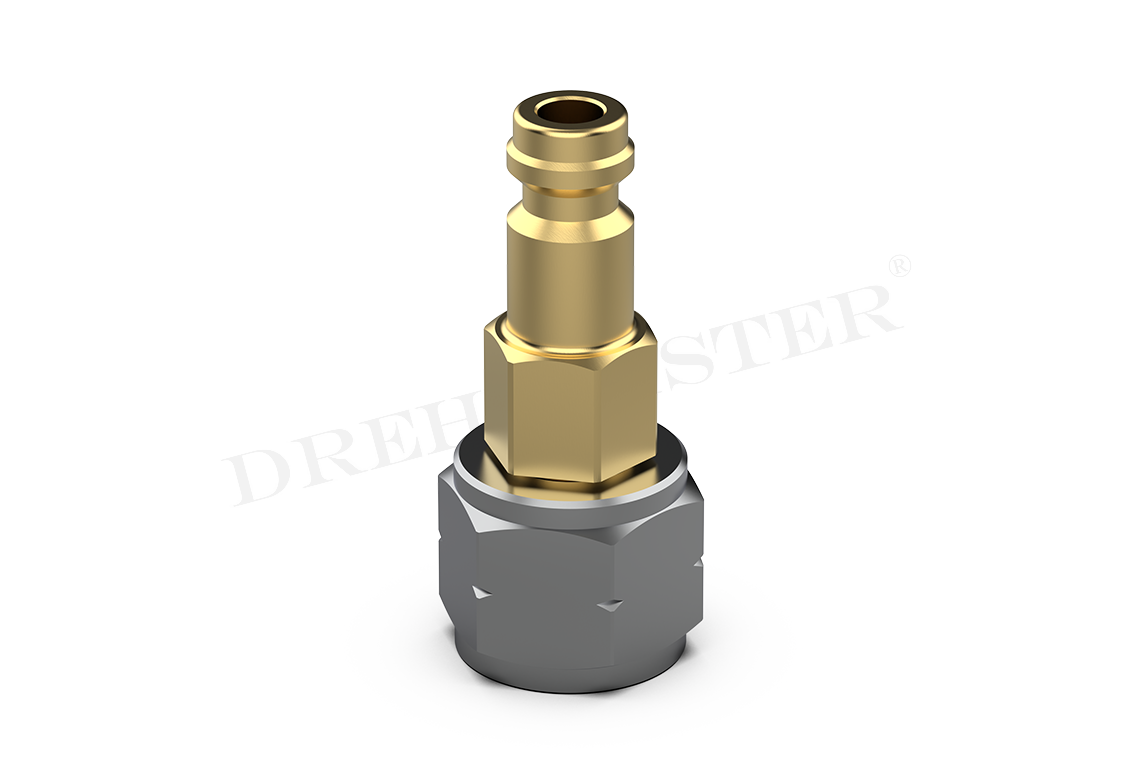

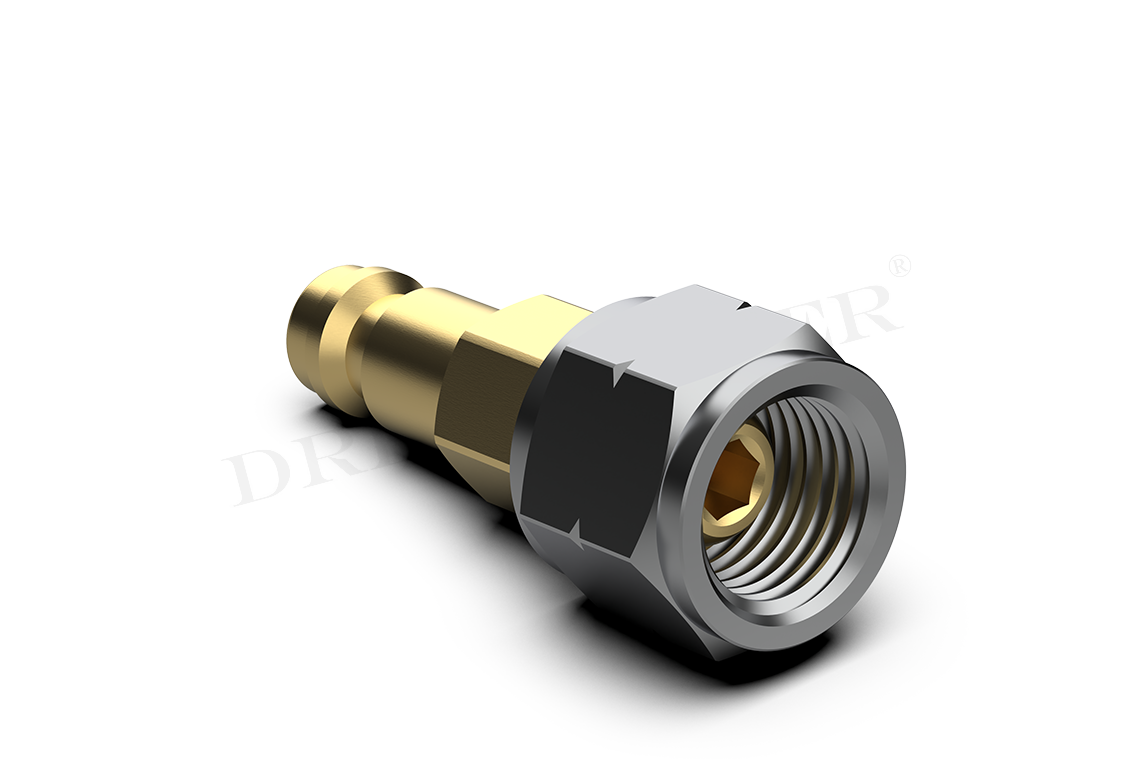

DREHMEISTER LPG transfer nozzle for small propane cylinders, craftsman's cylinder W 21.8 x G 3/8 LH

DREHMEISTER transfer nozzle for refilling small propane cylinders

The DREHMEISTER refilling nozzle enables safe and economical refilling of small propane cylinders (3 kg, 5 kg or 11 kg), also known as tradesmen's or roofer's cylinders, from larger propane cylinders. Ideally suited for tradesman or roofer cylinders, this accessory offers a simple solution for home use. ©HybridSupply

Manufactured from high quality brass for maximum durability and resistance to mechanical stress. The precisely manufactured threaded connections ensure a tight and secure connection during the decanting process. ©HybridSupply

Product details:

• Nut bottle connection: Profile nut with thread W 21.80 x 1/14" left, in accordance with DIN 477-1
• Connection small bottle: Wing nut with thread G 3/8" left, according to DIN 477-1 ©HybridSupply
• Material: Brass (pressure-resistant and corrosion-resistant)
• Application: For transferring propane gas between larger and smaller cylinders ©HybridSupply
• Special features: Compact design, simple and quick filling process, no additional pump required ©HybridSupply

Handling:

1. Make the connection - connect the large propane cylinder and your small cylinder with the transfer nozzle
2. As soon as all connections are tight and sealed, open the venting screw on the small cylinder
3. Turn the large propane cylinder upside down and secure it against tipping over
4. Open the valves on both cylinders. As soon as gas escapes from the vent screw, close the valves and the vent screw again
5. The filling process is now complete
