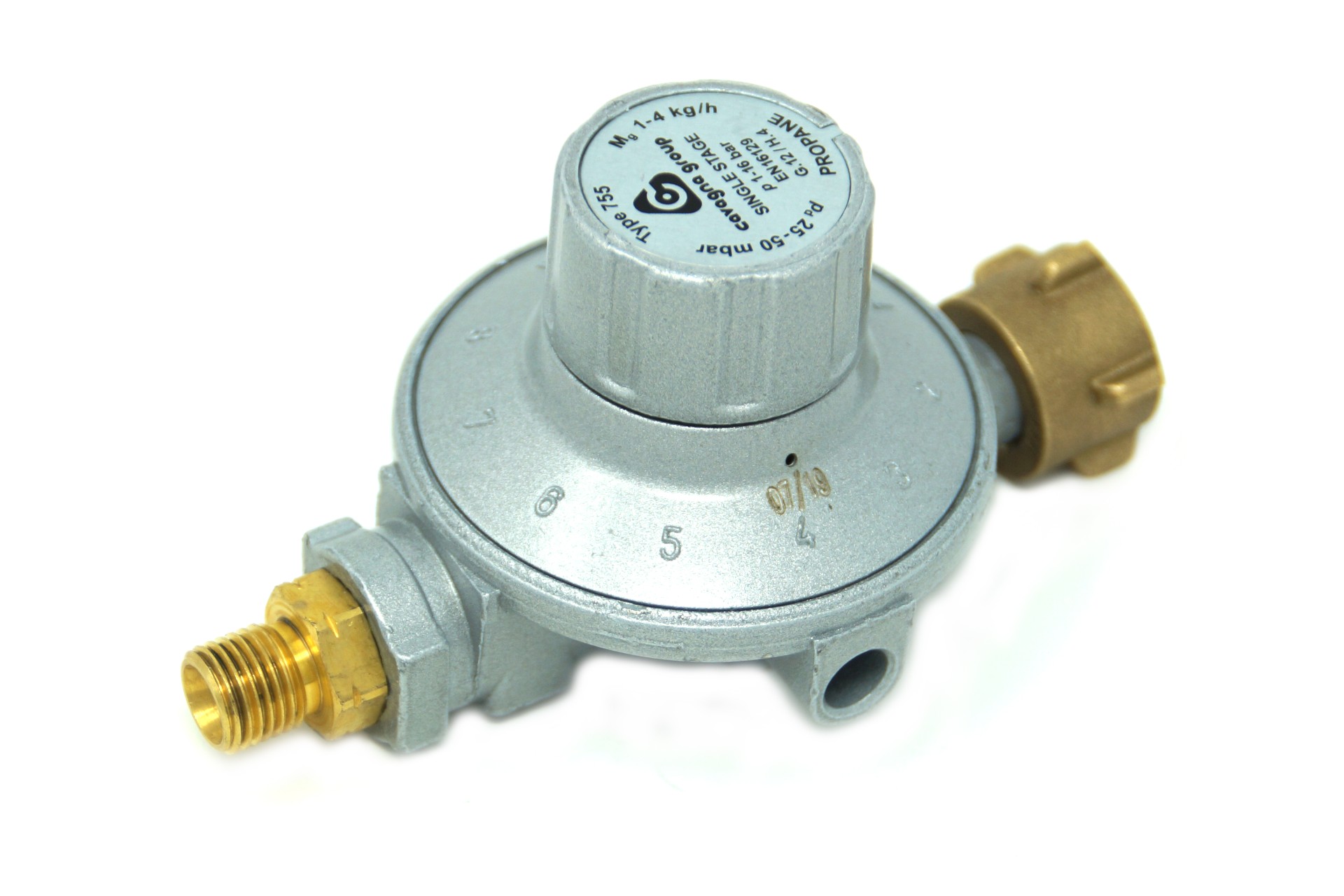

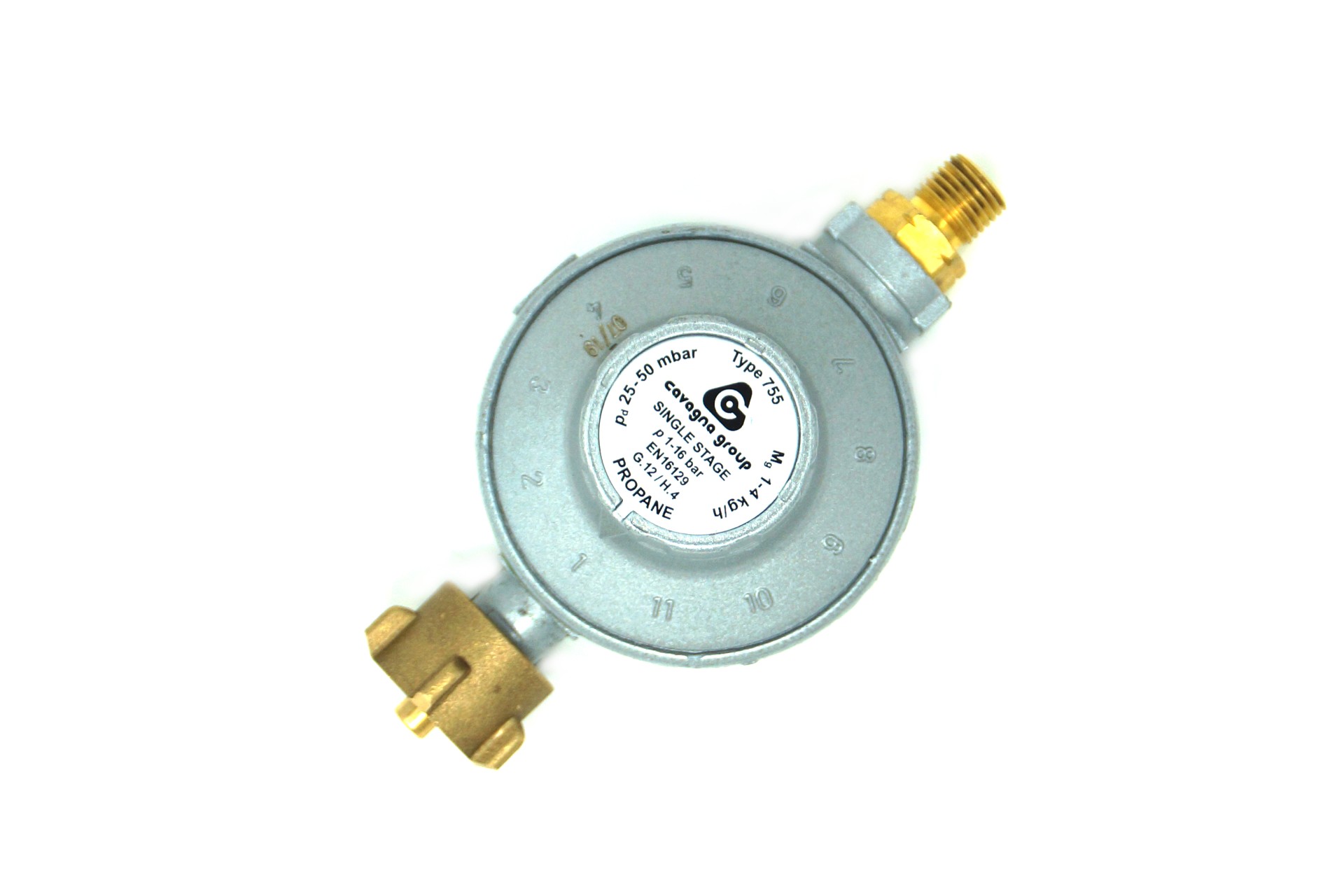

Cavagna low pressure regulator type 755 is adjustable in 11steps between 25-50and 50-200 mbar andis suitable for any type of LPG (propane/butane mixing ratio). The pressure regulator isdesignedexclusively foroutdooruse.
It may only be used outdoors and for cylinders with a maximum filling weight of 14 kg.
Scope of delivery:
- Cavagna low pressure regulator type 755
- Safety instructions in English
- Operating instructions in English
Check the nominal pressure of your appliance.
Technical data
Capacity: 1-4 kg/h
Connection: 3 / 5 / 11kg - KLF small cylinder connection G.12
Outlet: G1/4'' left
Approval: EN EN 16129
Outlet pressure: 25-200 mbar (adjustable)
Safety instructions and warnings
Safety instructions for Cavagna gas regulator type 755 - G.12 ->G 1/4 LH adjustable in 11 stages
1 Always switch off the power supply before installing or maintaining the gas regulator.
2. ensure that the gas regulator is suitable for the specific application and requirements.
3. regularly check the condition of the gas regulator, in particular for damage or wear.
4. follow the installation and maintenance instructions provided by the manufacturer.
5. do not expose the gas regulator to excessive heat or flames.
6. do not use the gas regulator in potentially explosive atmospheres or near flammable materials.
7. before using the gas regulator, check that all connections are correctly and firmly tightened.
8 Ensure that the gas regulator is properly connected to the gas supply system.
9. use only approved pressure regulator accessories and spare parts.
10. keep the gas regulator clean and free from dirt or contamination.
11. if you have any problems or uncertainties regarding the gas regulator, contact the manufacturer or an authorised specialist.
